Home :: AOM Acousto-Optic Modulator :: 1310nm Fiber Coupled AOM :: 1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

1310nm Fiber Coupled AOM

Product 2/4

Return to the Product List

1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

larger image

Starting at: $1,334.00

Please Choose:

Fiber Type

Drive

Add to Cart:

1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

[Applications]
Optical switch
Laser wavelength shift

[Note]
Lead Time: 3~4 weeks

[Specifications]

Parameter	Unit	Min	Max	Typ.	Remarks
Material				TeO²
Wavelength	nm			1310
Average Power Handling	W		0.5
Peak(pulse) Power Handling	kW		0.5
Ultrasonic Velocity	m/s			4200
Insertion Loss	dB		5
Polarized Extinction Ratio (PER)	dB	18
ER(1st order ON/OFF)	dB	60
Return Loss (RF ON)	dB	40
Rising/Falling Time	ns		10
Center Frequency	MHz			200
Frequency Shift	MHz			+200	-200MHz customizable
Radio Frequency Power	W			2.5
Voltage Standing Wave Ratio				1.2:1
Input Resistance	Ω			50
Device Interface				SMA
Fiber Type		SM fiber / PM fiber
Fiber Length	m			1
Fiber Interface				FC/APC
Operating Temperature	℃			-20~+60
Storage Temperature	℃			-30~+70

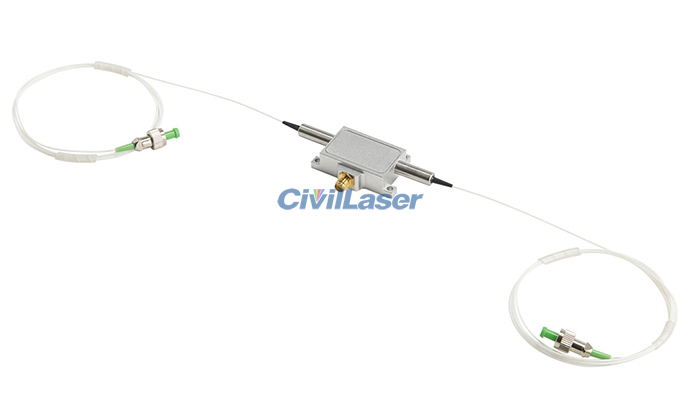

fiber coupled AOM

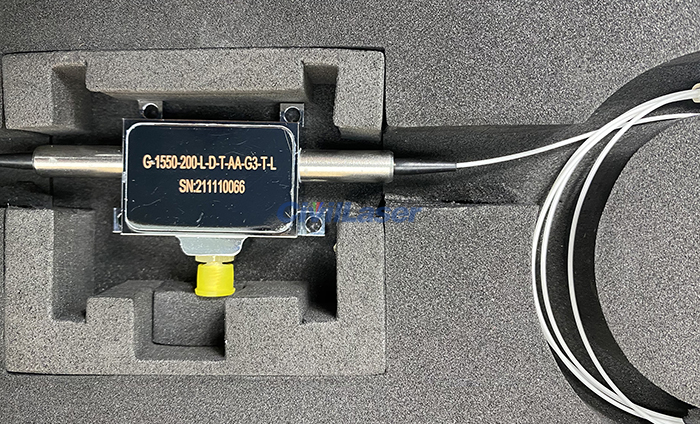

1550nm fiber coupled AOM

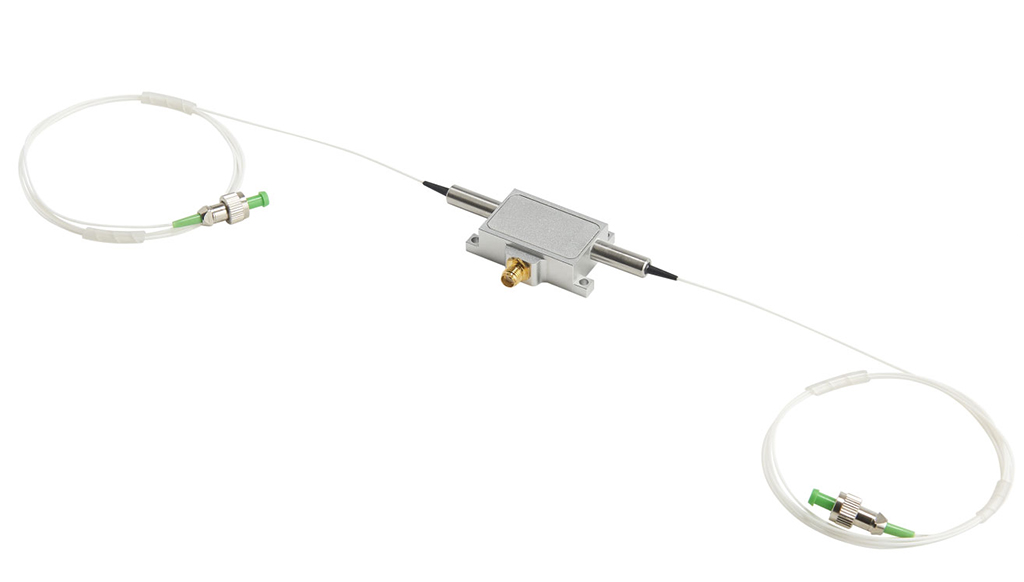

fiber coupled AOM

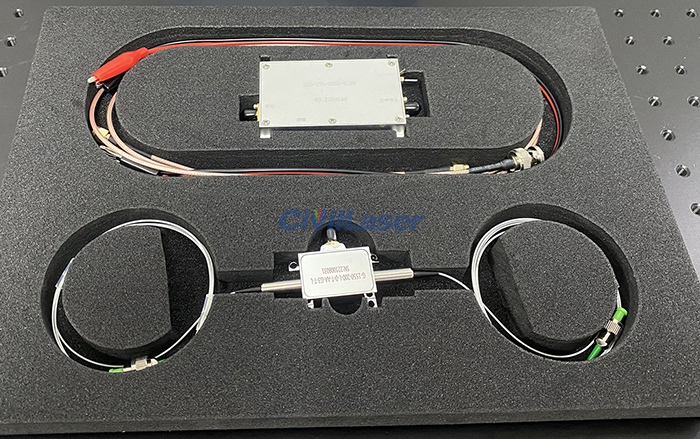

fiber coupled AOM

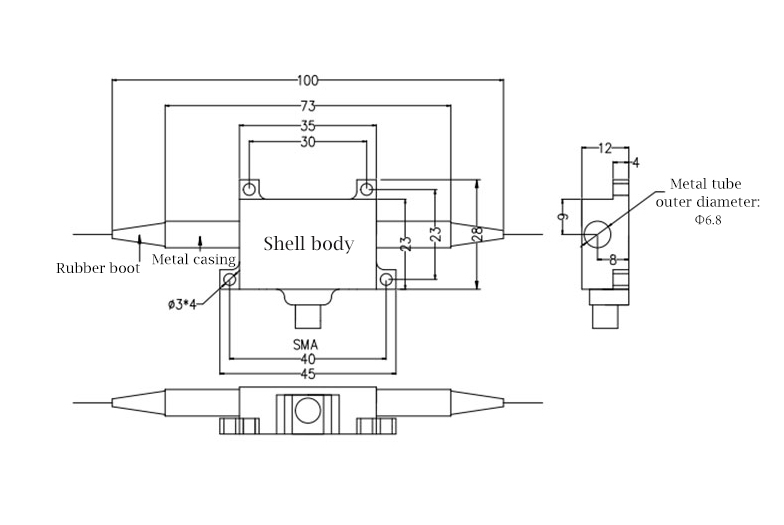

fiber coupled AOM

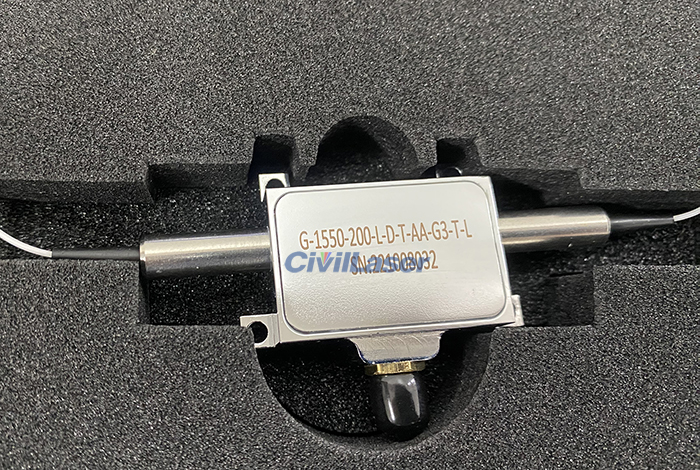

fiber coupled AOM

Additional Images

larger image

1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

larger image

larger image

1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM

larger image

Similar products

1310nm 150MHz 500mW IR Optical Modulator SM/PM Fiber Coupled AOM
$1,334.00
1310nm 200MHz IR Fiber Coupled Acousto-optic Modulator 10ns Rising Time AOM
$1,334.00
1310nm 80MHz 500mW IR AOM Fiber Coupled Acousto-optic Modulator
$1,112.00

1310nm 40MHz AOM SM/PM Optical Fiber Coupled Acousto-optic Modulator
$1,334.00
