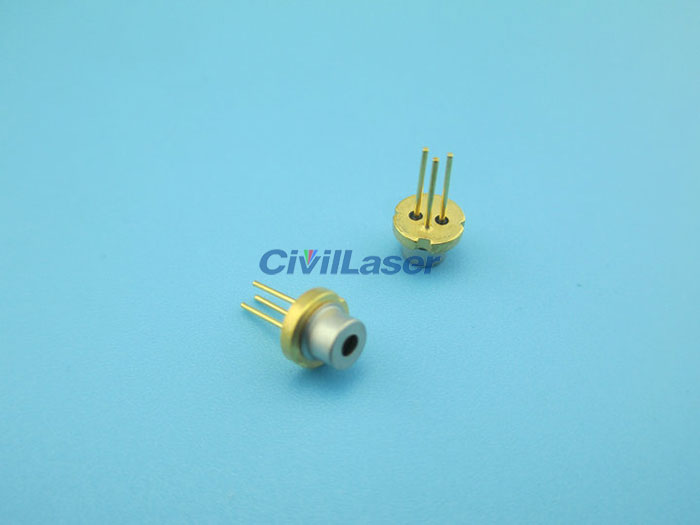

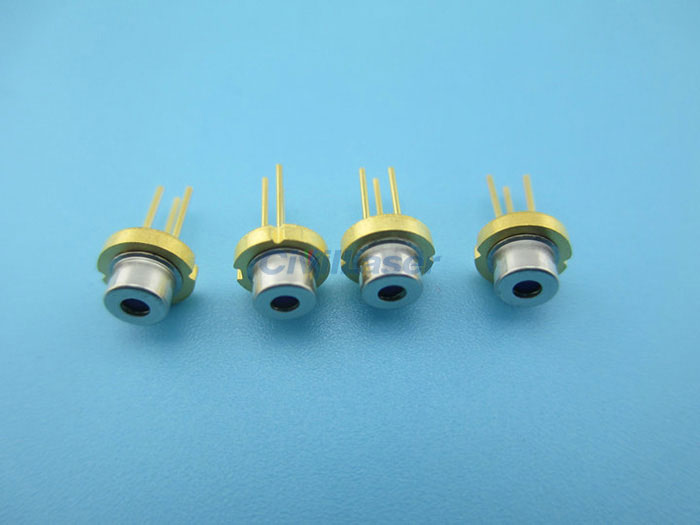

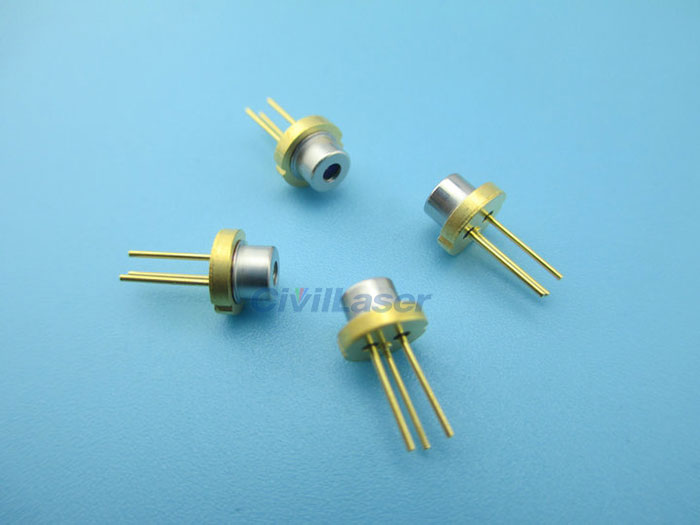

635nm 10mW QSI LD QL63F5SX R1 Red Laser Diode TO-18

635nm 10mW QSI LD QL63F5SX R1 Red Laser Diode TO-18

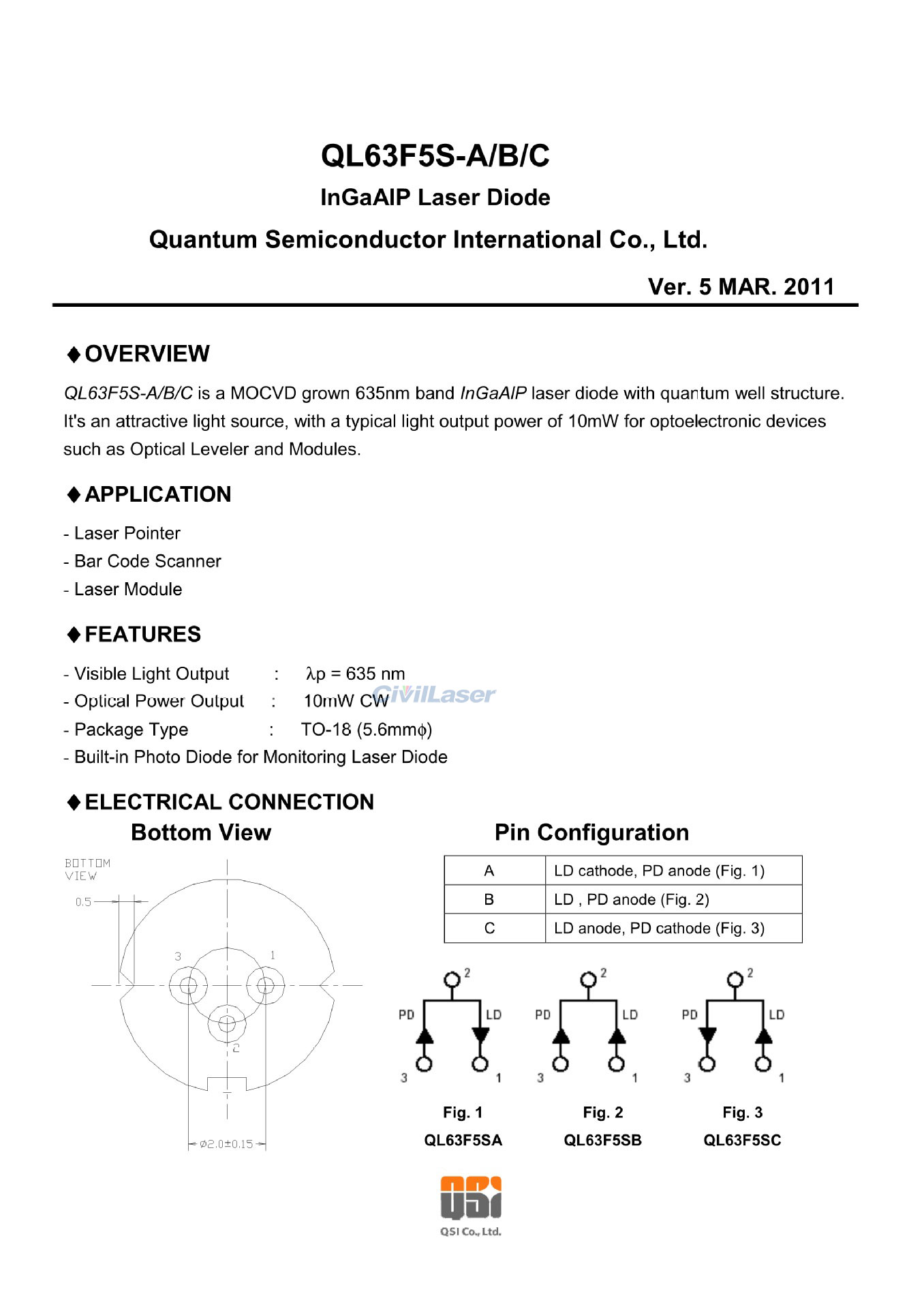

 [Features]
Visible light output:635nm
Optical output power :10mW CW

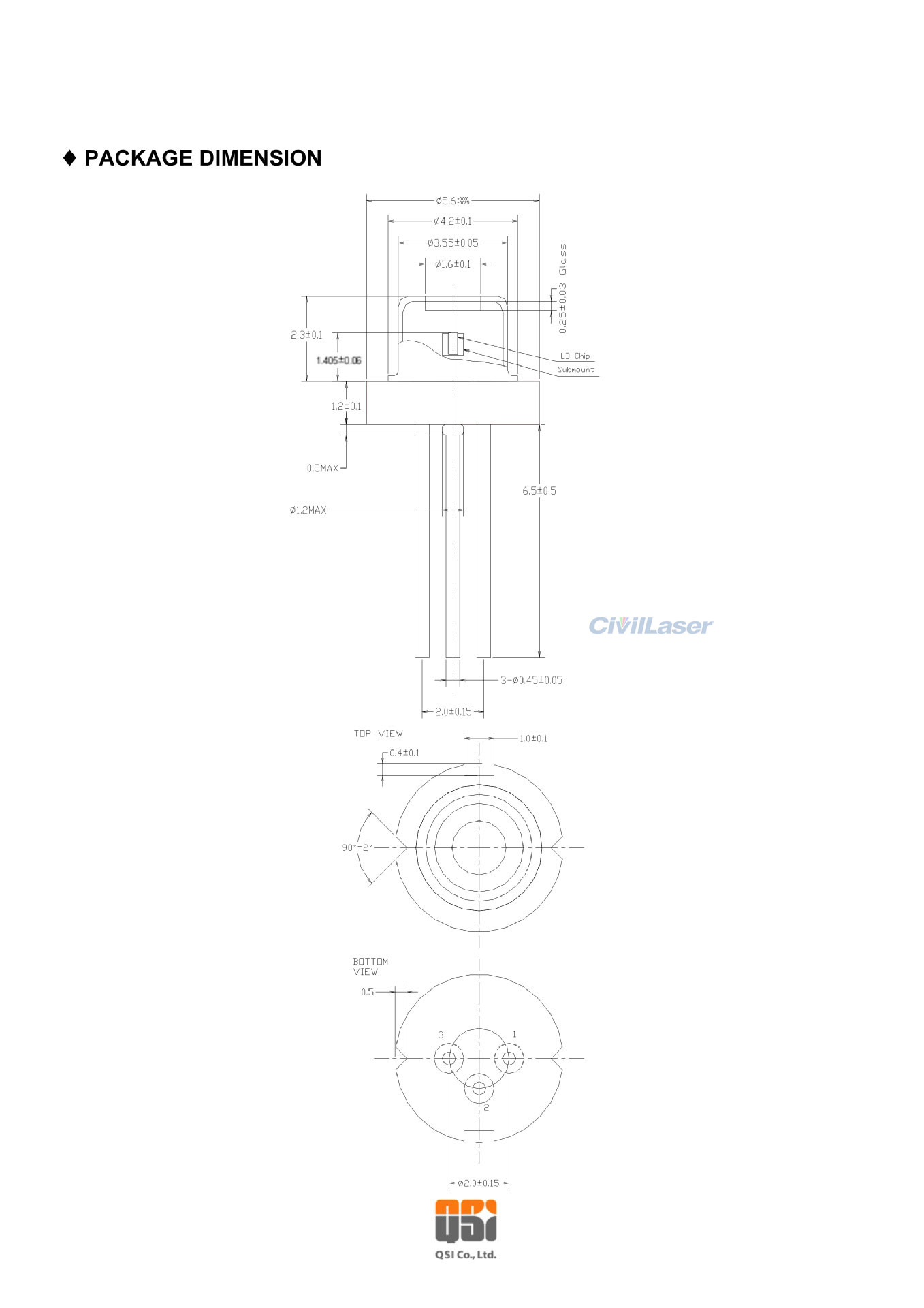

Package type:TO-18
Built-in photo diode for monitoring laser diode

[Application]
Laser Pointer
Bar Code Scanner
Laser Module

[Specifications]
Type:QL63F5SX R1
Output Wavelength:635nm
Output Power:10mW
Optical Output Power:12mW
Laser Diode Reverse Voltage:2V
Photo Diode Reverse Voltage:30V
Storage Temperature:-40~85℃
Operating Case Temperature: -10~50℃

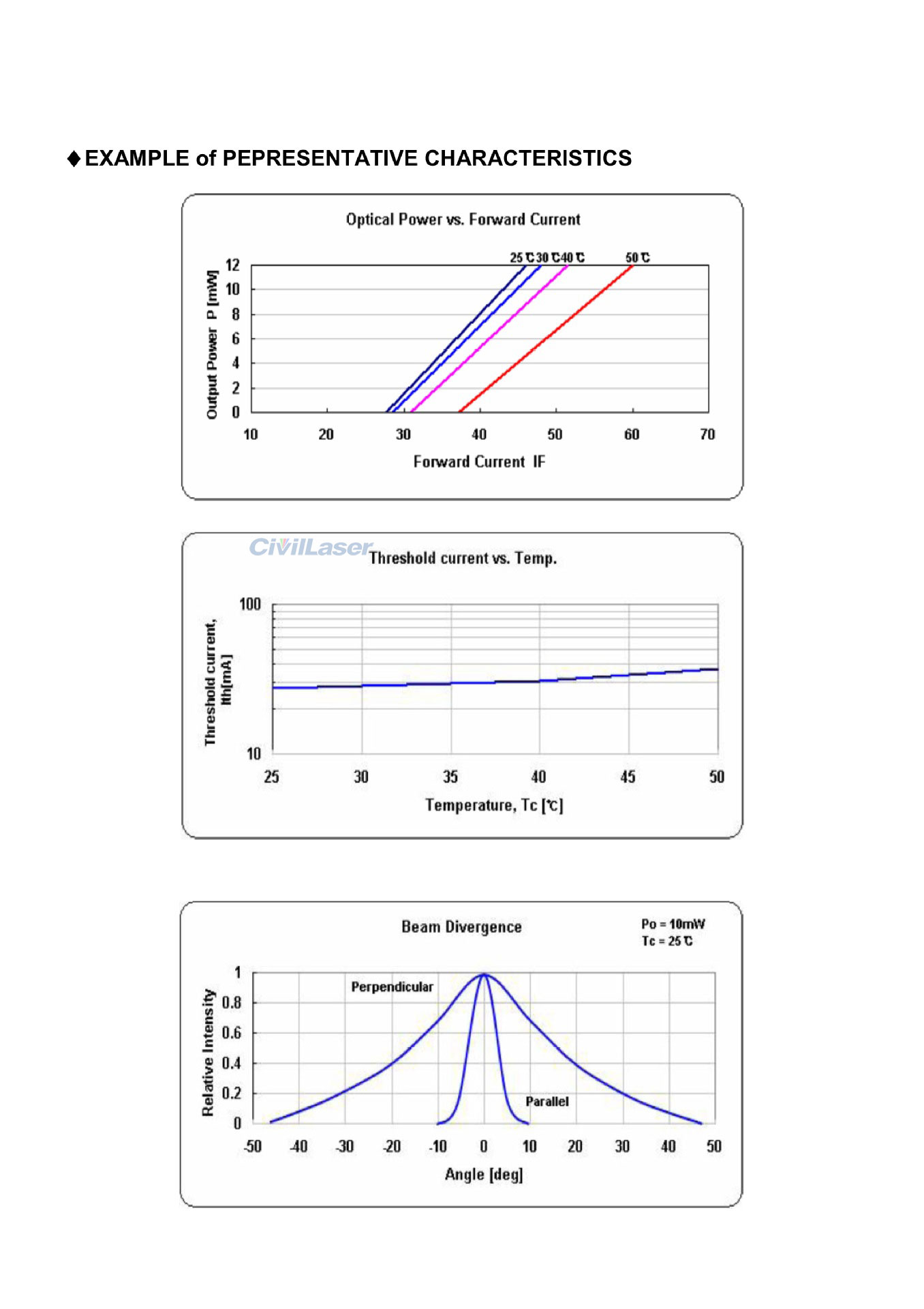

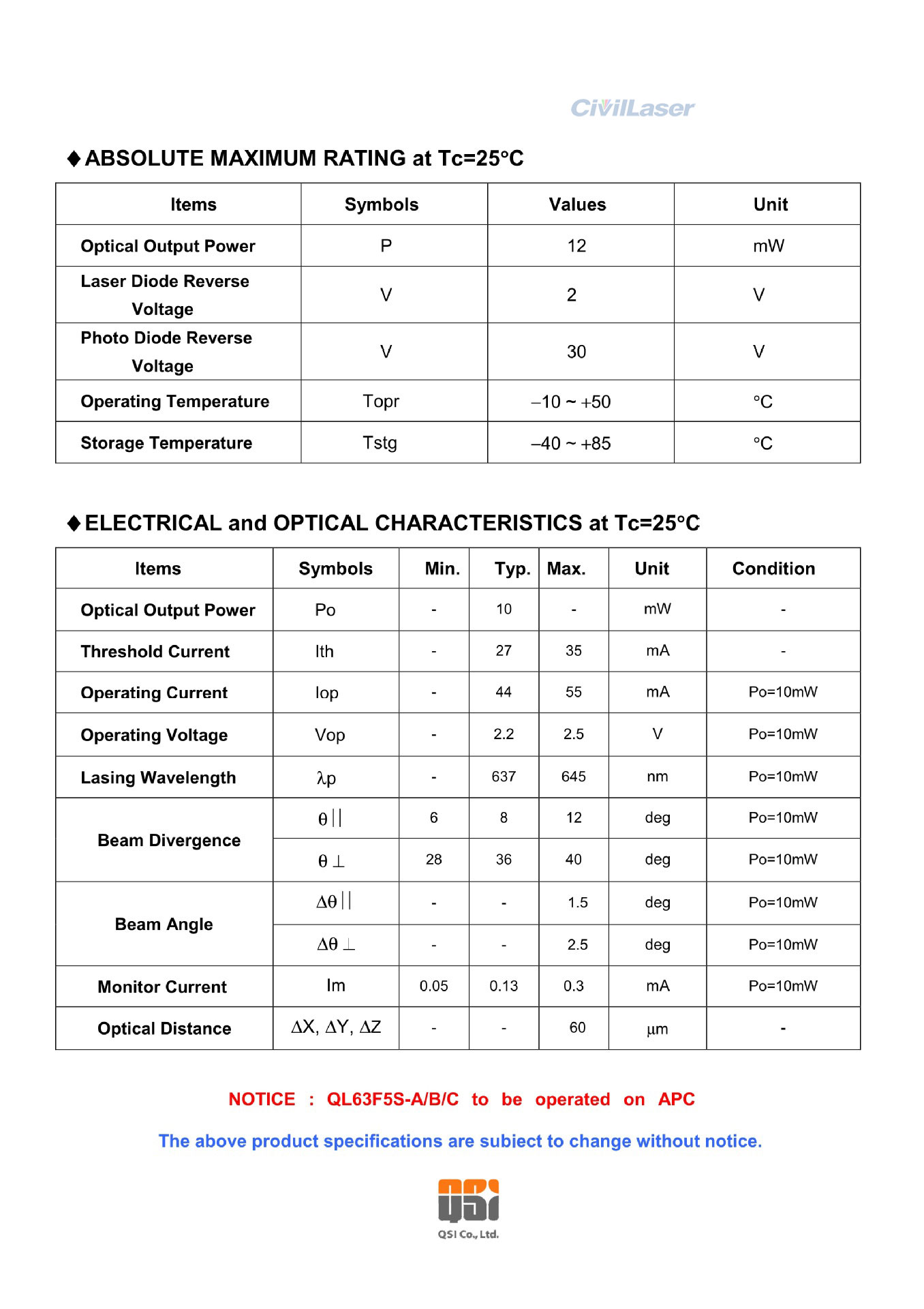

Electrial and Optical Characteristics at Tc=25℃
Emission Wavelwngth: 630nm-645nm
Threshold Current: 27-35mA
Operating Current: 44-55mA
Operating Voltage: 2.3-2.5V

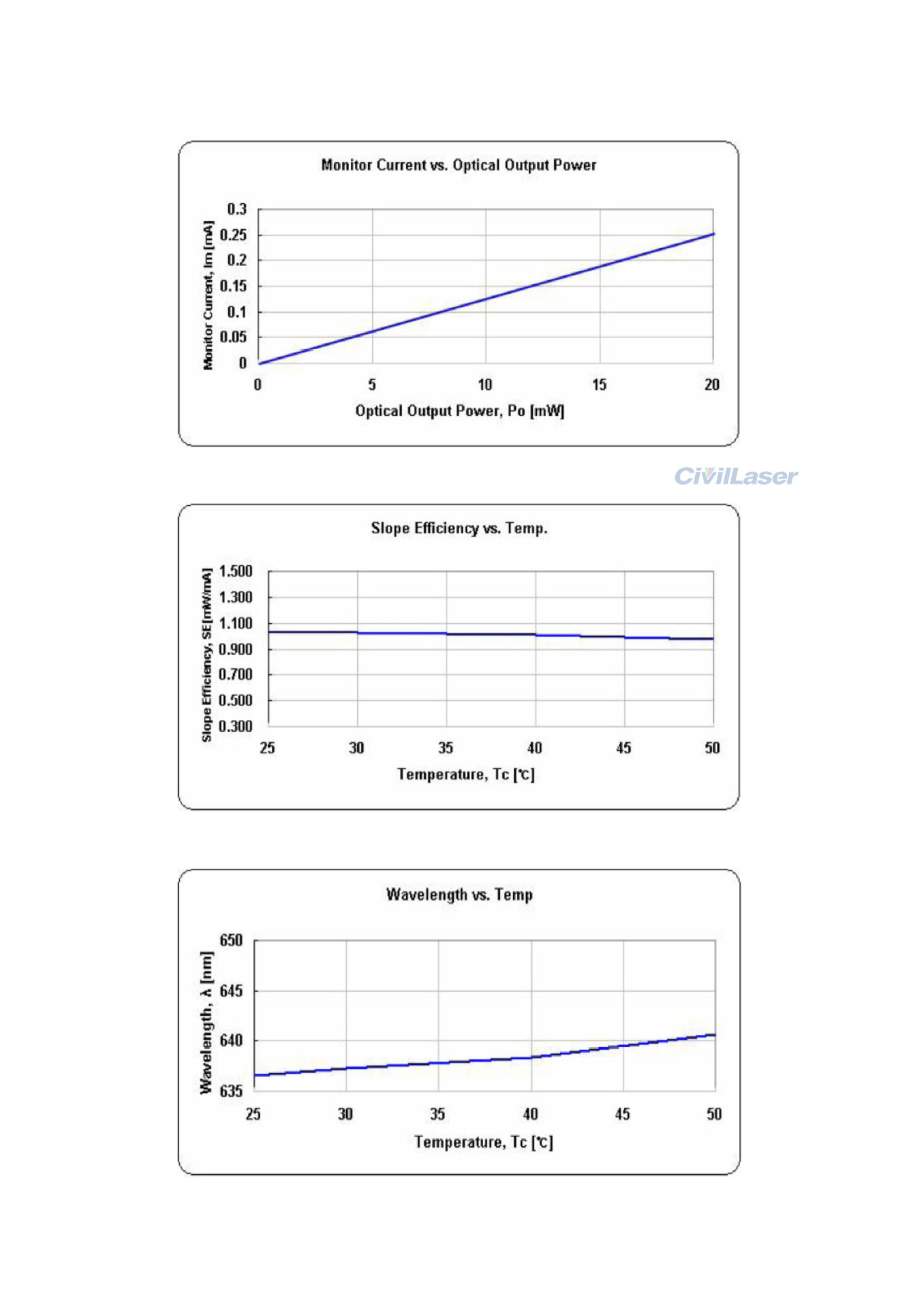

Monitor Current:  0.05-0.3mA
