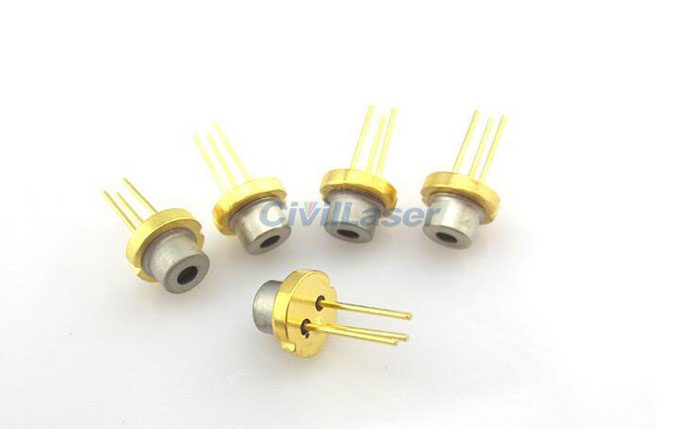

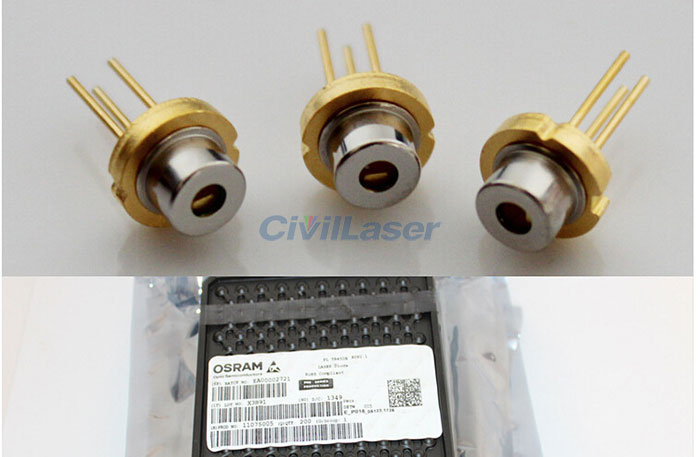

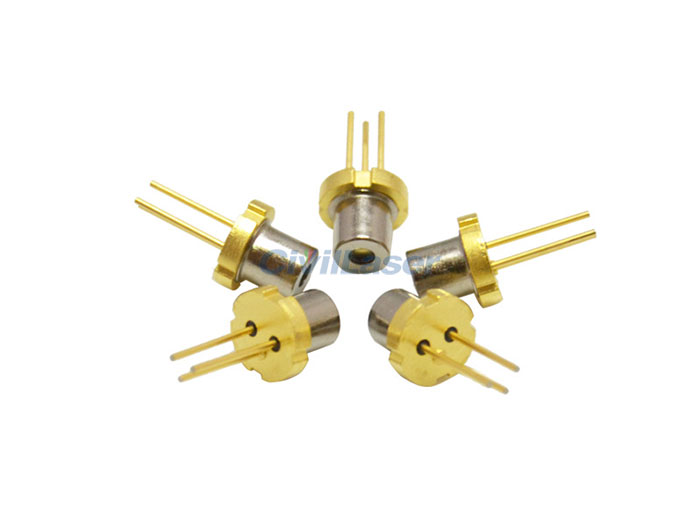

520nm 50mW Green Laser Diode OSRAM LD PLT5 520 TO56

520nm 50mW Green Laser Diode OSRAM LD PLT5 520 TO56

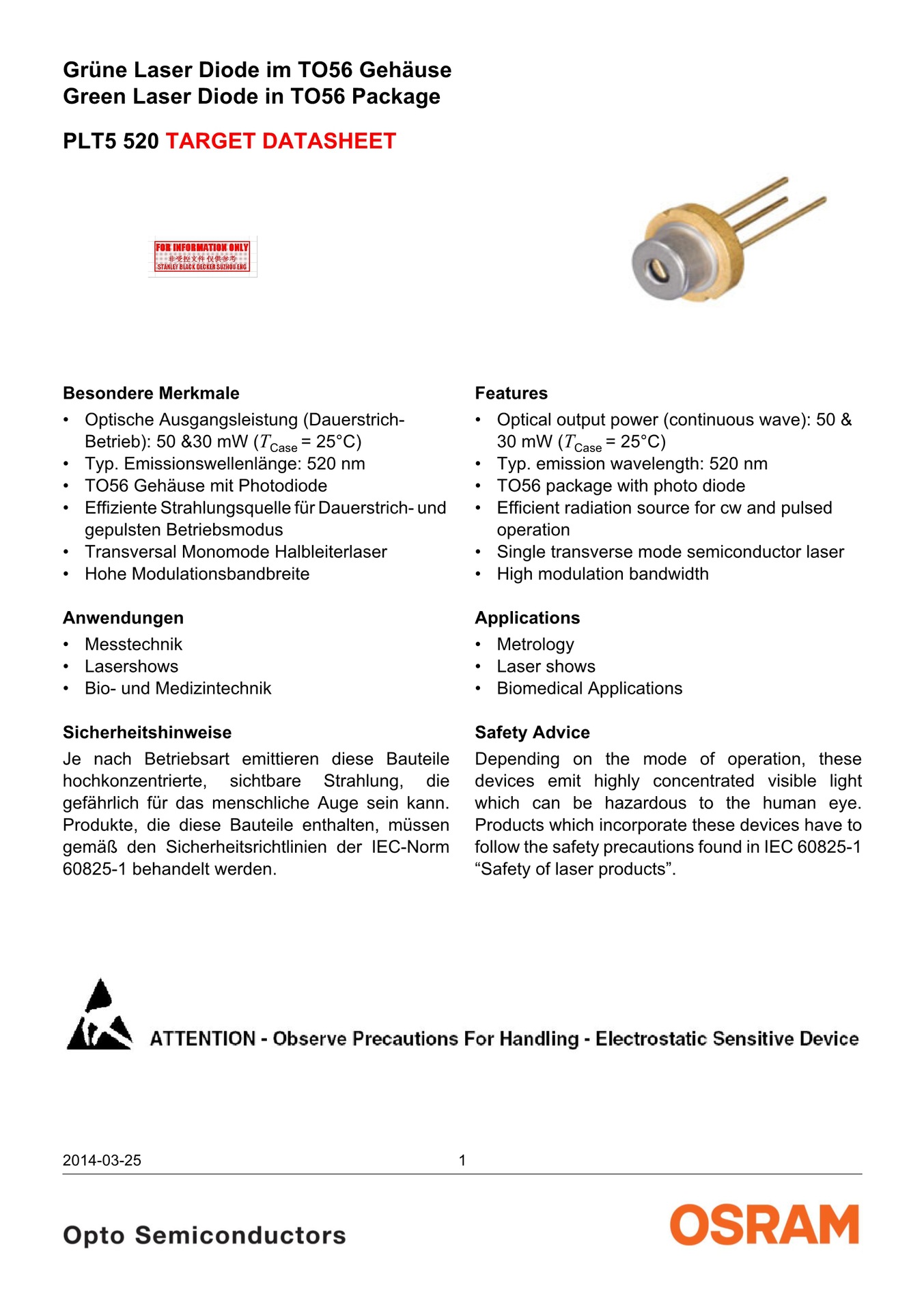

 [Features]
Optical output power (continuous wave):50 & 30mW(Tcase=25℃)
Typical emission wavelength:520nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth

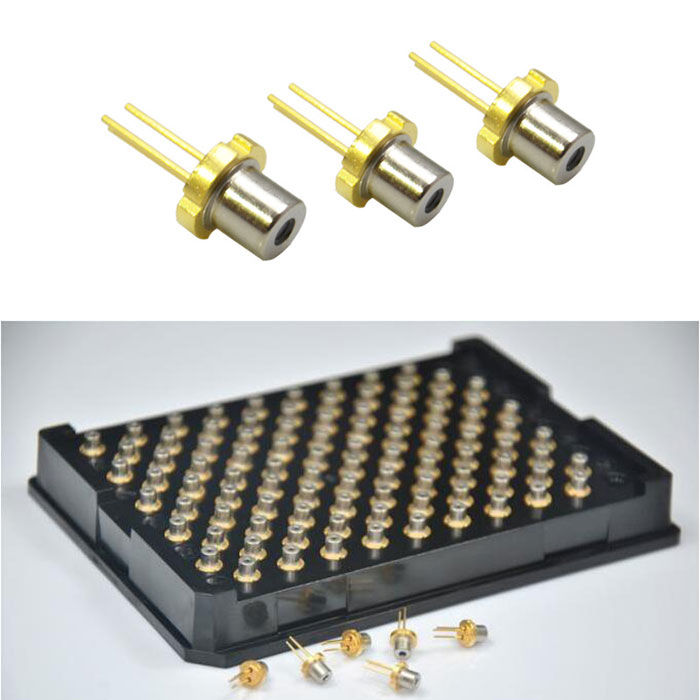

TO56 package with photo diode

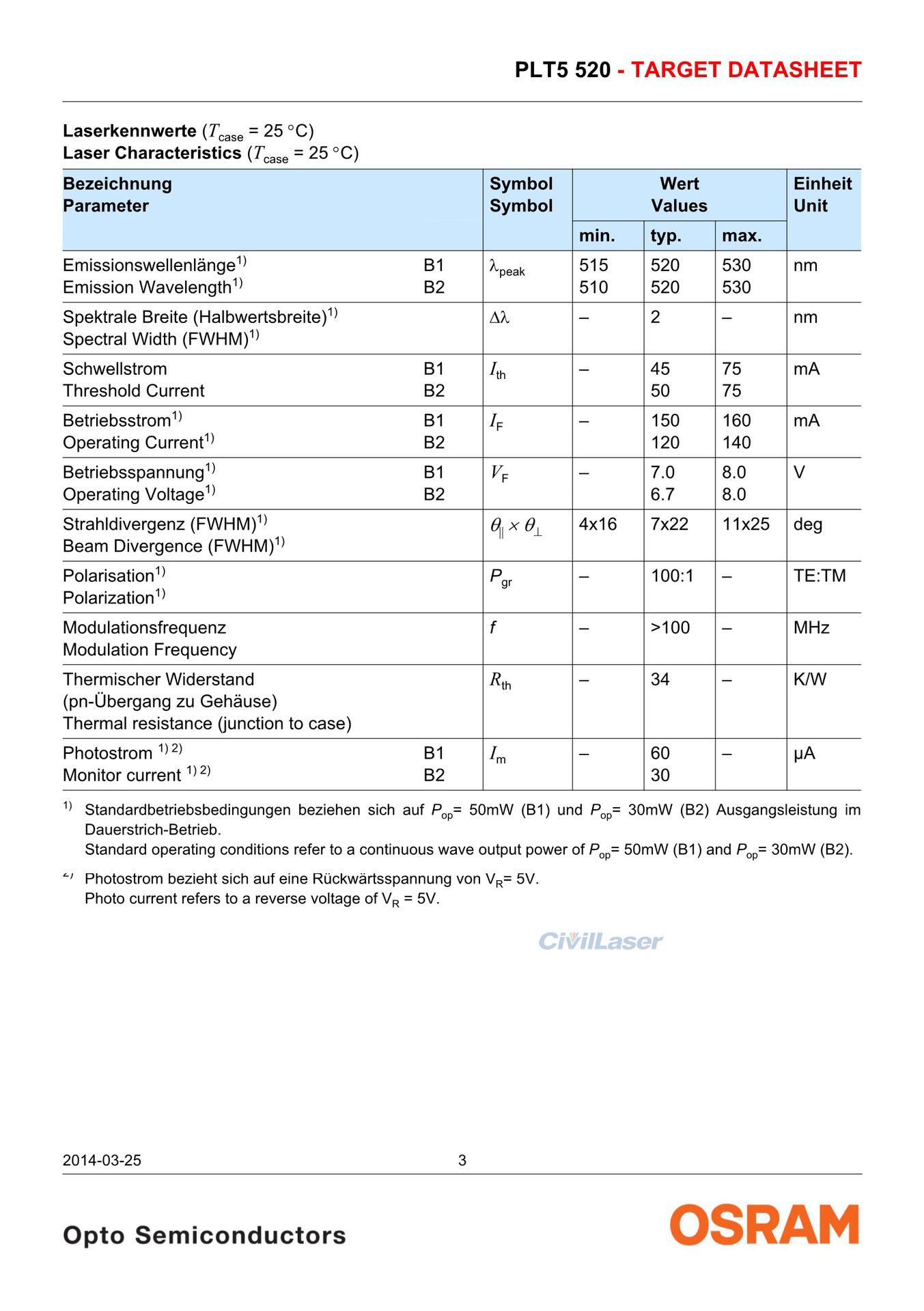

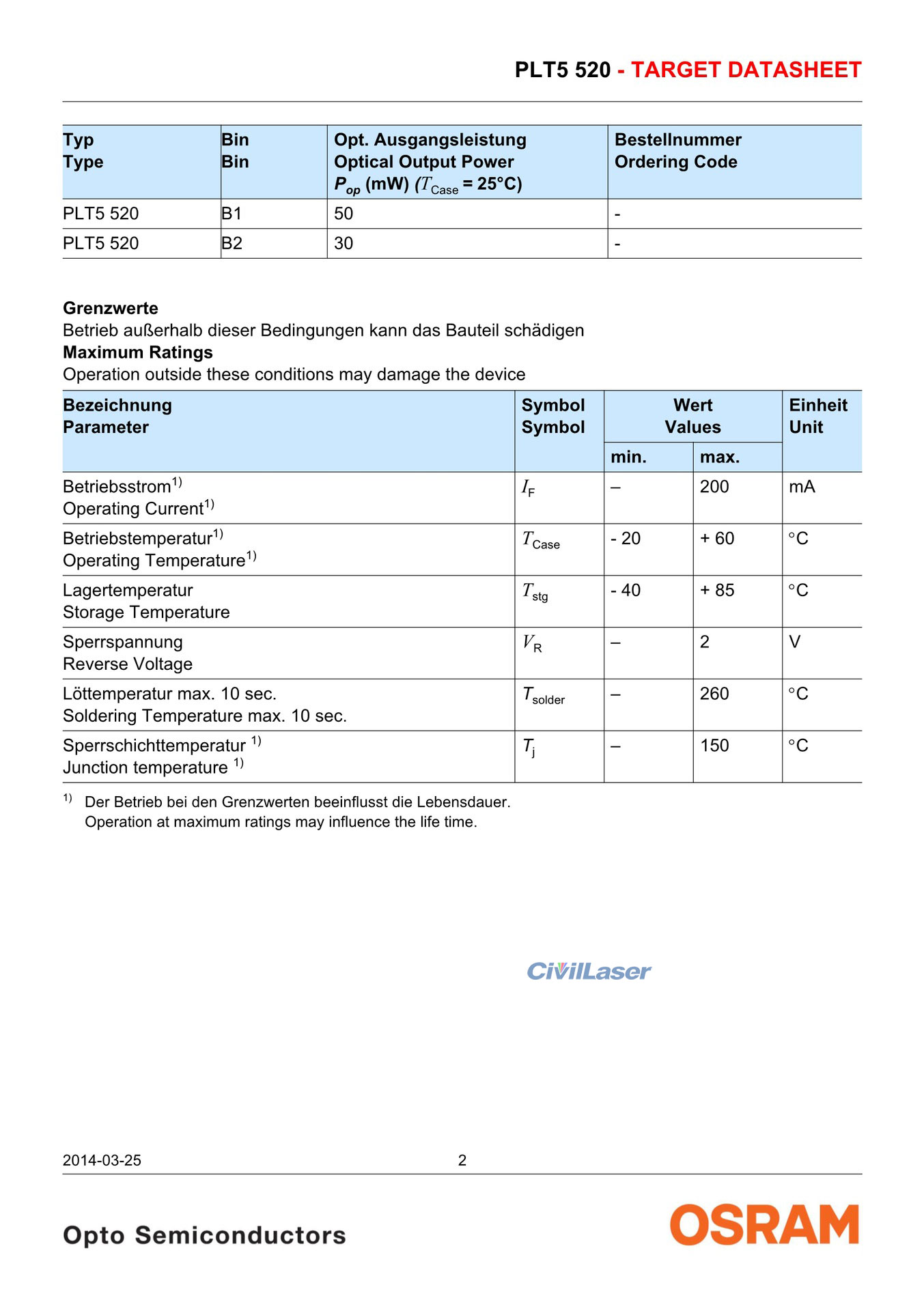

[Specifications]
Type:PLT5 520
Output Wavelength:520nm
Output Power:50mW
Operating Current (Tm=25℃): 200mA
Storage Temperature:-40~85℃
Operating Case Temperature: -20~60℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction  Temperature:150℃

Emission Wavelwngth:510nm-530nm
Spectral Width:2nm
Threshold Current:50-75mA
Opreating Current:120-140mA
Operating Voltage:6.7-8.0V
Beam Divergence :4*16 deg-11*25 deg
Modulation Frequency:>100MHz
