1550nm 40MHz Fiber Coupled Acousto-Optic Modulator SM/PM Fiber AOM

1550nm Fiber Coupled AOM

Product 3/5

Return to the Product List

1550nm 40MHz Fiber Coupled Acousto-Optic Modulator SM/PM Fiber AOM

larger image

Starting at: $1,280.00

Please Choose:

Fiber Type

Drive

Add to Cart:

1550nm 40MHz Fiber Coupled Acousto-Optic Modulator SM/PM Fiber AOM

[Features]
Low insertion loss
Compact structure
Stable performance

[Applications]
Optical switch
Laser wavelength shift
DVS, B-OTDR and other vibration sensor measurement

Note:
Lead Time: 3~4 weeks

[Specifications]

Parameter	Unit	Min	Max	Typ.	Remarks
Material				TeO²
Wavelength	nm	1520	1580	1550
Average Optical Power	W		0.5
Peak (Pulse) Optical Power	kW		0.5
Ultrasonic Velocity	m/s			4200
Insertion Loss	dB	2	3	2.5
Extinction Ratio	dB	50
Polarization Extinction Ratio	dB	18	25	20
Return Loss	dB	40
Rising Time	ns	45	60	50
Frequency	MHz			40
Frequency Shift	MHz			±40	Optional
RF Power	W	2	3	2.5
Voltage Standing Wave Ratio				1.2:1
Input Resistance	Ω			50
Device Interface				SMA
Fiber Type		PM1550 / SMF-28e fiber			Customziable
Fiber Length	m			1
Fiber Interface				FC/APC
Operating Temperature	℃			-20~+60
Storage Temperature	℃			-30~+70

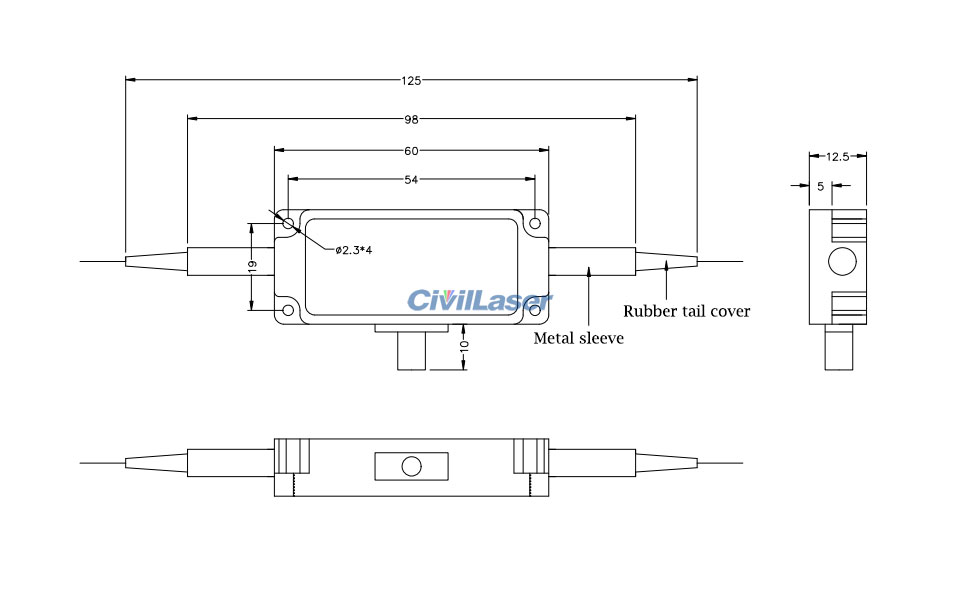

1550nm fiber coupled AOM

1550nm fiber coupled AOM

1550nm fiber coupled AOM
