638nm 2.1W CW Single Emitter COS Laser Chip 638A-75*2-2.1-1.5-COS Made in China

$59.00

Add to Cart:
Min:  20

638nm 2.1W CW Single Emitter COS Laser Chip 638A-75*2-2.1-1.5-COS Made in China

[Features]
High laser power.
High efficiency.
Long lifetime, high reliability.
Excellent beam characteristics.

Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China

[Specifications]

Parameters

Symbol

Min.

Typ.①②

Max.

Unit

Operation

Center wavelength

λ

633

638

643

nm

Output power

Po



2.1



W

Operation mode





CW





Absolute Maximum Ratings

Operation temperature

To

-10

25

50

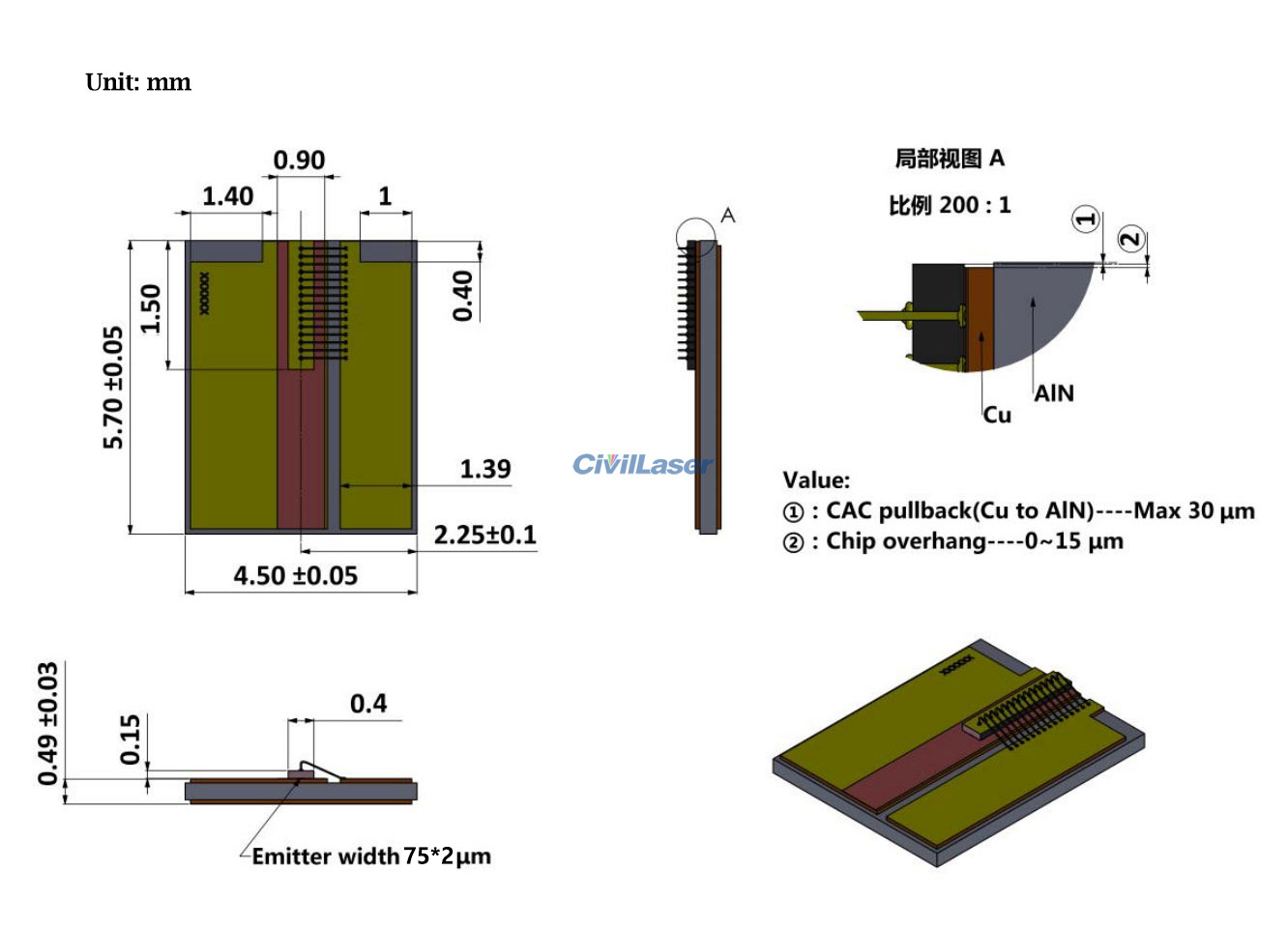

Geometrical

Emitter width

w



75*2



μm

Cavity length

L



1500



μm

Chip width

W



400



μm

Chip height

H



150



μm

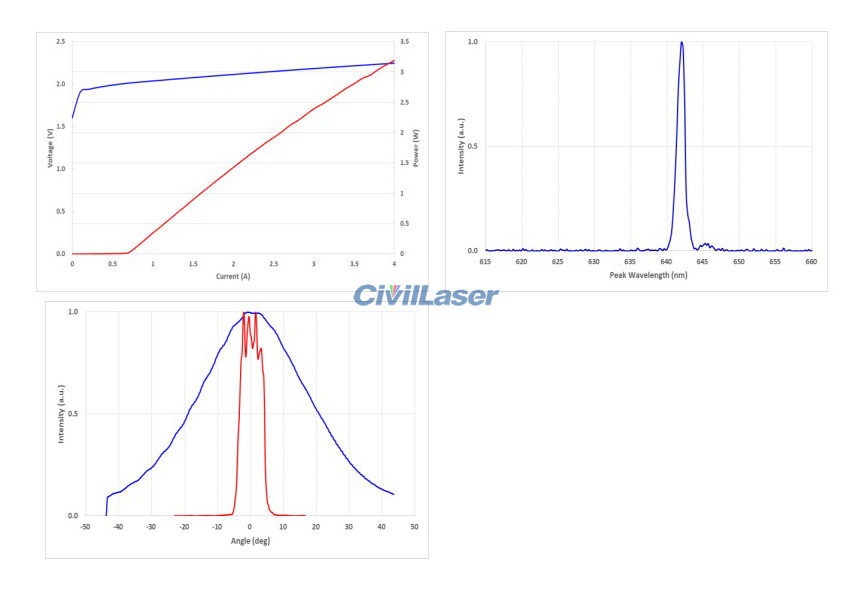

Electro Optical Data

Threshold current

Ith



0.7

0.8

A

Operating current

Iop

2.5

2.7

2.9

A

Operating voltage

Vop



2.2

2.4

V

Slope efficiency

ηd=Po/(Iop - Ith)



1.1



W/A

Total conversion efficiency

η=Po/(Iop x Vop)

32

35



%

Slow axis divergence④

θ∥

3

8

13

degrees

Fast axis divergence⑤

θ⊥

35

40

45

degrees

Spectral width⑤

△λ



1



nm

Polarization





TM





Temperature drift coefficient of wavelength





0.18



nm/℃

Note:
①. In the above table, the typical values of test data are obtained according to the test system of CivilLaser.
②. according to the single-tube chip test data. When testing a single-tube chip, it is packaged in COS (Chip On Submount), and the COS test temperature is 25°C.
③. The chip should not be used when the use conditions exceed the limit value; at the same time, except for the typical value, other use conditions do not mean that the service life of the chip can be guaranteed.
④. covering 95% of the energy.
⑤. FWHM (Full width half maximum).





COS laser chip

COS laser chip

COS laser chip

COS laser chip

COS laser chip

COS laser chip
