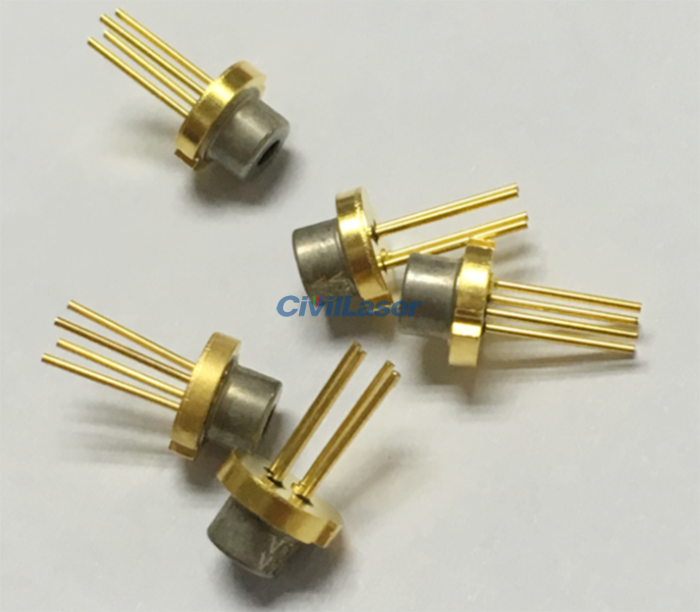

QSI 780nm 788nm 800nm 10mW Dual Wavelength IR Laser Diode QL78F6DF-1 TO-18 Φ5.6mm Package

QSI 780nm 788nm 800nm 10mW Dual Wavelength IR Laser Diode QL78F6DF-1 TO-18 Φ5.6mm Package

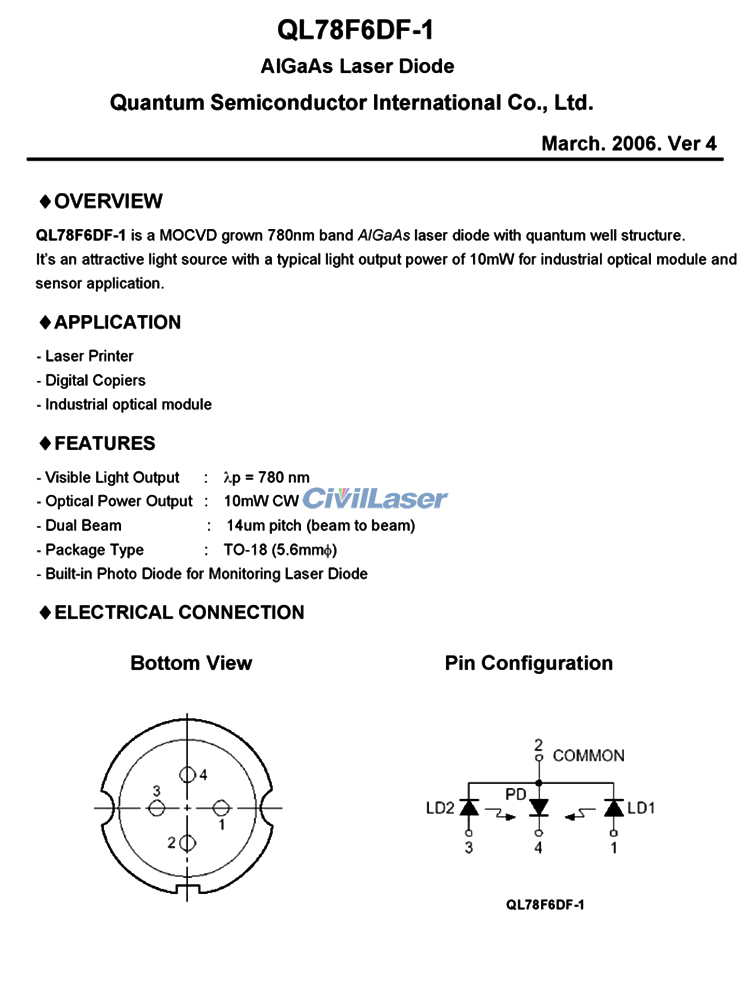

QL78F6DF-1 is a MOCVD grown 780nm band AlGaAs laser diode with quantum well structure.  It's an attractive light source with a typical light output power of 10mW for industrial optical module and sensor application.

[Application]
Laser printer
Digital copiers
Industrial optical module

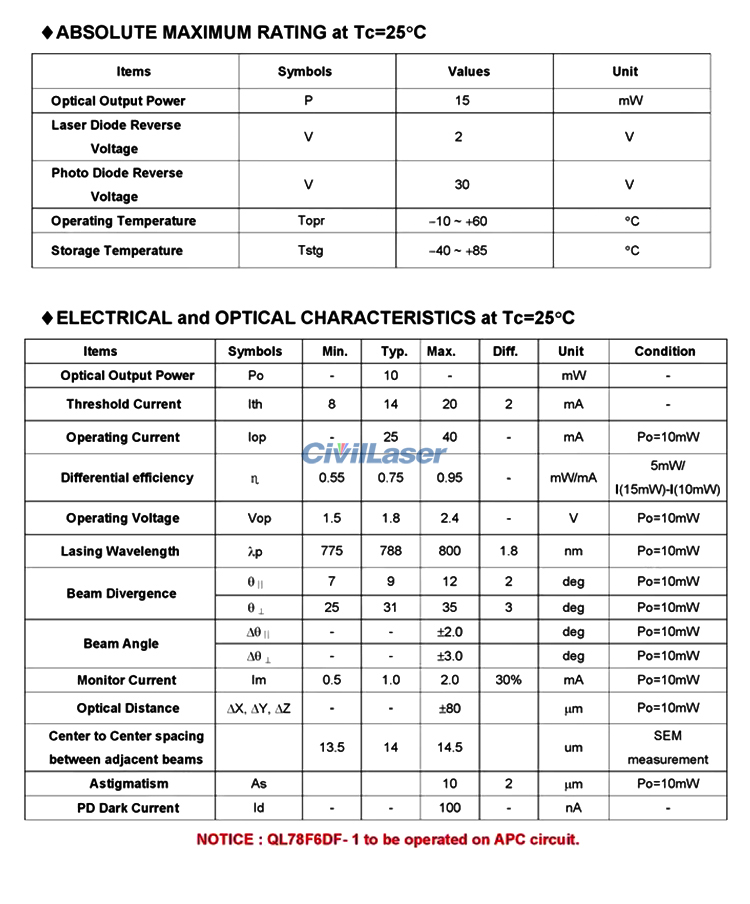

[Speicfication]
Product Name: Laser diode
Model: QL78F6DF-1
Wavelength: 780nm
Power: 10mW
Operating Current: 25mA

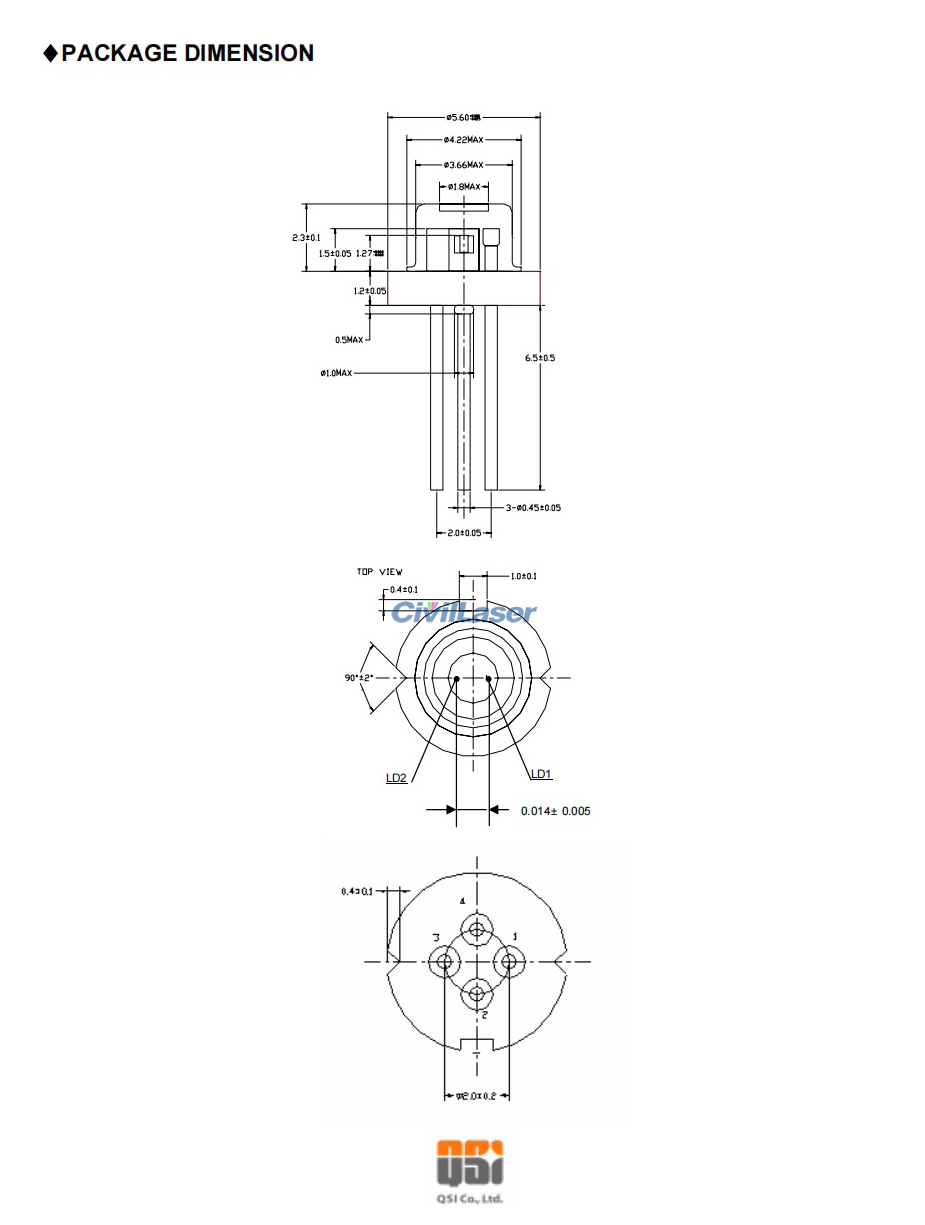

Package: TO-18 Φ5.6mm
