380nm 220mW UV Light Source Dot/Line/Crosshair Laser Module For Scientific Research Experiment

380nm 220mW UV Light Source Dot/Line/Crosshair Laser Module For Scientific Research Experiment

[Features]
Precision-grade products, high temperature resistance, good insulation, high stability;
Dot module: round spot, adjustable spot size, clear and bright, soft and not dazzling;

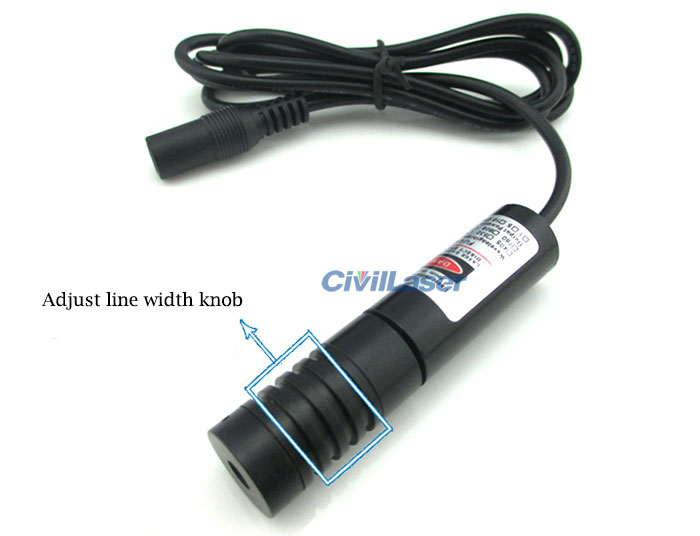

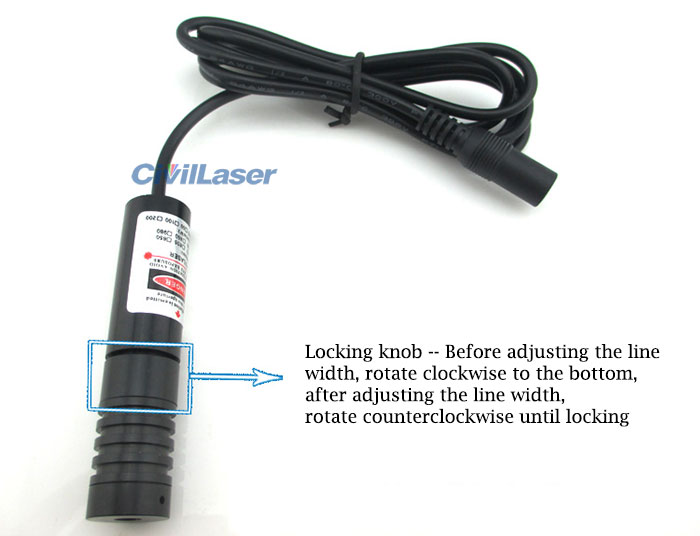

Line module: thin line width, adjustable thickness, clear and bright light, uniform brightness, soft and not dazzling;
Straight/cross lens angle can be customized from 5°~120°;
New imported tube core + special lens, high light pass rate, small light energy loss, can be turned on 24 hours a day;
Intelligent driver board with imported IC, wide range of power supply, other voltages can be customized;
The interior is filled with heat dissipation silicone and AB glue, which can fully dissipate heat and resist shock and fall;
The shell is aviation aluminum plated with insulating paint, anti-static;
High temperature resistant and corrosion-resistant wires, suitable for all-weather and all-environment use;

[Specification]

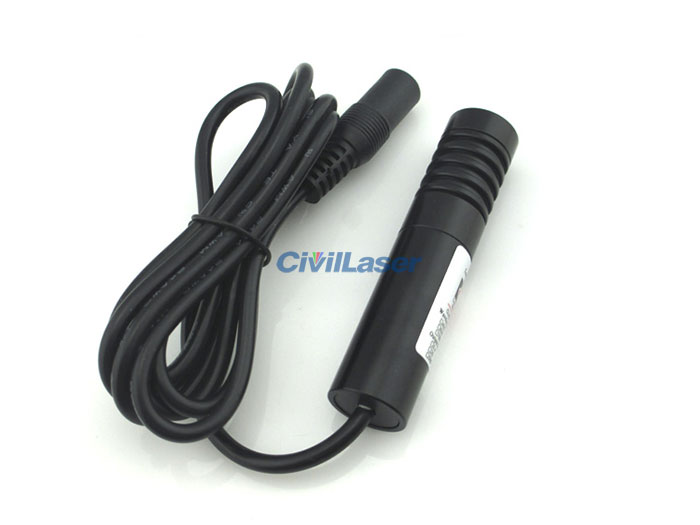

Product Name: 380nm Laser Module
Wavelength: 380nm
Output Power: 220mW
Laser Shape: Dot / Line / Crosshair (Choose)
Operating Voltage: DC 2.8-5.2 V
Operating Current: ≤400mA

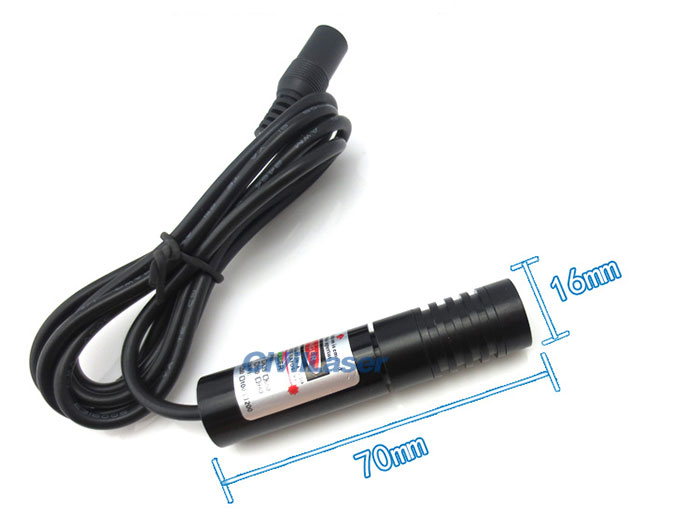

Size: 16*70 mm (Customizable)

Dot module working distance:
Indoors during daylight: 0-200 meters
Outdoors during daylight: 0-80 meters
In dark environments: 0-500 meters

Line length of line laser module:
Indoor working environment: Max 5 meters
Installation height: 0~3 meters

Line length of crosshair laser module:
Indoors: Max 3 meters
Installation height: 0-3 meters

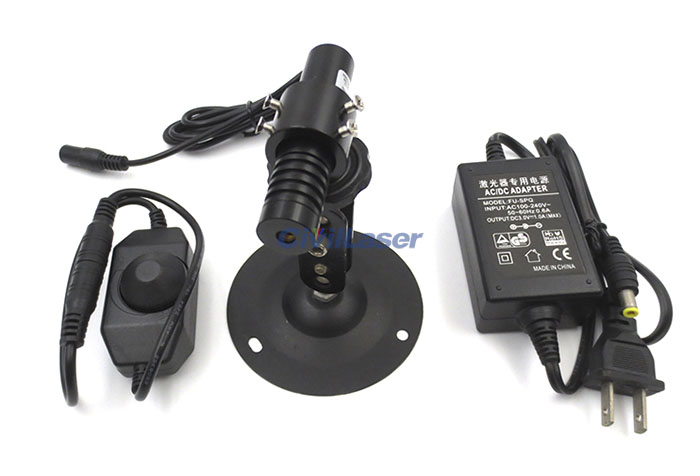

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser holder
