1064nm 2000mW High Power End Pump Infrared Laser Engraver Metal engraving
The 1064nm 2W engraving laser uses high-quality imported laser diodes, which have long service life, stable output power, clear light spot, and use 12/24V DC fans, which have good heat dissipation and low power consumption. This product can be used to engrave copper, aluminum, bamboo, leather, water products, metal plates, rubber plates, resins, etc.
[Specification]
Product Name: Laser engraver
Wavelength: 1064±1nm
Output Power: >2W
Pulse Width: ~8ns
Frequency: 20-30kHz (Uncontrollable)
Power Supply: DC 12V/24V(80W)

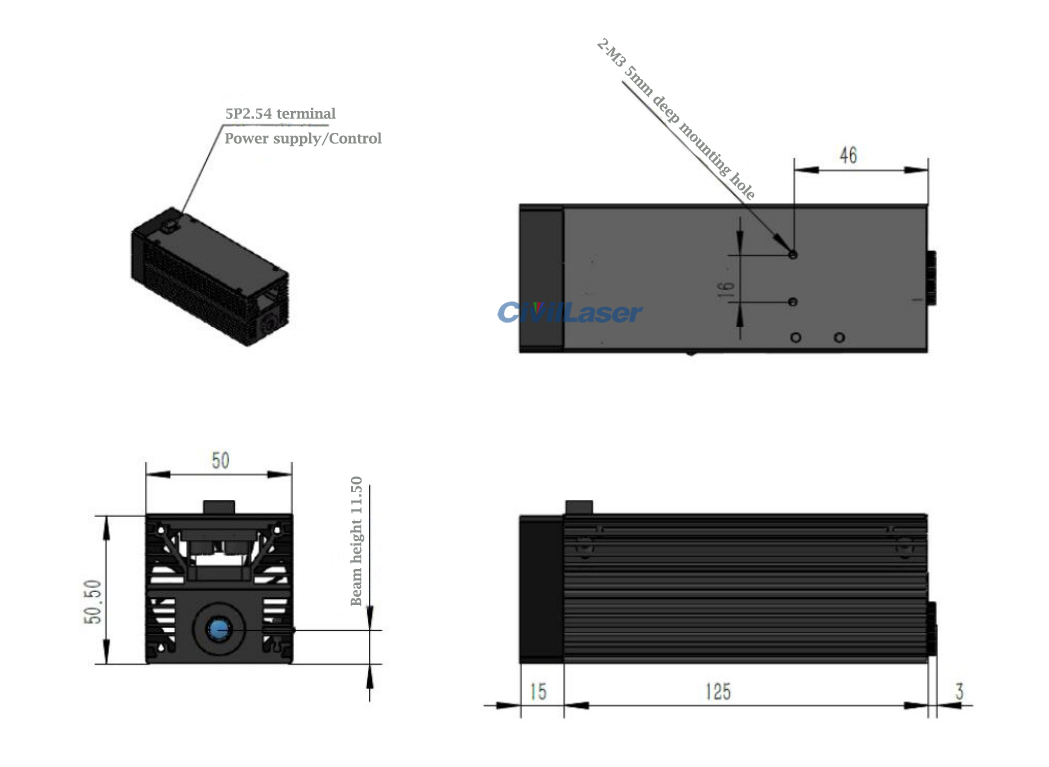

Dimension: 50*50.5*140mm
Operating Temperature: 20~30℃
Storage Temperature: -10~50℃
Cooling Mode: Air-cooling
Warranty: 1 years
Light Output Control: PWM laser light output signal input pin, using 3-5V level, high-level outputs laser, low-level turns off the laser. The red indicator light is opposite to the laser state.
Precautions for use:
1. The laser safety level emitted by the laser module is Class IV, which may cause damage to the eyes. When the laser module is working, it is strictly forbidden to look directly at its end face and wear protective glasses.
2. The device requires a suitable driving power supply. When the laser module is connected to the power supply, the power supply output voltage should be zero; the current should be increased or decreased slowly during current adjustment to avoid impact current damage to the device.
3. The device should be stored or operated in a dry environment, and the dustproof level should reach the million level to prevent dust from falling into the lens and affecting the light spot.
4. Working at a higher temperature will increase the threshold current, reduce the conversion efficiency, and accelerate the aging of the device.
5. Working at an output power higher than the specified parameters will accelerate the aging of the device.
6. When the temperature of the laser tube reaches 70℃ during continuous operation, heat dissipation must be done well.
7. This product is an electrostatic sensitive device and can only be picked up when the human body is well grounded. Anti-static bracelets can be used to prevent static electricity.
