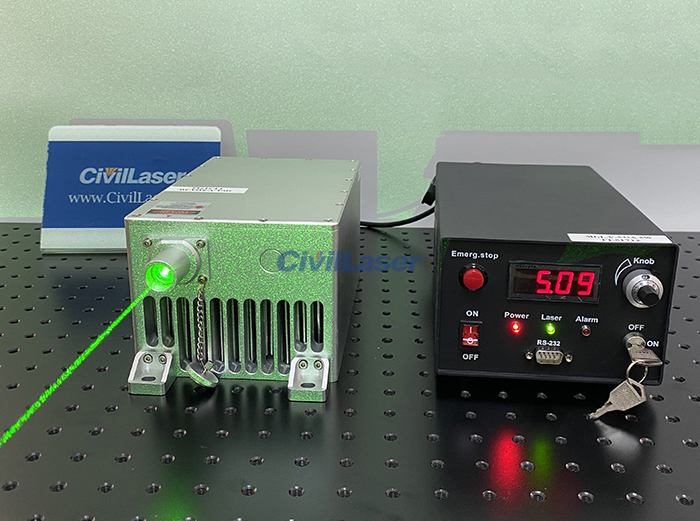

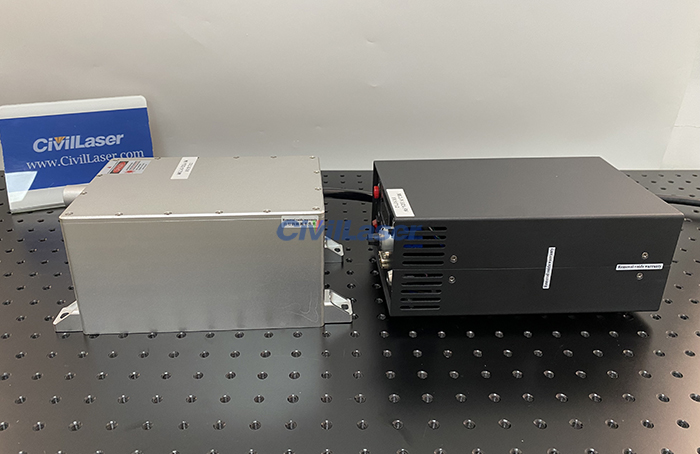

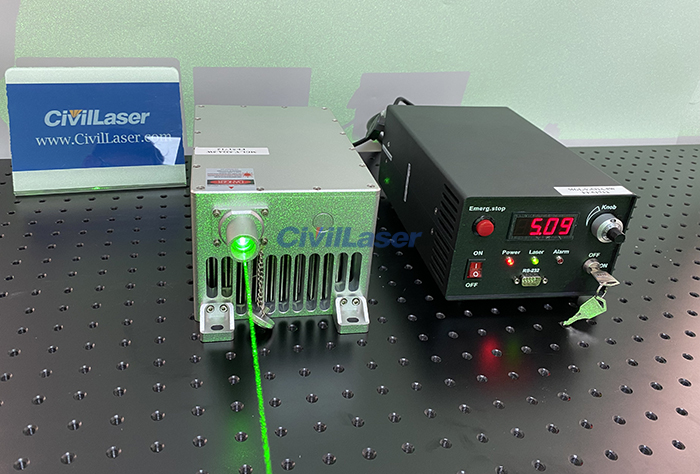

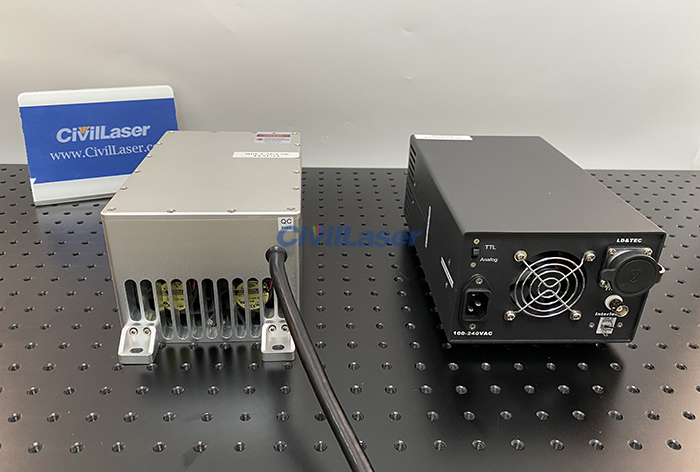

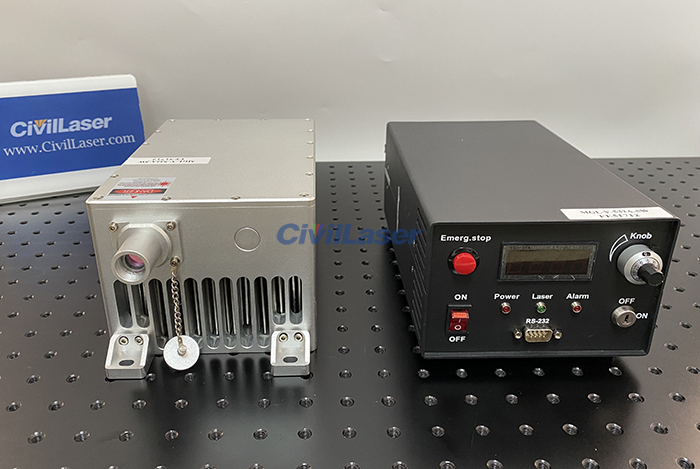

High-Quality Beam Reliable Performance 532nm 5W DPSS Laser MGL-V-532A-5W

High-Quality Beam Reliable Performance 532nm 5W DPSS Laser MGL-V-532A-5W

All solid state 532nm green laser is made features of good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.

[Specification]

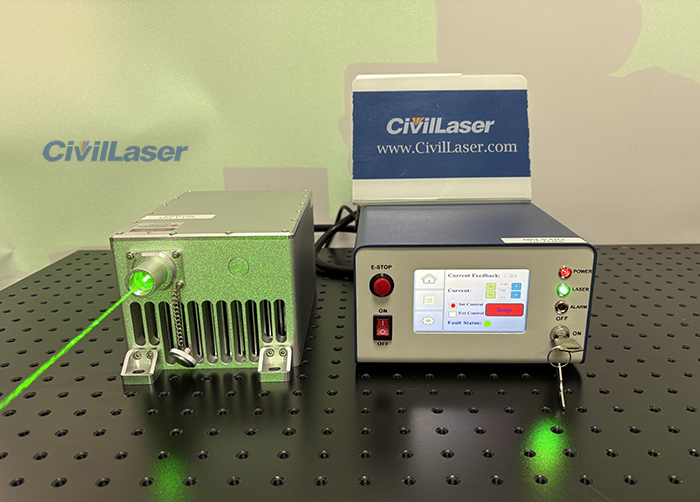

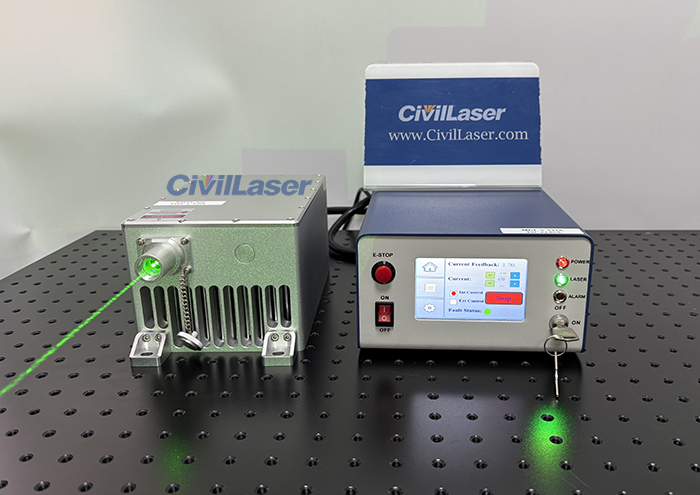

Product Name: 532nm DPSS laser
Model: MGL-V-532A-5W
Wavelength: 532±1nm
Output Power: 5W
Transverse Mode: TEM00
Operating Mode: CW
Power Stability : <3% (rms, over 4 hours)
M² Factor: <1.2
Beam Divergence (Full Angle): ~1.0mrad
Beam Diameter at the Aperture (1/e²): ~2.0mm
Warm-up Time: <10 minutes

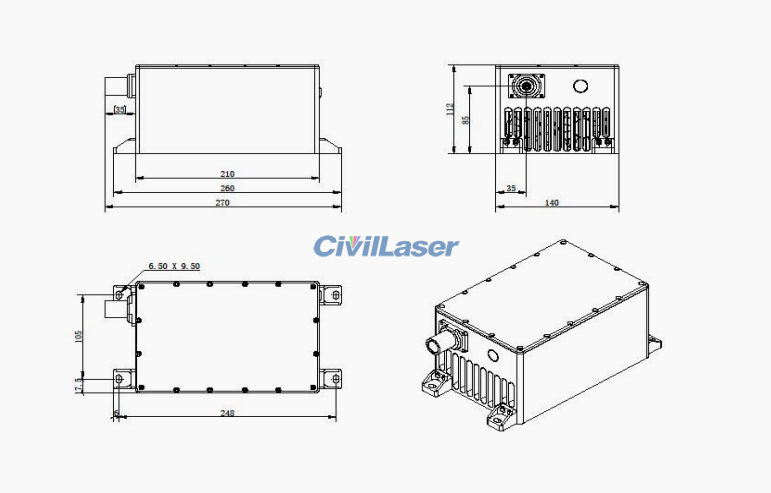

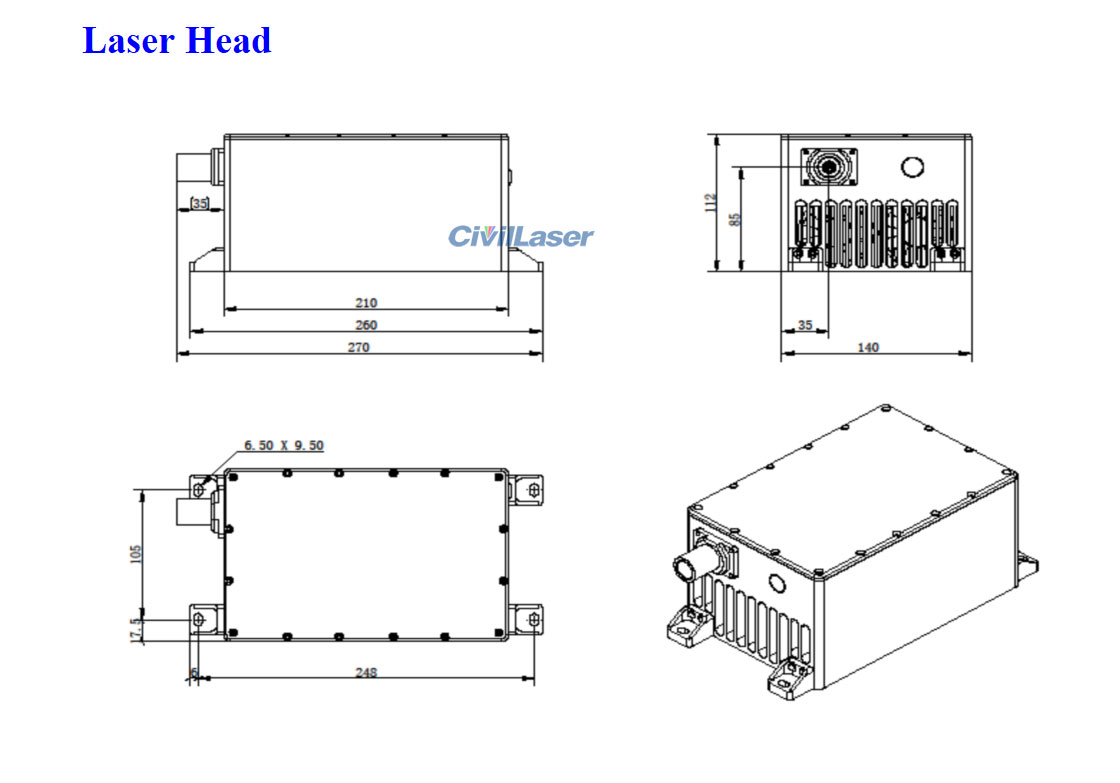

Beam Height From Base Plate: Near 80mm
Polarization Ratio: >50:1 (>100:1 can be customized.)
Cooled Method: Air Cooled
Operating Temperature: 10~35℃
Modulation: TTL or Analog with 1Hz-1kHz (1kHz-10kHz, 10kHz-30kHz customizable)
Expected Lifetime: 10000 hrs
Warranty Period: 1 year
