Osram PLT5 520DB_P 515nm 10mW Green Laser Diode in TO56 Package

Osram PLT5 520DB_P 515nm 10mW Green Laser Diode in TO56 Package

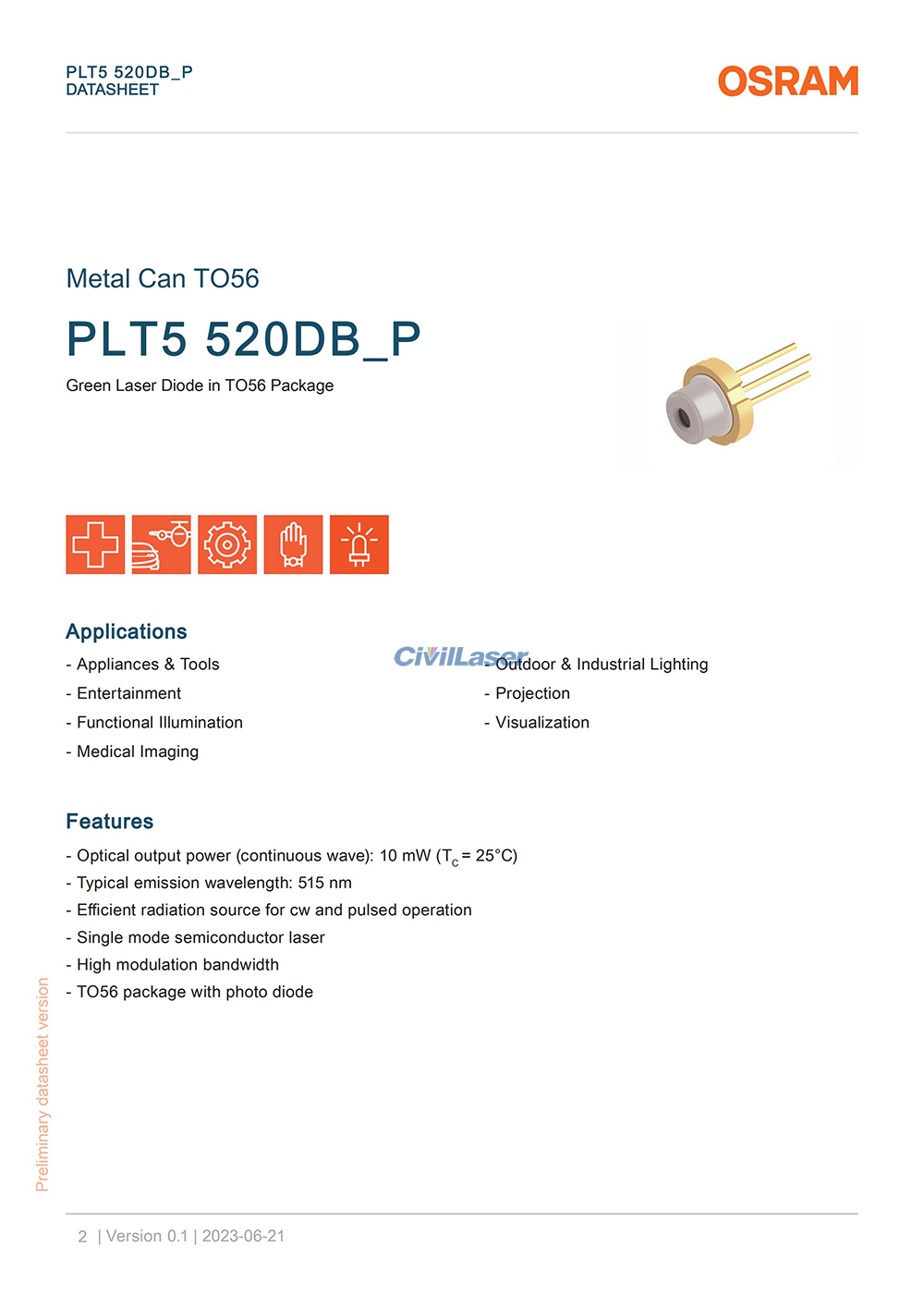

[Features]
Optical output power (continuous wave): 10 mW (TC = 25°C)
Typical emission wavelength: 515 nm
Efficient radiation source for cw and pulsed operation
Single mode semiconductor laser
High modulation bandwidth

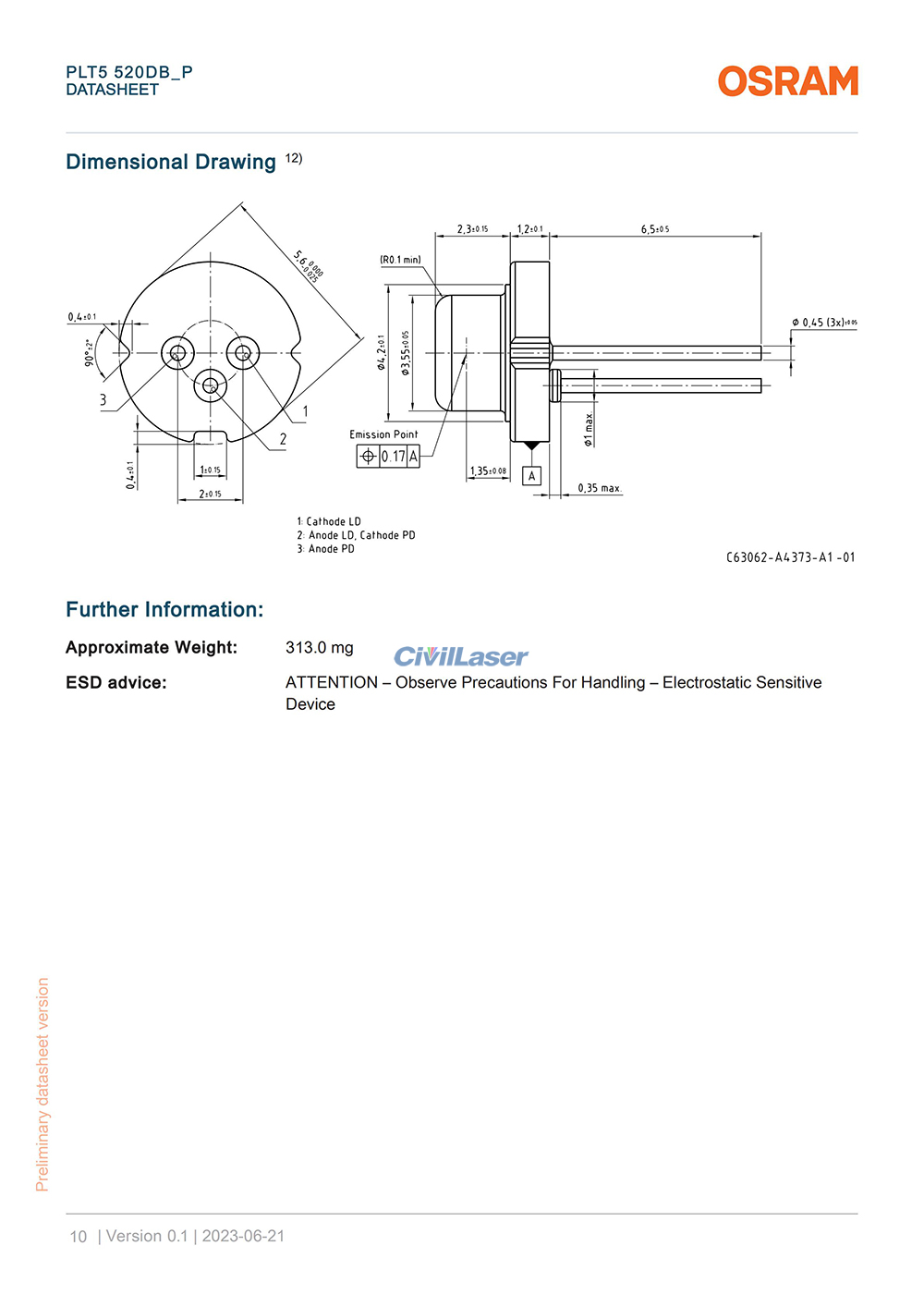

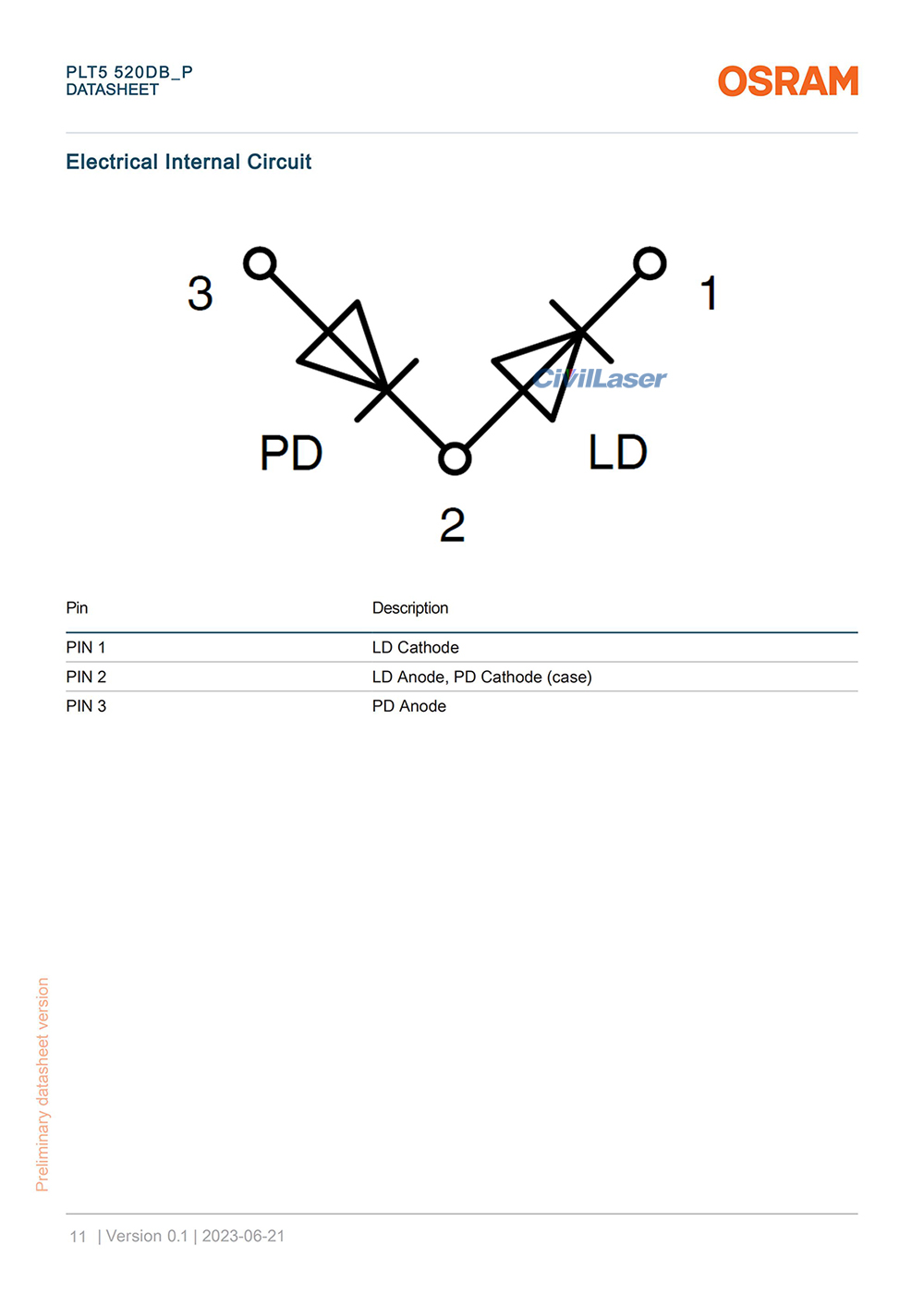

TO56 package with photo diode

[Applications]
Appliances & Tools
Entertainment
Functional Illumination
Medical Imaging
Outdoor & Industrial Lighting
Projection
Visualization

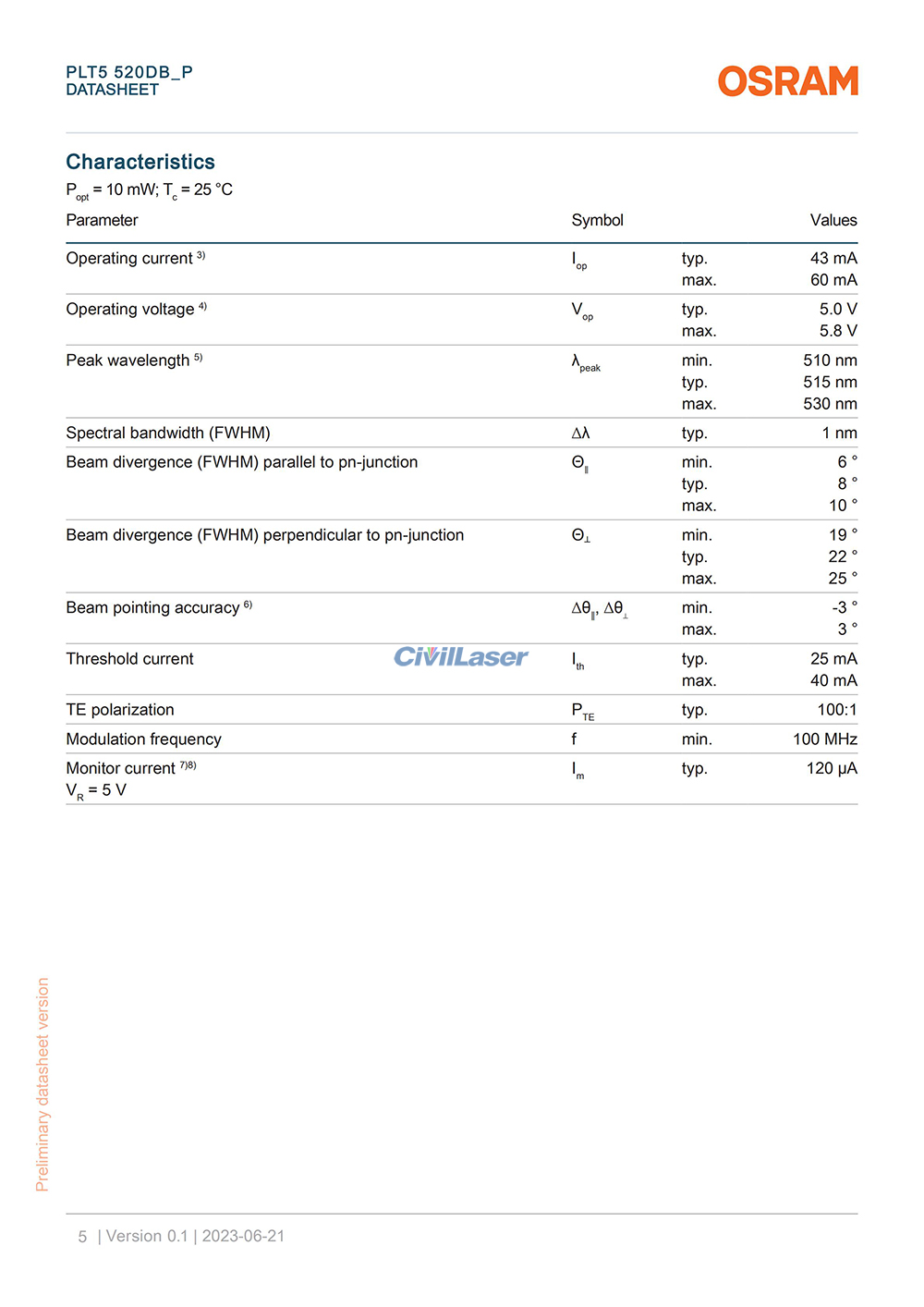

[Specification]
Product Name: Laser diode

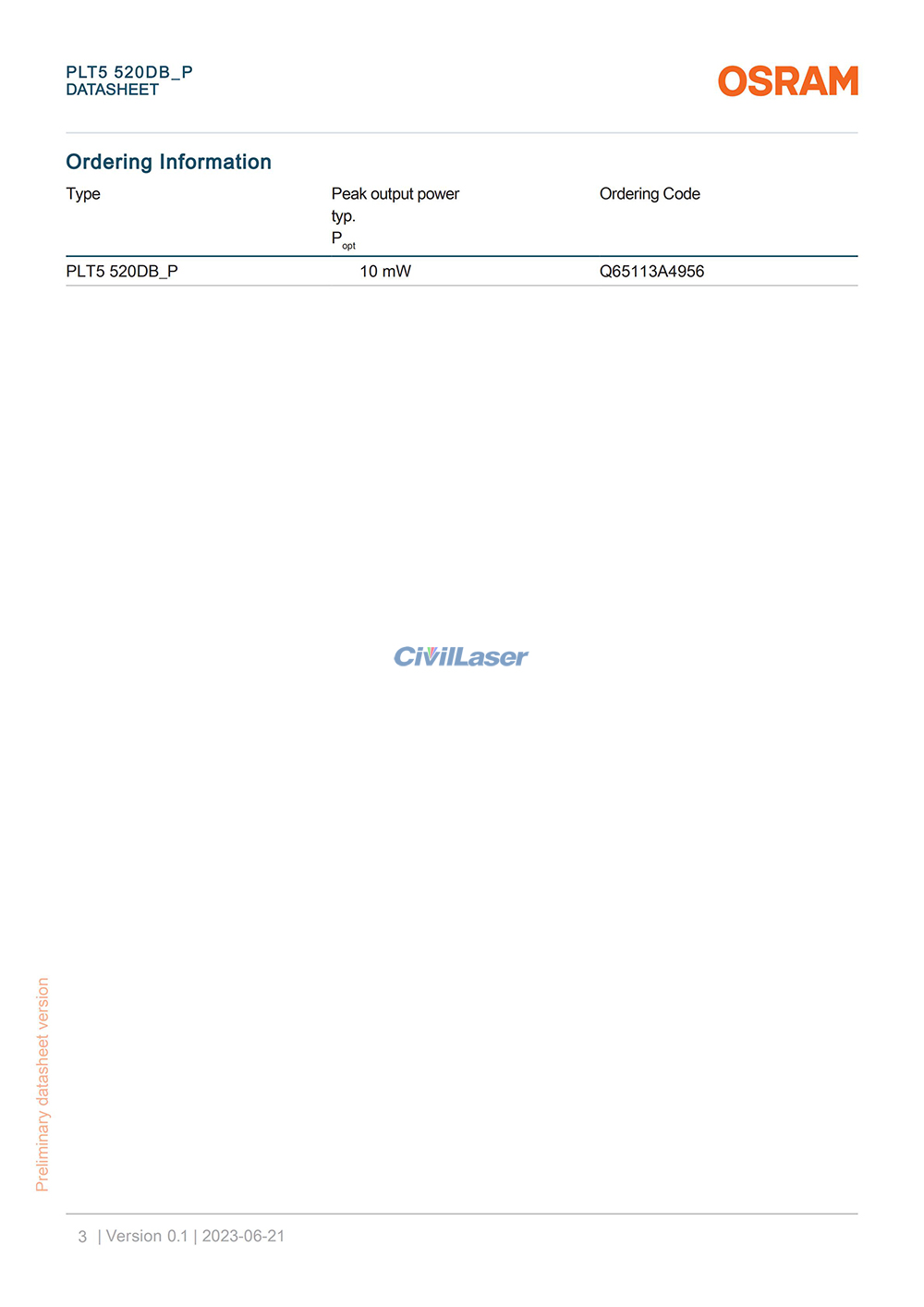

Model: PLT5 520DB_P

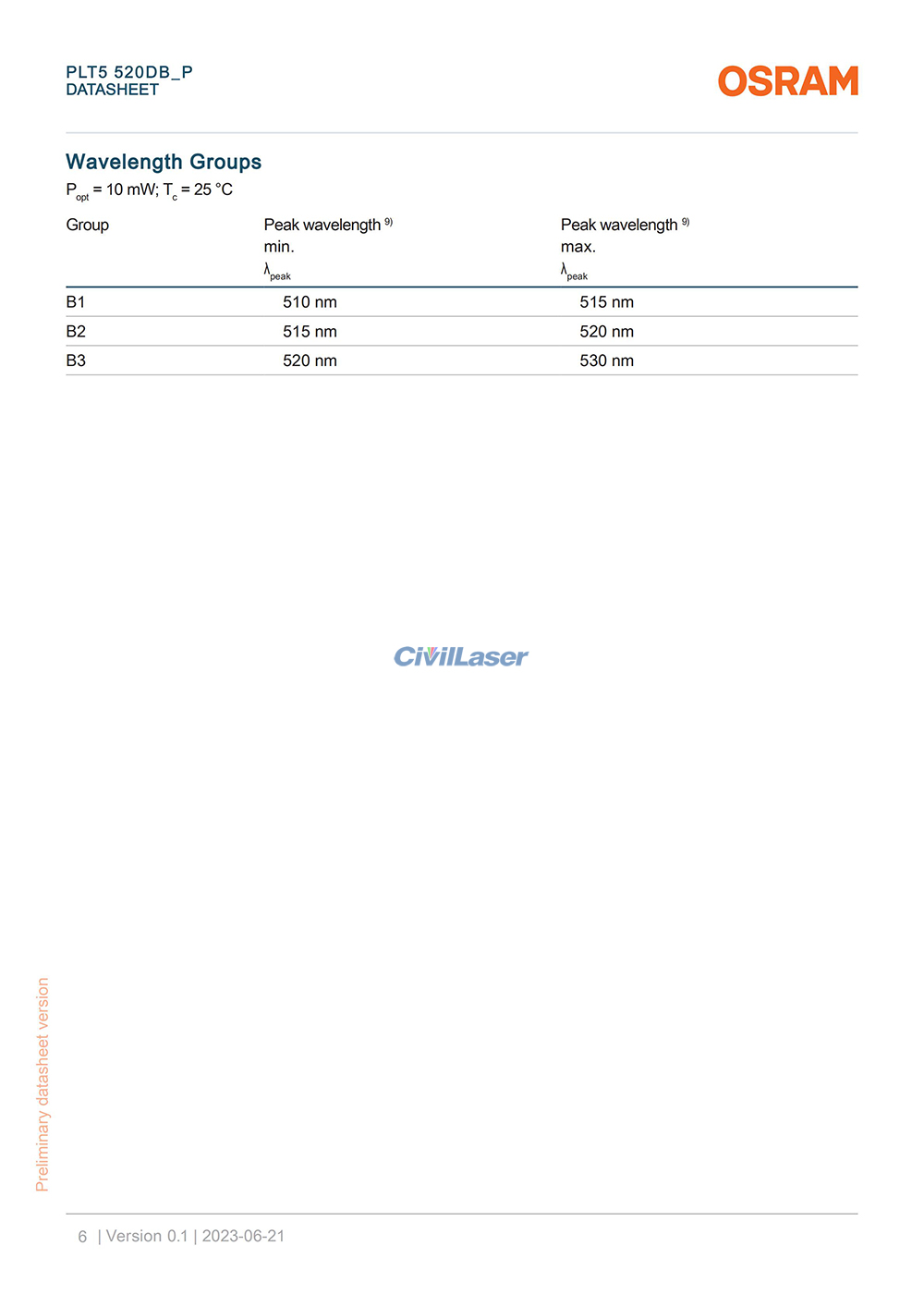

Wavelength: 515nm
Output Power: CW 10mW

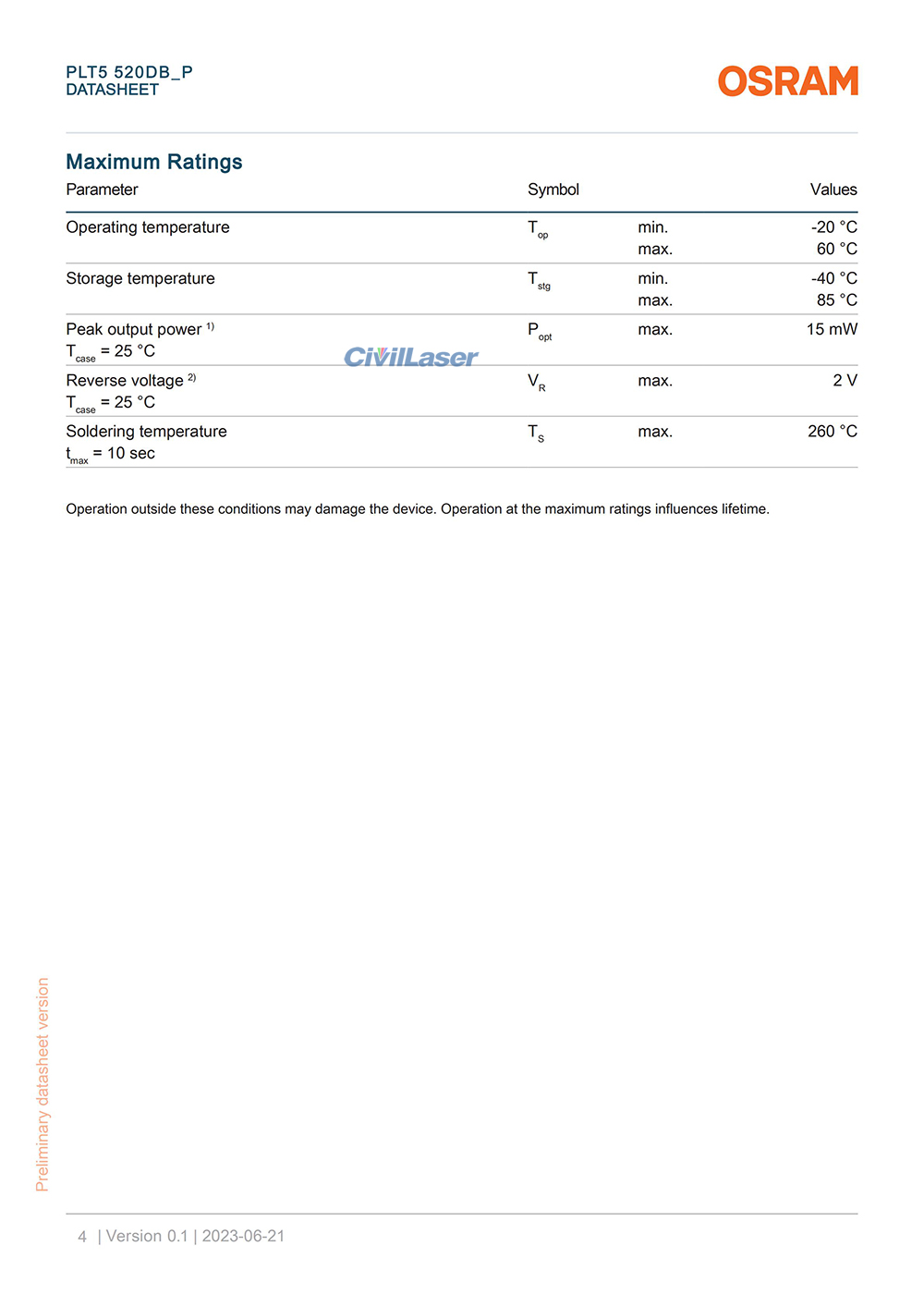

Peak Output Power: 15mW
Operating Current: 43mA
Operating Voltage: 5V
Operating Temperature: -20~+60°C
Storage Temperature: -40~+85°C
