808nm 10W High Power Semiconductor Laser IR Line Laser Output

808nm 10W High Power Semiconductor Laser IR Line Laser Output

[Specification]
Product Name: 808nm line laser
Wavelength: 808±5nm
Output Power: >10W
Laser Shape: Line
Divergence Angle: 45° (Customizable)
Line Width: <1mm @0.5~0.6m working distance (Customizable)
Power Stability: ±3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Modulation: 0~30kHz Analog or TTL modulation
MTTF(mean time to failure): 10,000 hrs
Laser Head dimension: Near 155(L)x77(W)x60(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Warranty: 1 Year

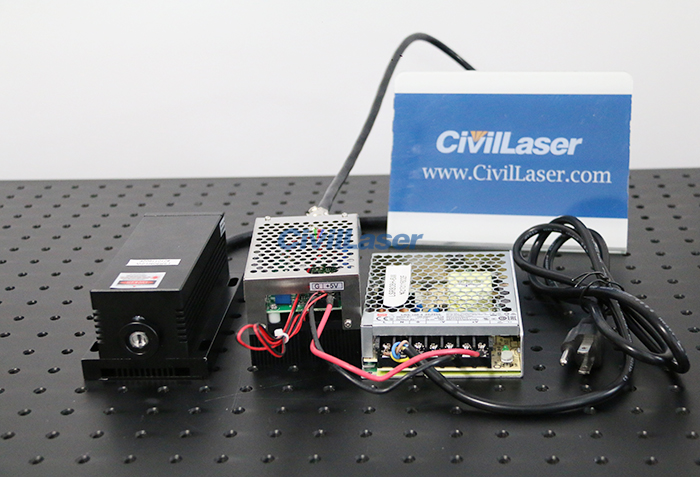

[Package Include]
1 x 808nm laser head
1 x Laser power supply
