800~1700nm InGaAs Optoelectronic Device High-speed Photodetector Module PD03-FS

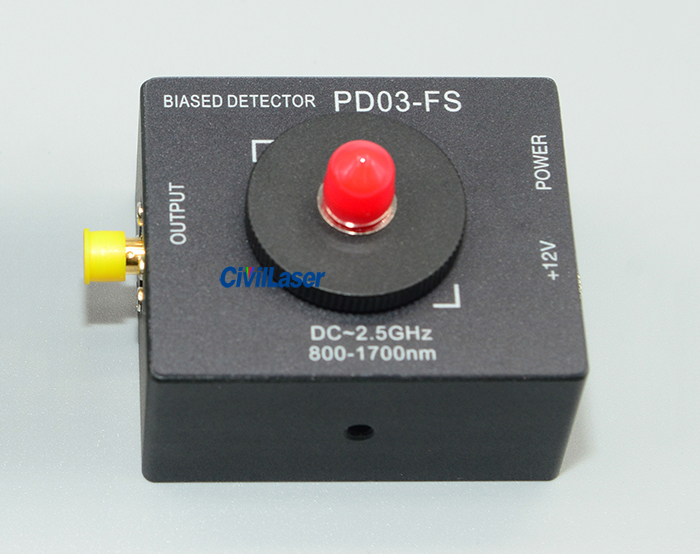

PD03 series high-speed photodetector modules have a photoelectric response bandwidth of 1~3GHz, a pulse rise time as low as ≤125ps, and an operating wavelength covering 400~1100 or 800~1700nm. The RF signal output uses an SMA interface, which is convenient for connection with RF test equipment. It is suitable for optical transmission systems, ultrafast laser pulse detection, etc.
[Features]
High bandwidth
High sensitivity
DC coupled output
[Applications]
Optical fiber communication
Pulse Laser Measurement
Optical fiber sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
PD03-FS
|
|
|
Detector Material
|
--
|
InGaAs
|
|
|
Detection Wavelength
|
nm
|
800~1700
|
|
|
Optical Power Input Range
|
dBm
|
-10 ~ 17
|
|
|
Rise Edge Time
|
ps
|
≤140
|
|
|
Max. Electrical Pulse Output
|
mV
|
1500
|
|
|
Photoelectric Response
|
--
|
1.0A/W; 30mV/mW
|
|
|
Return Loss
|
dB
|
-37
|
|
|
Output Matching Impedance
|
Ω
|
50
|
|
|
Frequency Bandwidth
|
GHz
|
DC~2.5GHz
|
|
|
Optical Signal Input Interface
|
--
|
Free space output
|
|
|
RF Signal Output Port
|
--
|
SMA
|
|
|
Electrical and environmental parameters
|
Photo-detector Module
|
|
Power supply
|
DC 5V/12V, <5W
|
|
Size
|
60(W)×50(D)×43(H)mm
(Including FC/APC interface)
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
Picosecond Pulse Laser Response:
