L-Band 1570~1603nm Erbium-doped SM Fiber Pre-Amplifier Benchtop EDFA-L-PA-45-SM-B

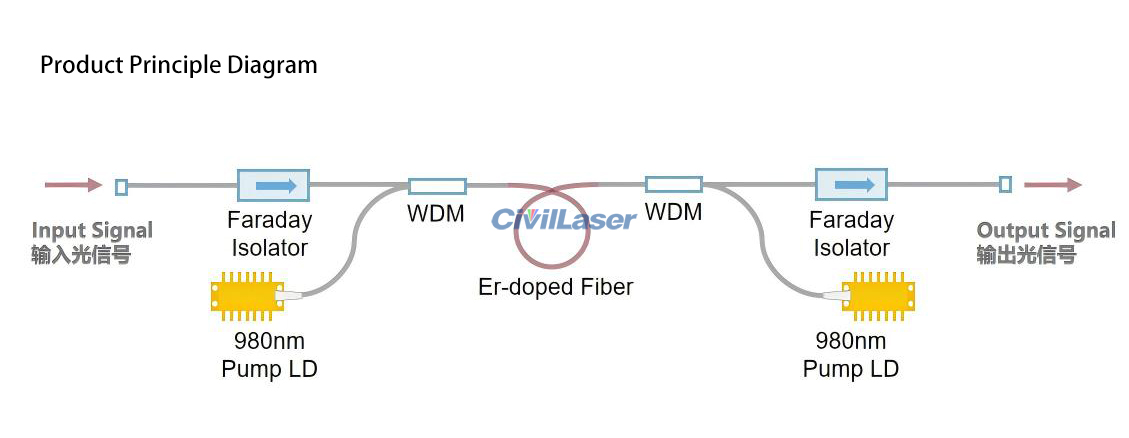

The L-band erbium-doped fiber small-signal amplifier (PA amplifier for short) is an amplifier dedicated to L-band weak optical signals in the range of -45dBm ~ -25 dBm. The typical small signal gain is up to 45 dB, and it also has a low noise index. It is usually used in front of a photodetector to improve its ability to detect weak light signals.
[Features]
Covering the L-band
High gain factor
High output power
[Applications]
Fiber communication
Fiber sensing
Fiber laser
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EDFA-L-PA-45-SM-B
|
|
|
Wavelength Range
|
nm
|
1570~1603
|
L-band
|
|
Input Power
|
dBm
|
-45~-25
|
|
|
Small Signal Gain Factor
|
dB
|
45
|
@-45dBm input power
|
|
Noise Figure
|
dB
|
≤4.5
|
|
|
Polarization Dependent Gain
|
dB
|
≤0.3
|
|
|
Polarization Mode Dispersion
|
ps
|
≤0.5
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 single-mode fiber
|
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Work Mode
|
--
|
Automatic current control (ACC)
|
*Note1
|
*Note1:

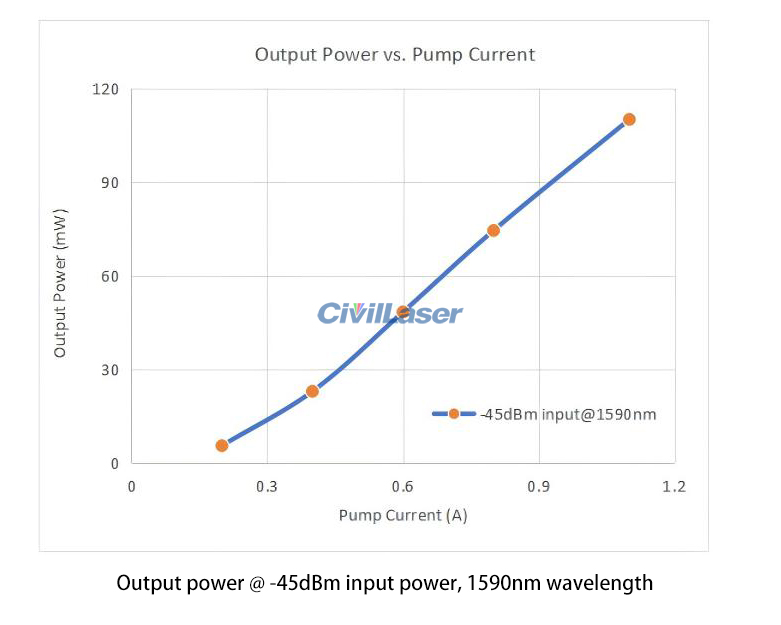

ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
|
Electrical and environmental parameters
|
Desktop Type
|
|
Control Method
|
Button
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
|
Power Supply
|
AC 100~240V
|
|
Size
|
260(W)×280(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
