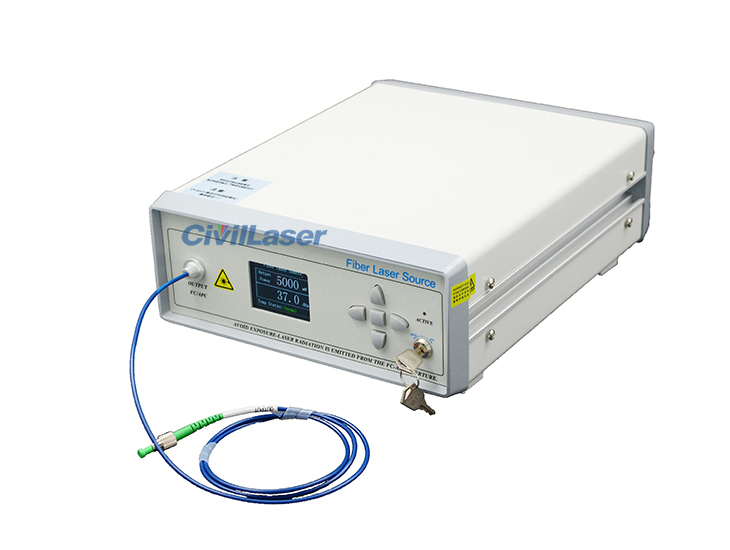

1550nm Single Frequency Nano-second Pulse PMFiber Laser Source Benchtop NL-NSFL-1550-20/1000-50-1/200-PM-B
This laser uses a single-frequency narrow-linewidth laser as a seed source, and cooperates with a high-power gain fiber module to output high-peak and high-energy single-frequency narrow-linewidth laser pulses. The laser wavelength and power are stable, and can be used for coherent lidar and optical fiber sensing. system etc.
[Features]
high pulse energy
Pulse width, repetition frequency and power are adjustable
[Applications]
Laser wind radar
Fiber optic sensing
[Specification]
Parameter |
Unit |
Value |
Remarks |
Model |
|
NL-NSFL-1550-20/1000-50-1/200-PM-B |
|
Center Wavelength |
nm |
1550±1 |
|
Spectral Line Width |
kHz |
≤3/≤100 |
|
Max Single Pulse Energy |
μJ |
10 |
@Pulse frequency=20kHz,
pulse width=200ns |
Max Output Peak Power |
W |
≥50 |
50W peak @pulse frequency = 20kHz,
pulse width = 200ns |
Max Average Laser Power |
mW |
100~200 |
@Pulse energy=10uJ,
pulse frequency=10~20kHz |

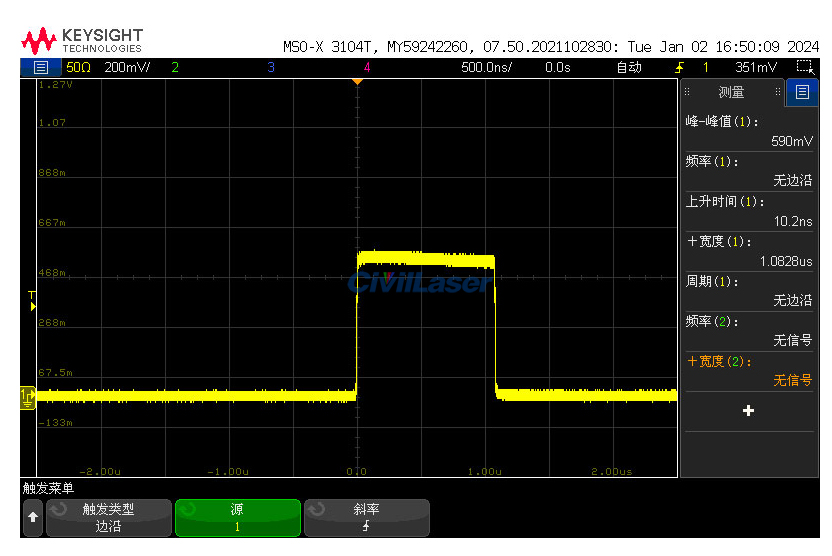

Pulse Width |
ns |
20~1000 Adjustable |
|
Repeat Frequency |
kHz |
1~200 Adjustable |
|
Pulse Turn-off Ratio |
dB |
≥60 |
|
Beam Quality M2 |
-- |
≤1.1 |
@When used with fiber collimator output |
Output isolation |
dB |
≥30 |
|
Short-term stability (15 minutes) |
dB |
≤ ±0.02 |
Equivalent≤±0.5% |
Long-term stability (8 hours) |
dB |
≤ ±0.05 |
Equivalent≤±1.2% |
Output laser polarization state |
-- |
Random/linear polarization |
|
Fiber Type |
-- |
PM1550 PM fiber laser |
900um casing, length 0.3m |
Interface Type |
-- |
FC/APC |
|
Electrical and Environmental Parameters |
Desktop Type |
Control Mode |
Button |
Communication Interface |
DB9 Female |
Trigger Mode |
TTL, internal trigger/external trigger (Choose) |
Power Supply |
AC 100~240V |
Size |
260(W)x320(D)x120(H)mm |
Operating Temperature |
-5 ~ +35°C |
Operating Humidity |
0~70% |
