1064nm Pulse 30W Peak Power Nanosecond Laser Benchtop SM Fiber Output NSFL-1064-30-SM-B
The nanosecond pulse laser adopts a unique circuit and optical optimization design. The output laser pulse width, peak power, and repetition frequency are all adjustable. The operating wavelength and power output are stable. The single-mode fiber output is modular and easy to integrate. It is suitable for laser measurement. distance, fiber optic sensing and other fields.
[Features]
Full fiber structure
Pulse width, repetition frequency, and power can be adjusted
[Applications]
Lidar
Nonlinear optics
Distributed Fiber Optic Sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
|
NSFL-1064-30-SM-B
|
|
|
Central Wavelength
|
nm
|
1064±2
|
|
|
Spectral Width
|
nm
|
≤1
|
|
|
Peak power
|
W
|
30
|
@100kHz,10ns
|
|

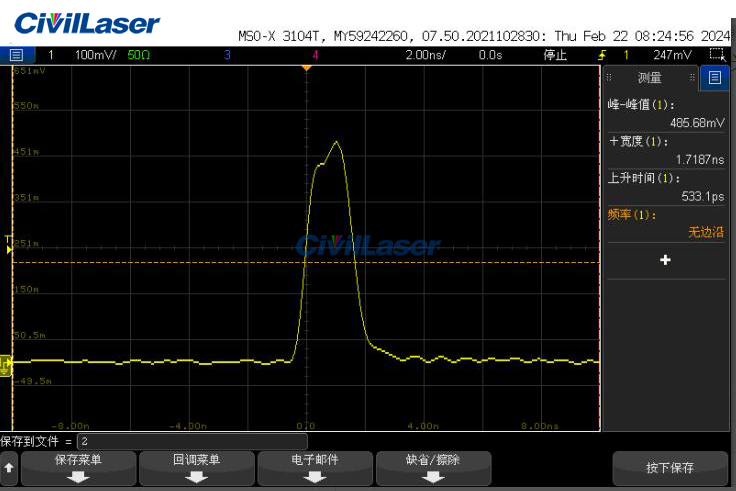

Pulse Width
|
ns
|
2~50 Adjustable
|
|
|
Repeat Frequency
|
kHz
|
1~1000 Adjustable
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (10 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Trigger Method
|
--
|
External trigger / Internal trigger
|
Choose
SMA interface
|
|
Pigtail Type
|
--
|
Hi060 single-mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
Note-Trigger:
Trigger Method - External trigger：
If it is an external trigger, it means that the customer needs to input a periodic clock signal to the laser source to trigger the laser light source from the outside in order to output a nanosecond periodic pulse signal.
|
Electrical and environmental parameters
|
Desktop Type
|
|
Control method
|
Button
|
|
Communication interface
|
DB9 Female
|
|
Power supply
|
AC 100~240V
|
|
Size
|
260(W)x280(D)x120(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
