1010nm~1080nm 20mW ASE Broadband Light Source Module Type ASE-1010/80-20-SM-M

Parameters

Unit

Typical value

Remarks

Model

ASE-1010/80-20-SM-M

Center Wavelength

nm

1040±2

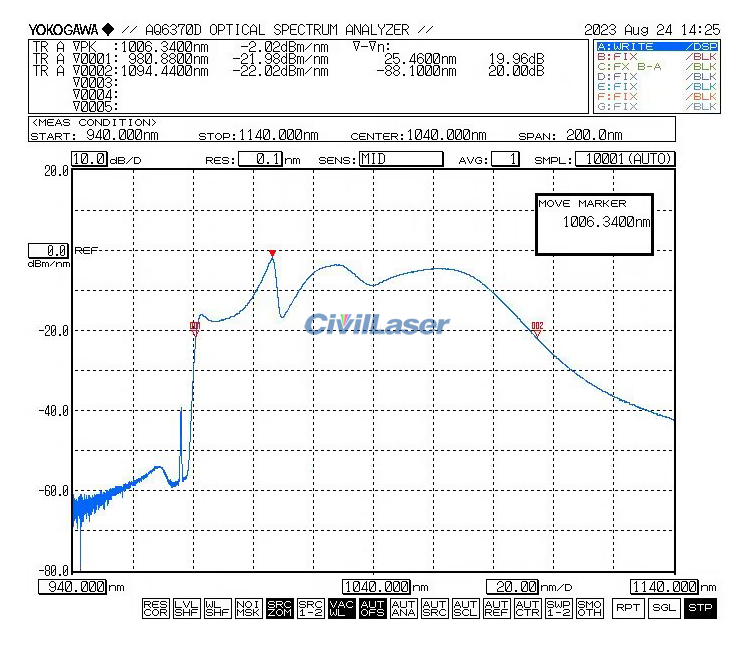

Spectral Range

nm

1010 ~ 1090 (@10dB)

Note:
Main wavelength: 1010nm ~ 1080nm
The laser power near the wavelength of 1100nm is very low.

Ouput Power

mW

20

Customizable

Output Isolation

dB

>35

Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

Polarization Extinction Ratio

dB

≤ 0.2

Pigtail Type

--

Hi 1060 Single mode fiber

L-=m

Pigtail Connector Type

--

FC/APC

Electrical and Environmental Parameters

Desktop Type

Module Type
(Current Product)

Control Method

Button

RS232 Serial communication

Communication Interface

DB9 Female(Default not include,
only for power Tunable ASE )

DB9 Female

Power Supply

100~240V AC, <30W

DC 5V, 3A

Size

260(W)×280(D)×120(H)mm

139(W)×260(D)×27(H)mm

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%
