Precision Grade φ74mm Metal Base Universal Bracket Collimator Holder Fiber Holder

Precision Grade φ74mm Metal Base Universal Bracket Collimator Holder Fiber Holder

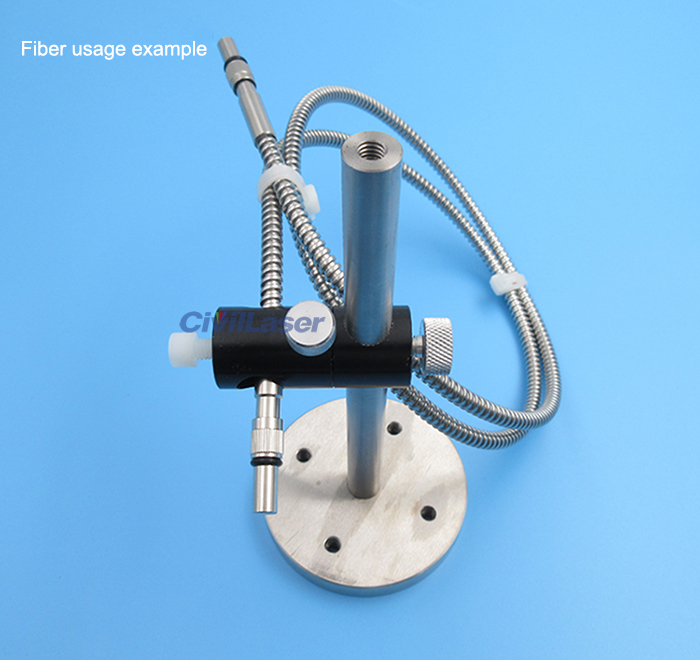

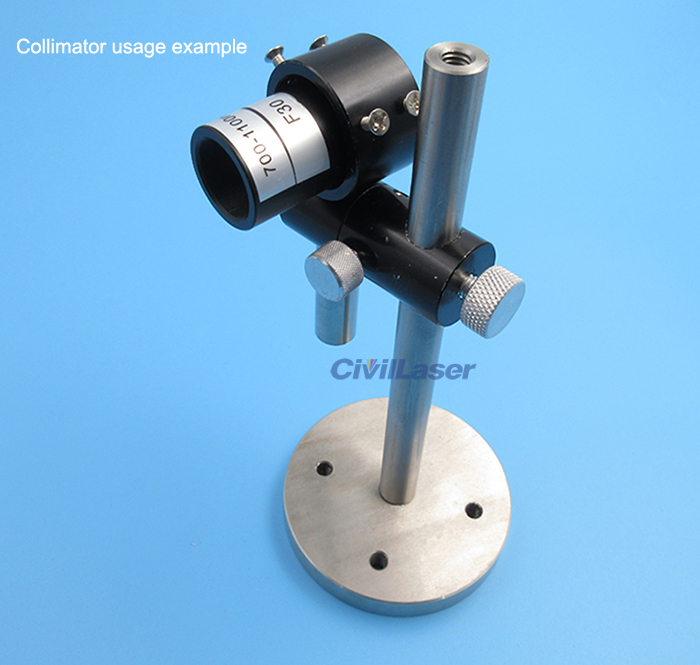

This bracket has good thermal conductivity and flexibility, allowing the fiber collimator/fiber coupling line to be installed on any vertical or horizontal plane and fine-tuned in three dimensions.

[Specification]

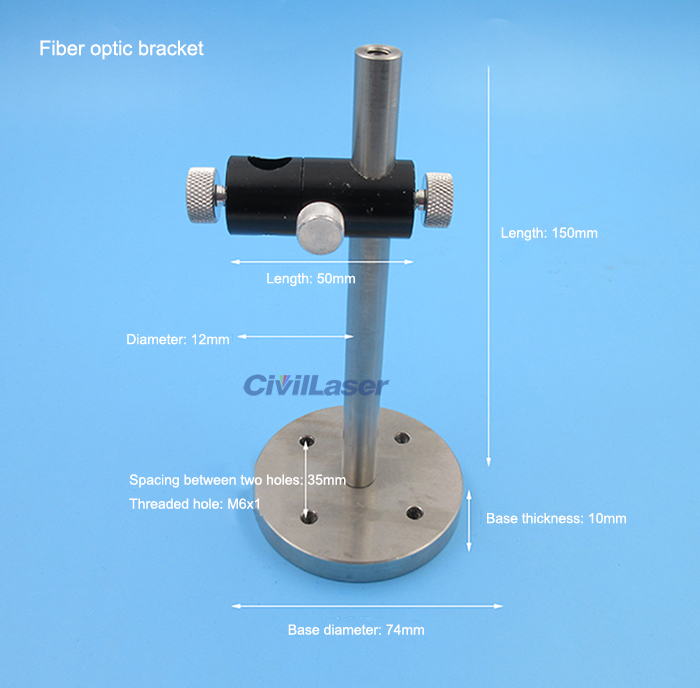

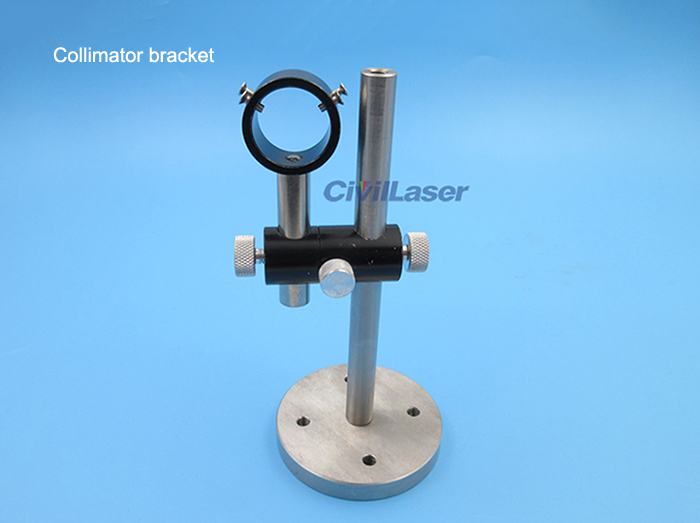

Product Name: Fiber Bracket / Collimator Bracket (Choose)
Base Diameter: φ74mm (can be customized)
Base Thickness: 10mm
Base Mounting Hole Size: M6*1mm
Base Mounting Hhole Spacing: 35mm
Vertical Rod Diameter: 12mm
Vertical Rod Length: 150mm (can be customized)

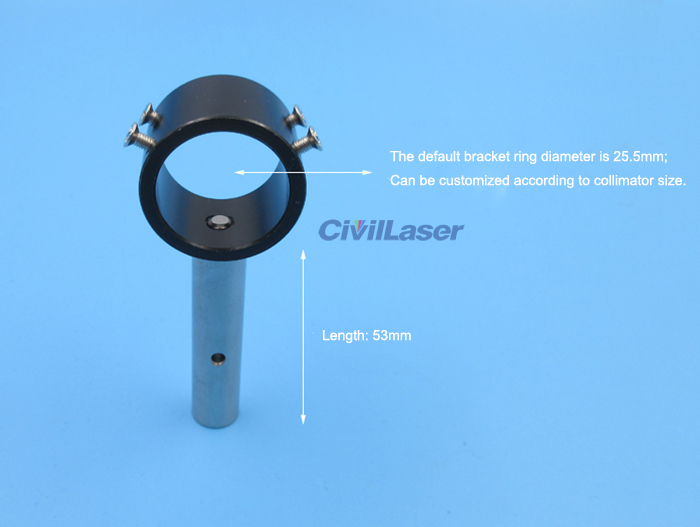

Ring Diameter: Default 25.5mm, other sizes can be customized.(Only for collimator bracket)
Crossbar Length: 50mm (Only for fiber bracket)

[Package Include]

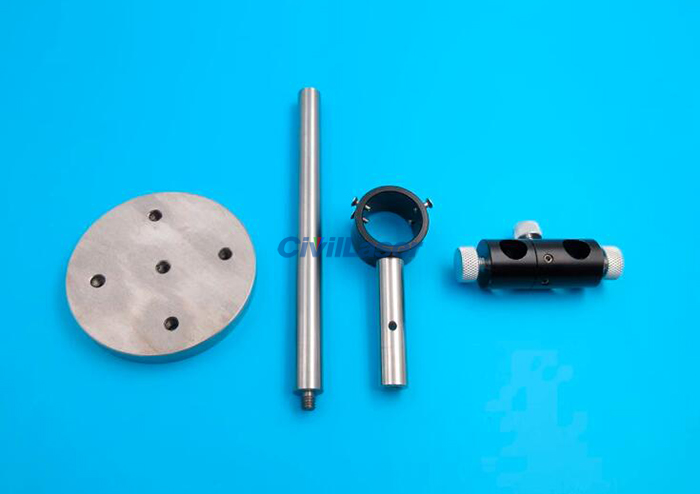

1 x Fiber bracket / Collimator bracket (Optional)
