916~1984nm Xenon Lamp Calibration Light Source XE-1 For Spectral Analysis Instruments

916~1984nm Xenon Lamp Calibration Light Source XE-1 For Spectral Analysis Instruments

The spectral wavelength calibration light source is the light source used for calibrating the spectrometer system. It produces xenon atomic emission lines in the wavelength range 916-1984 nm. Used to quickly and reliably calibrate spectroscopic analysis instruments!

[Features]
1. Use imported high-quality light bulbs with long lifetime and low power, only 3 watts;
2. Can be used in various optical fiber interface type spectrum analysis instruments for wavelength calibration;
3. Small size;
4. Wide wavelength range; SMA905 interface output;
5. Uses 12V 2A DC power supply and is equipped with a power adapter;
6. Full aluminum alloy shell;
7. The light source bulb is a consumable material, please replace it before its life span is reached;

[Specification]
Product Name: Xenon Lamp Calibration Light Source
Model: XE-1
Wavelength Range: 916~1984nm
Power Supply: DC 12V 2A
Interface: SMA905
Shell Material: Aluminum alloy
Size: 60*45*40mm
Lifetime: 3000 hours

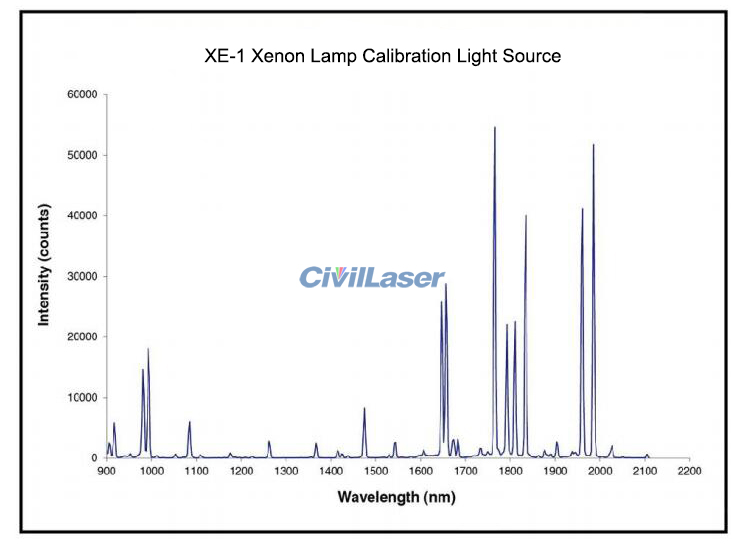

Spectral Graph:

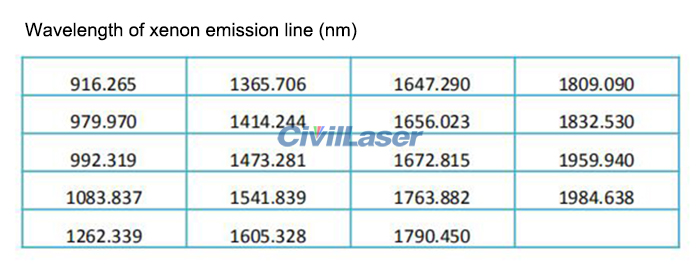

Wavelength of Xenon Emission Light (nm):

It can give all characteristic spectral lines of xenon from 916-1984 nm. Through the standard SMA905 or FC/PC interface, the light source can be quickly connected to the optical fiber, so the wavelength calibration of the fiber spectrometer can be very easy. In addition, we have wavelength calibrated light sources suitable for other bands, such as neon lamp NE-1 (340-1100nm) and mercury-argon lamp (253-1700nm)





CivilLaser’s calibrated light source characteristic curve value (150~1100nm range):
