90° 639nm 220mW /520nm 150mW /450nm 500mW Red/Green/Blue Laser Diode Module Circle
[Features]
1. The power supply is adjustable and the brightness can be adjusted;

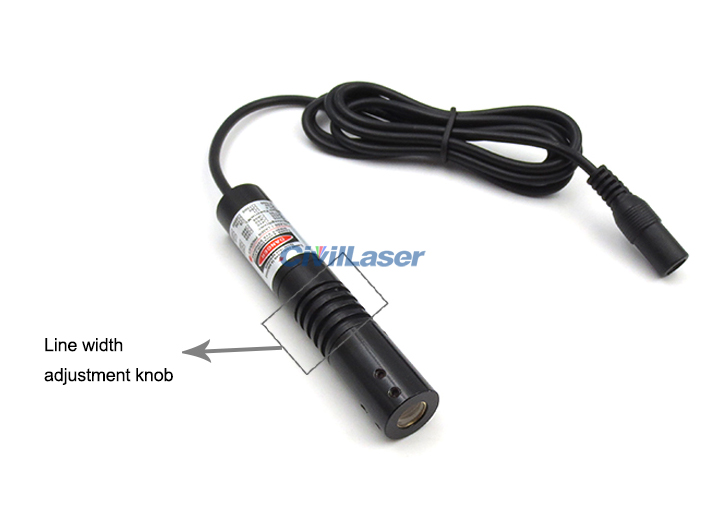

2. Adjustable line width, external adjustment, simple and convenient; when adjusting line width thickness, the position of the line remains unchanged, accurate and reliable; after adjusting the line width, the locking knob can be used to lock the lamp head, which is shock-proof and anti-fall;
3. The lens angle is optional from 5 degrees to 120 degrees, and the diameter of the large circle can be customized;
4. The light is clear and bright, soft and non-glaring;
5. Extremely high stability and can be turned on 24 hours a day;
6. Intelligent driver board with imported IC can supply power in a wide range, other voltages can be customized;
7. The interior is filled with heat-dissipating silica gel and AB glue, which can not only fully dissipate heat, but also be shock-proof and anti-fall;
8. The shell is made of aviation aluminum with insulating paint, which can not only fully dissipate heat, but also be shock-proof, drop-proof and anti-static;
9. High temperature resistant and corrosion resistant wires, suitable for use in all weather and all environments.
[Specifications]

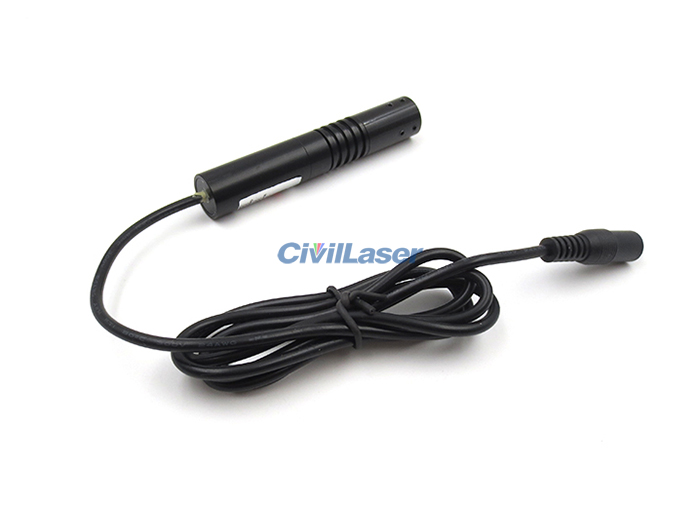

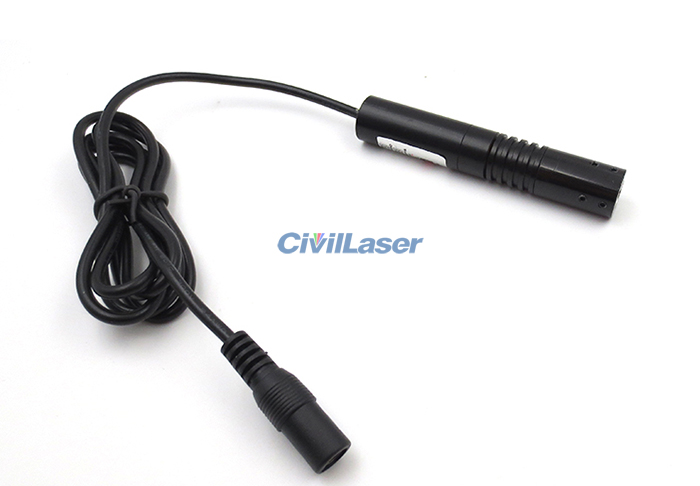

Product Name: Laser module

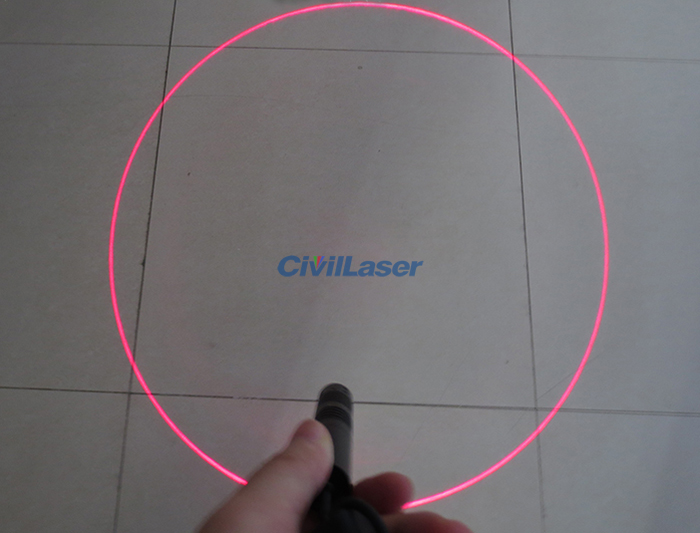

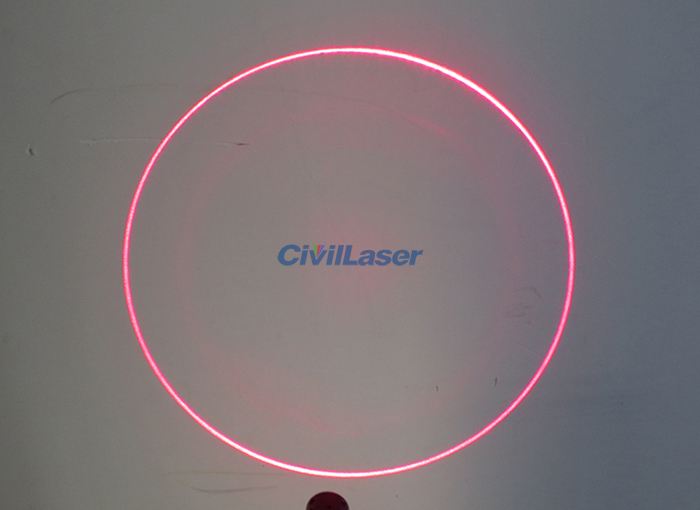

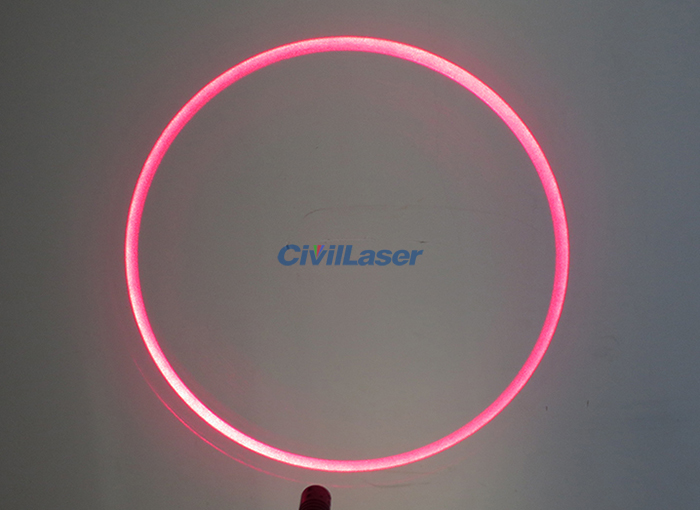

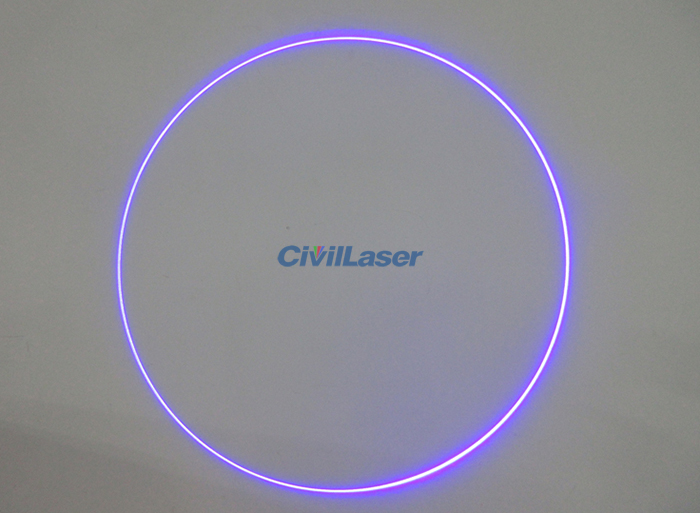

Laser Shape: Circle

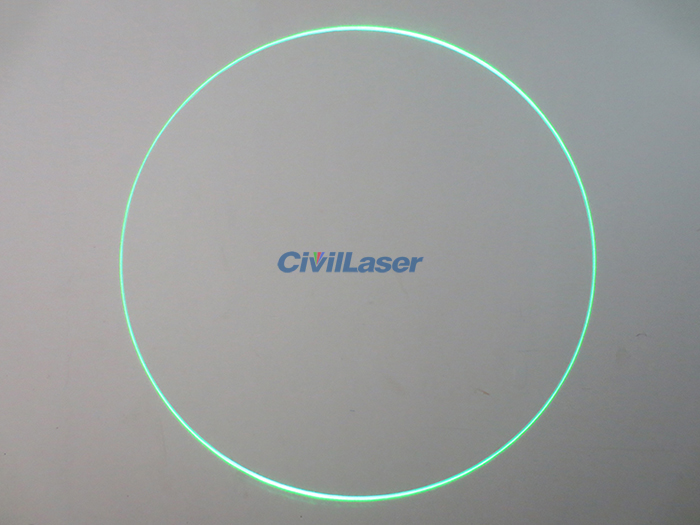

Laser Color: Red-639nm / Green-520nm / Blue-450nm (Choose)
Output Power: Red-220mW / Green-150mW / Blue-500mW
Lens Angle: 90°

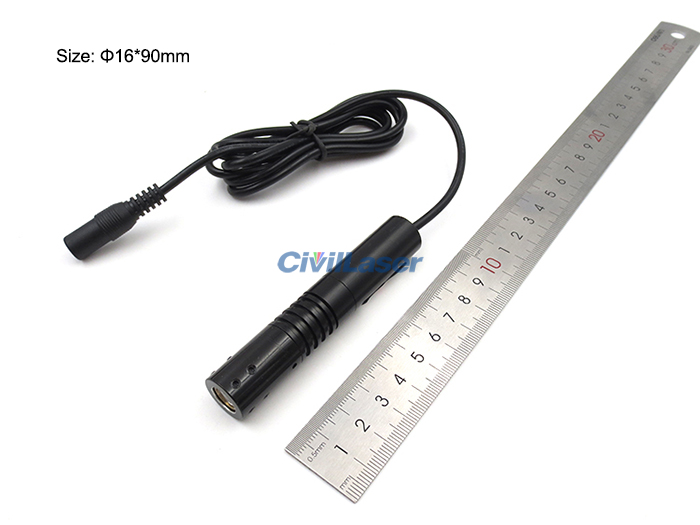

Size: Φ16*90mm

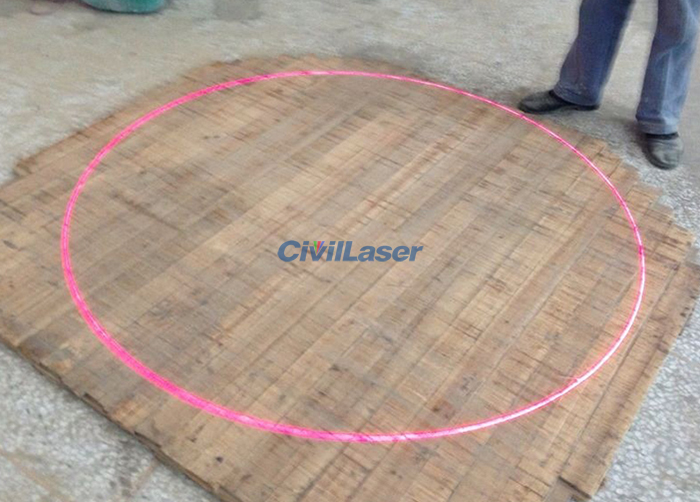

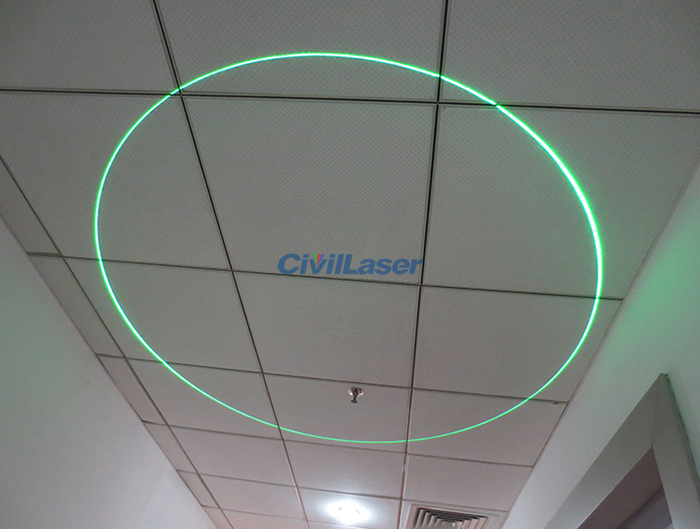

Circle diameter: illumination distance = 2:1
Installation height is 1m, Φ=~2m.
Installation height is 5m, Φ=~10m.
639nm 220mW Laser Module
Working voltage: DC 2.8-3.2V
Working current: ≤300mA
Installation height: 0-5 meters
520nm 150mW Laser Module
Working voltage: DC 9-25V
Working current: ≤800mA
Installation height: 0-10 meters
450nm 500mW Laser Module
Working voltage: DC 9-25V
Working current: ≤600mA
Installation height: 0-5 meters

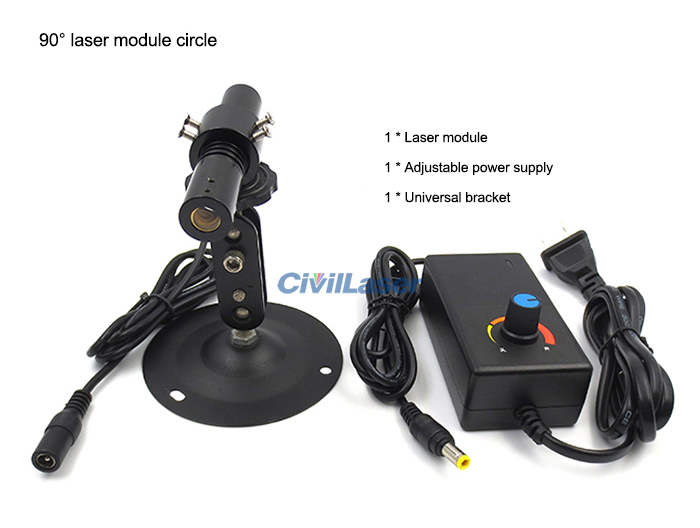

[Package Include]
1 X Laser module
1 X Adjustable power supply
1 X Universal bracket
