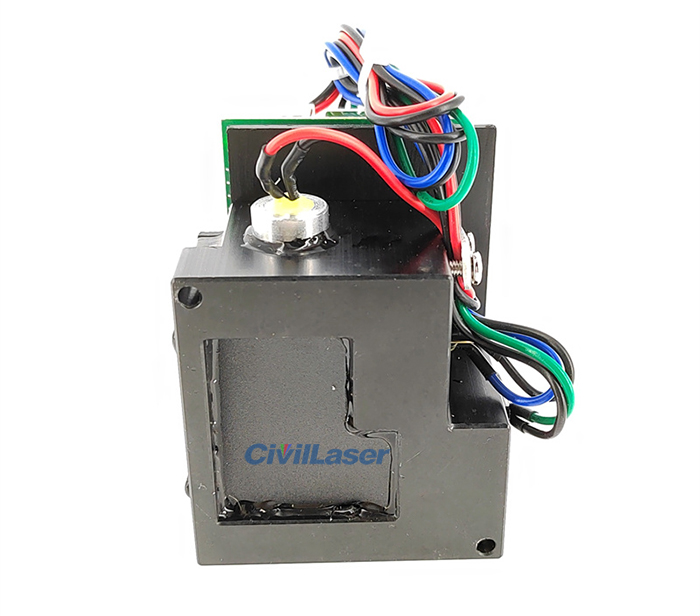

445nm/520nm/638nm RGB 3000mW Synthetic White Laser Module TTL Modulation

445nm/520nm/638nm RGB 3000mW Synthetic White Laser Module TTL Modulation

[Features]
Good light spot quality
Stable performance
High modulation efficiency
Lightweight, convenient and easy to integrate

[Applications]
Stage lighting
Laser projection
Outdoor lighting
Laser positioning
Laser communication
Spectral analysis

[Specification]
Product Name: RGB laser module
Wavelength: R-638±5nm, G-520±5nm, B-445±5nm
Output Power: R-600mW, G-900mW, B-1500mW
TTL Output Power@>1KHz: =CW power x 40%
Output Stability: ±5%
Spot Mode: Nearly circular spot
Spot Size @3m: Φ3mm
Beam Divergence: <2 mrad
Power Board Input Voltage: DC 12V
LD Input Voltage: R-3.3V, G-5V, B-5V
LD Input Current: R-850mA, G-2200mA, B-1500mA

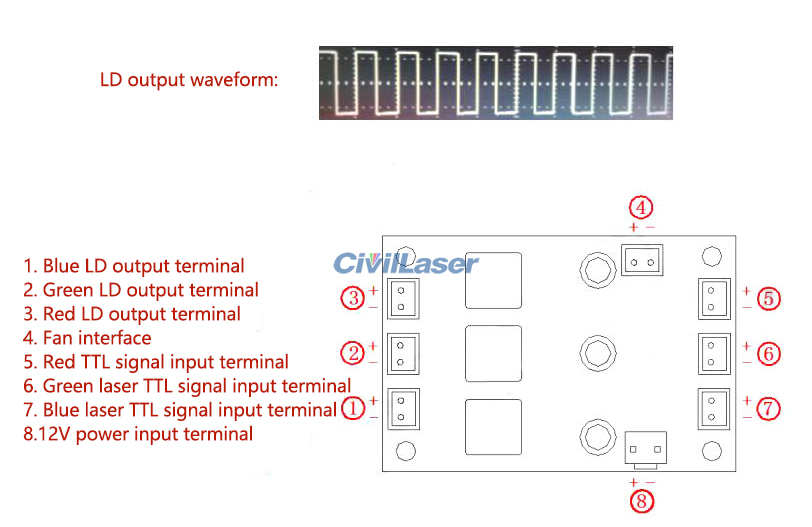

Modulation Mode: TTL
TTL Trigger Mode: Active high level (>DC 2V)
Modulation Frequency: < 30KHz
Signal Modulation Voltage: DC 0~5V
Operating Temperature: -10~40℃
Warm-Up Time: < 1 minute
Working Time: >8000 hours
Weight: About 200g
