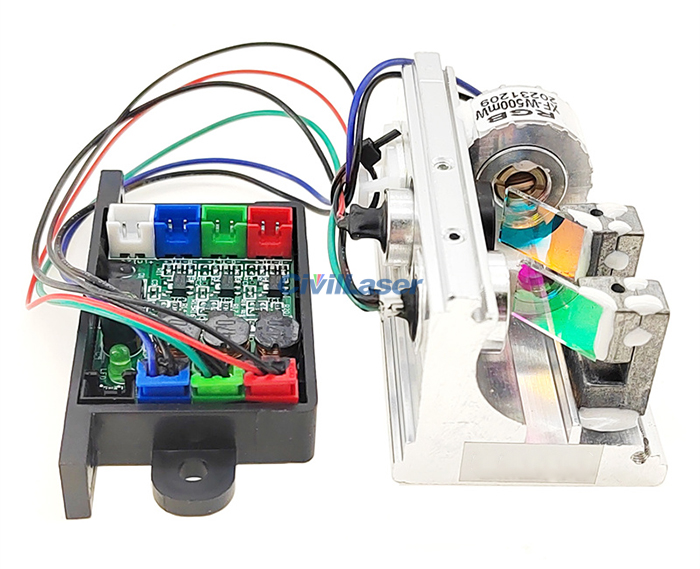

638nm 520nm 450nm RGB Synthetic White Laser Mdoule 500mW Laser TTL Modulation

638nm 520nm 450nm RGB Synthetic White Laser Mdoule 500mW Laser TTL Modulation

[Features]
Lightweight, convenient and easy to integrate
Good spot quality
Stable performance
High modulation efficiency

[Applications]
Stage lighting
Laser projection
Outdoor lighting
Laser positioning
Laser communication
Spectral analysis

[Specification]

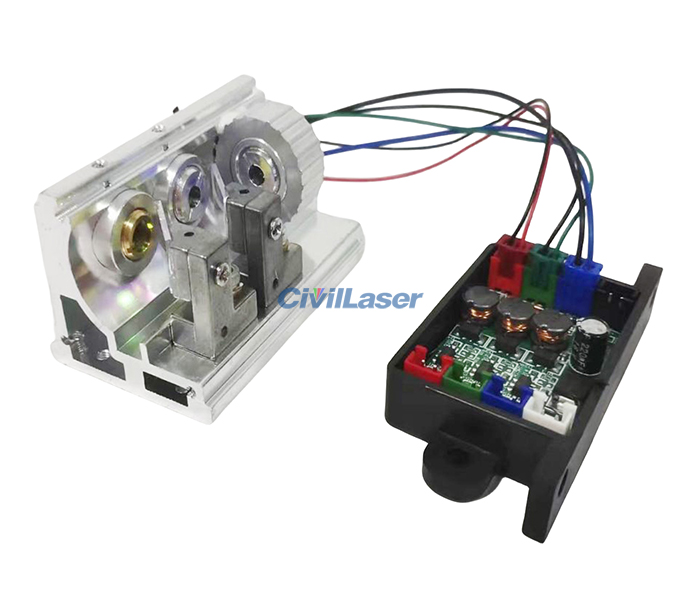

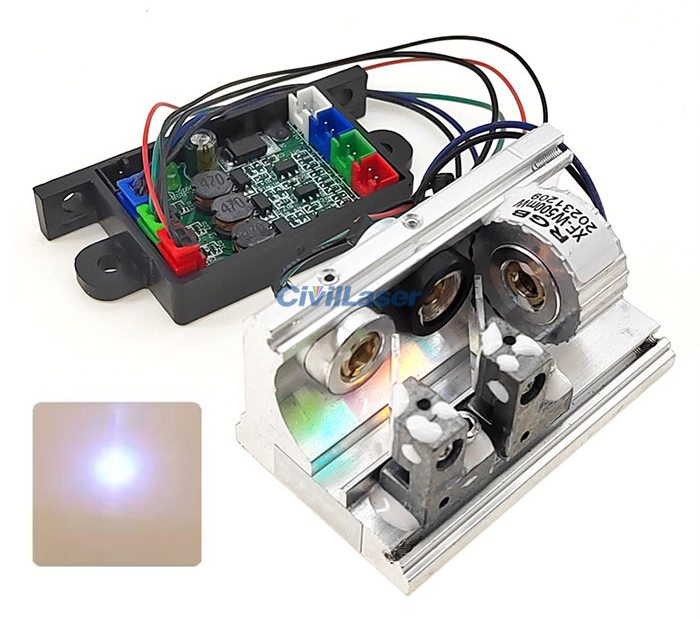

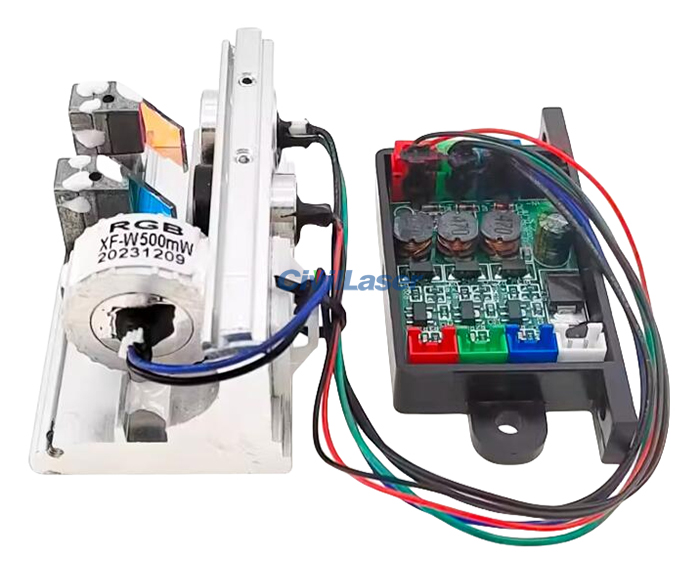

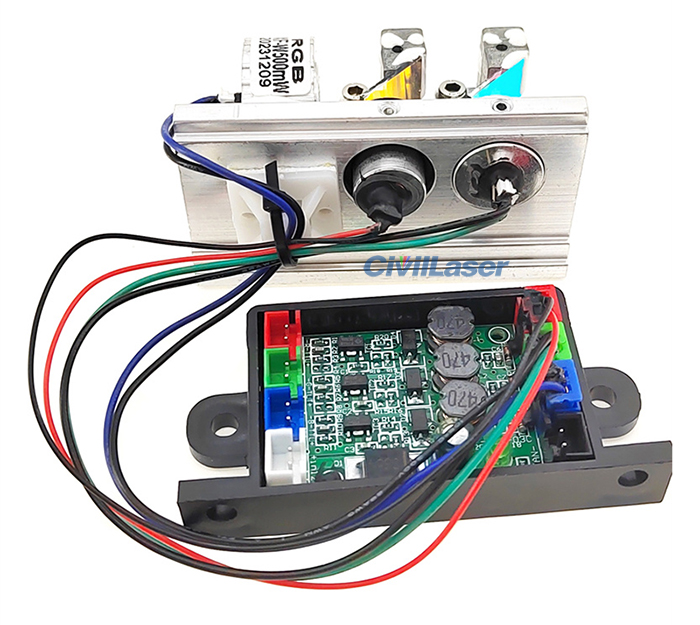

Product Name: RGB laser module
Wavelength: R-638nm, G-520nm, B-450nm
Output Power: 500mW (Total RGB power)
Transverse Mode: Multimode
Working Mode: CW / TTL
Beam Divergence: <8mrad
Light Outlet Spot Size: Near 5.5mm
Power Stability: ±2%

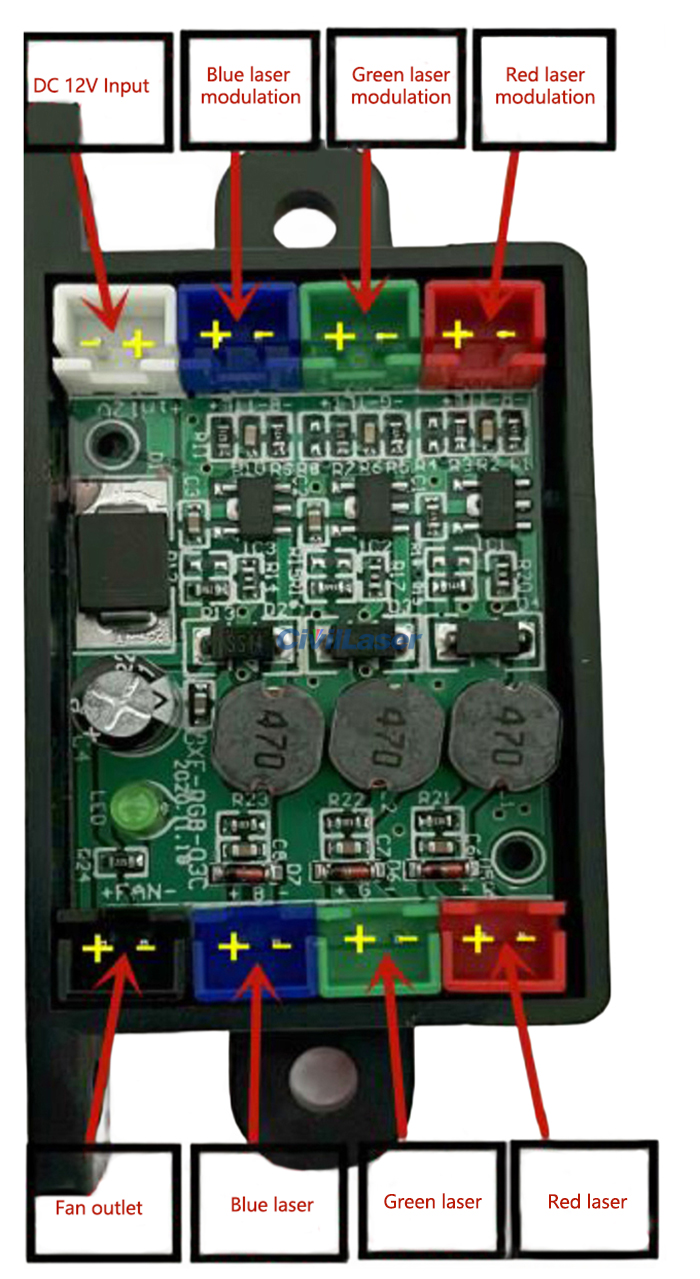

Input Voltage/Current: DC12V/0.4A (The whole machine power is 5W)
Modulation Frequency: 0~20KHz TTL
Optimum Operating Temperature: 11~35℃(A cooling system must be installed when working above 50℃.)
Storage Temperature: -20~50℃

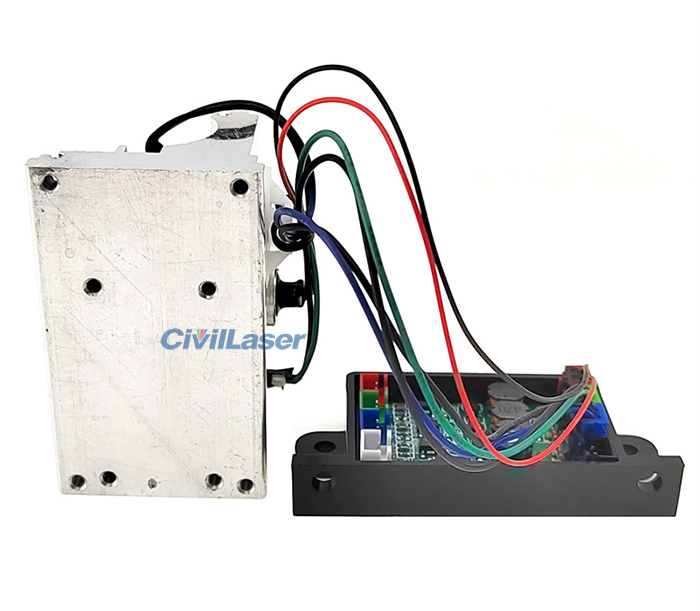

Cooling Mode: An additional radiator is required for heat dissipation.
Working Life: 10000~12000 hours

[Packaeg Include]
1 x Laser module
1 x Power supply
1 x Adapter
