532nm 50mw-150mw TTL Modulation Green Laser Module Dot

532nm 50mw-150mw TTL ModulationGreen Laser Module Dot

532nm 50mw Green laser module
[Specifications]
Name: 532nm TTL Green laser module Dot
Output wavelength:532nm
Output power:50mw
Beam Divergence: <1.2mrad
Operating Voltage: DC 12V
Beam circularity:>0.9
Light height:15mm
Beam diameter:<3mm
Operating Temperature:0°C~40°C
Laser Size:55mm*30mm*30mm(L*W*H)
Power Size:72mm*36mm*11.6mm(L*W*H)
Modulation: TTL modulation (0-20k)
Warranty:1 year

------------------------------------------------------------------------------------

532nm 100mw Green laser module
[Specifications]
Name: 532nm TTL Green laser module Dot
Output wavelength:532nm
Output power:100mw
Beam Divergence: <1.2mrad
Operating Voltage: DC 12V
Beam circularity:>0.9
Light height:15mm
Beam diameter:<3mm
Operating Temperature:0°C~40°C
Laser Size:55mm*30mm*30mm(L*W*H)
Power Size:72mm*36mm*11.6mm(L*W*H)
Modulation: TTL modulation (0-20k)
Warranty:1 year

------------------------------------------------------------------------------------

532nm 150mw Green laser module
[Specifications]
Name: 532nm TTL Green laser module Dot
Output wavelength:532nm
Output power:150mw
Beam Divergence: <1mrad
Operating Voltage: DC 12V,0.36A
Beam circularity:>0.9
Light height:20mm
Operating Temperature:0°C~40°C

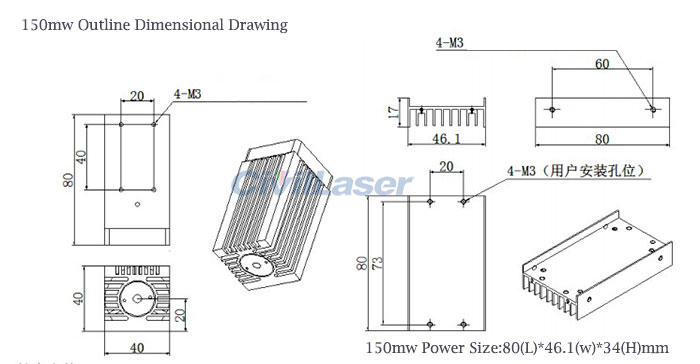

Laser Size:80mm*40mm*30mm(L*W*H)
Power Size:80mm*46.1mm*34mm(L*W*H)
Modulation: TTL modulation
Warranty:1 year

[Tips]
Laser and power supply should avoid strong impact and vibration
Do not use laser direct exposure to people and animals, especially the eyes of light sensitive organs, or easy to damage
Please do not disassemble the laser and power supply, where the unauthorized removal is not within the scope of warranty
