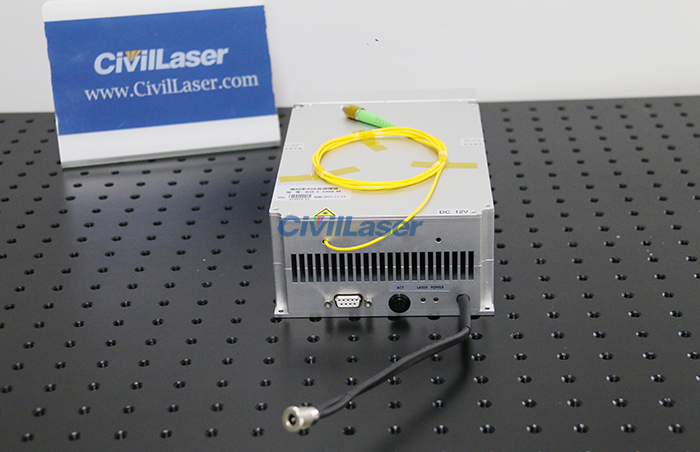

ASE-2000-100-SM-M 2000nm Band 100mW ASE Broadband Light Source SM Fiber Laser Module
Note(2024-10-16):
This product has been upgraded. Below is the link to the new upgraded product.
New ASE-2000-100-SM-M ASE Light Surce

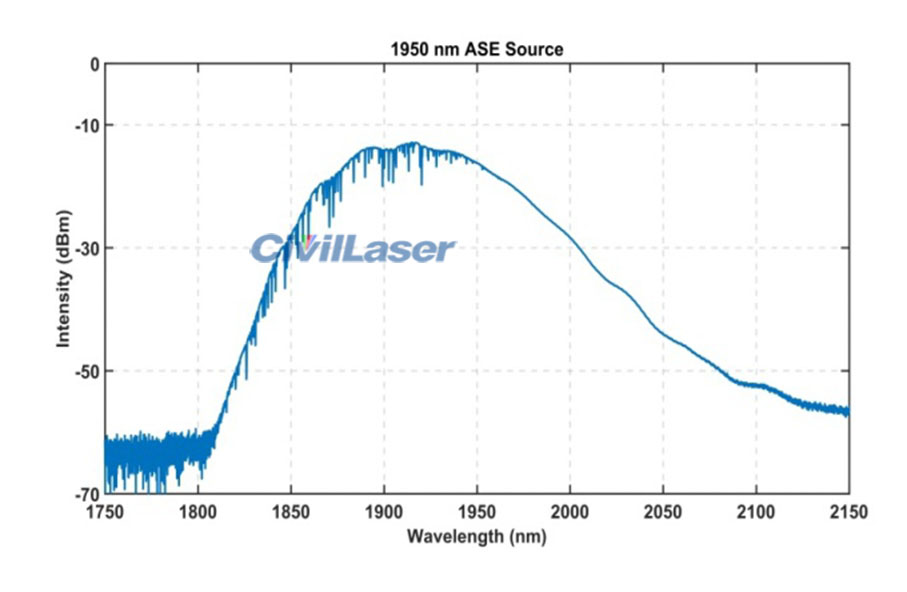

The 2000nm band ASE broadband light source is based on thulium fiber laser technology, with high output power and a spectrum covering 1850~2000nm, suitable for laser biology, spectral measurement and other applications.
Note: 4~8 weeks lead time.
[Features]
Spectrally flat
Mid-infrared band
High stability output power
[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-2000-100-SM-M
|
|
|
Spectral Range
|
nm
|
1850~2000
|
|
|
Ouput Power
|
mW
|
100
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
Φ=2mm loose tube, L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|

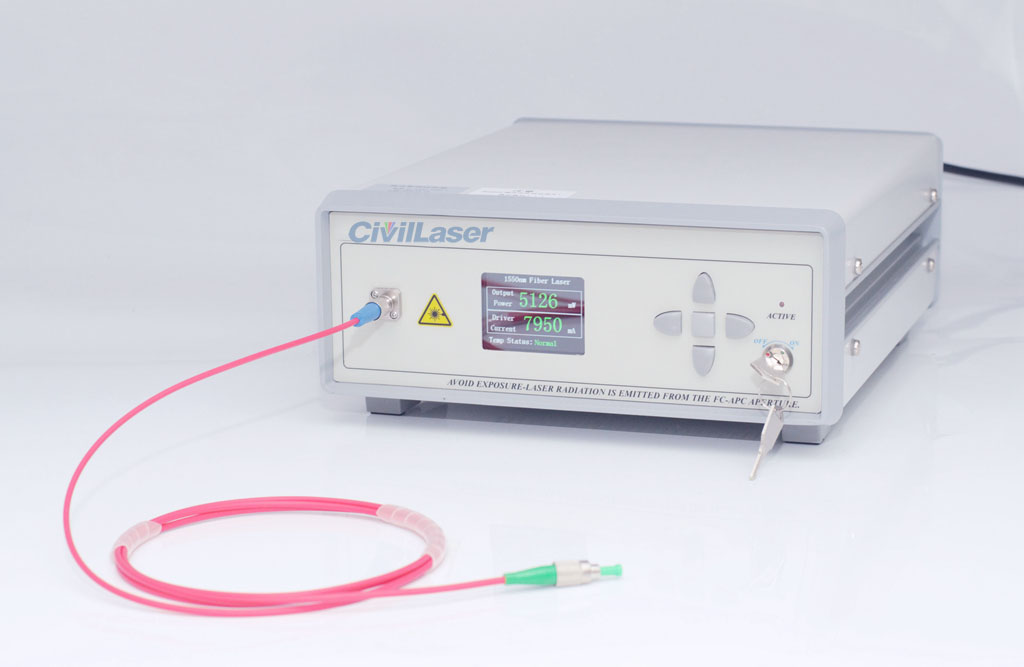

Desktop Type
|

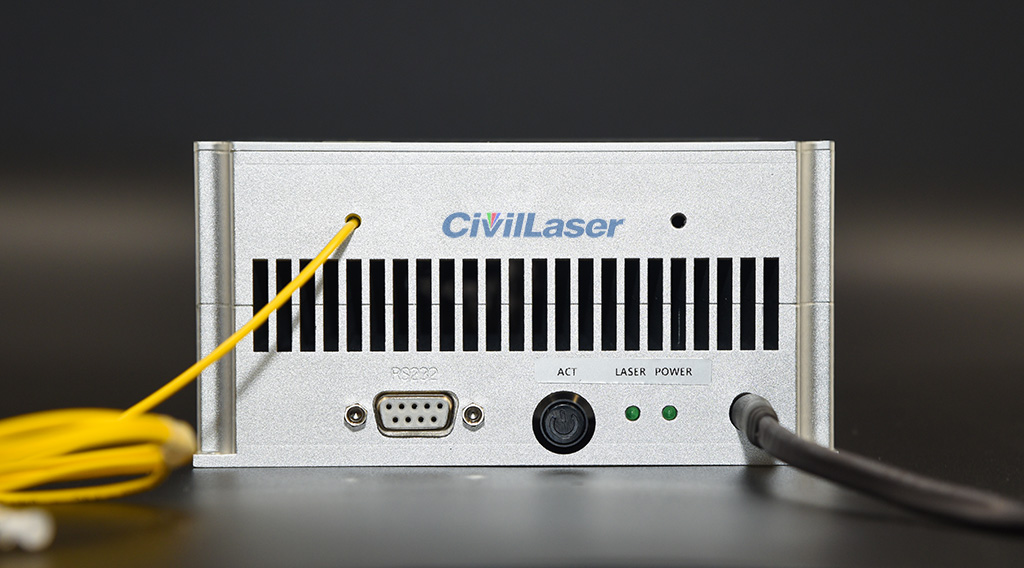

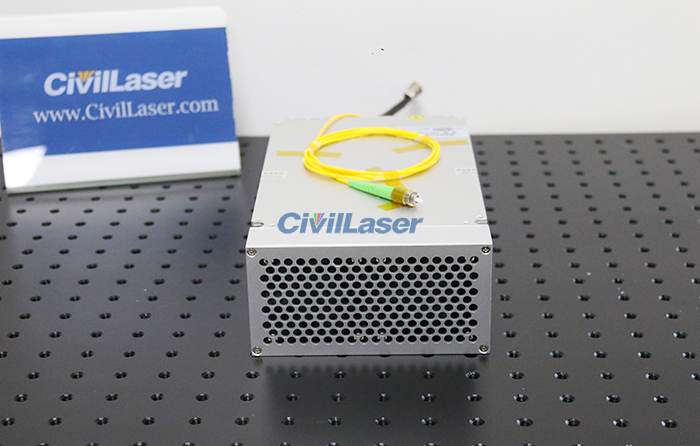

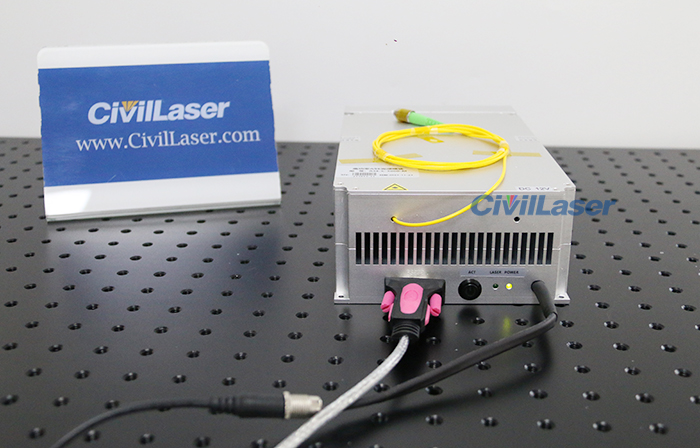

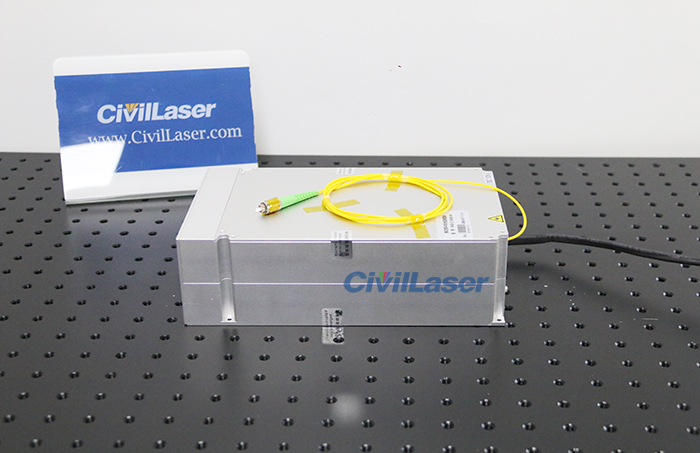

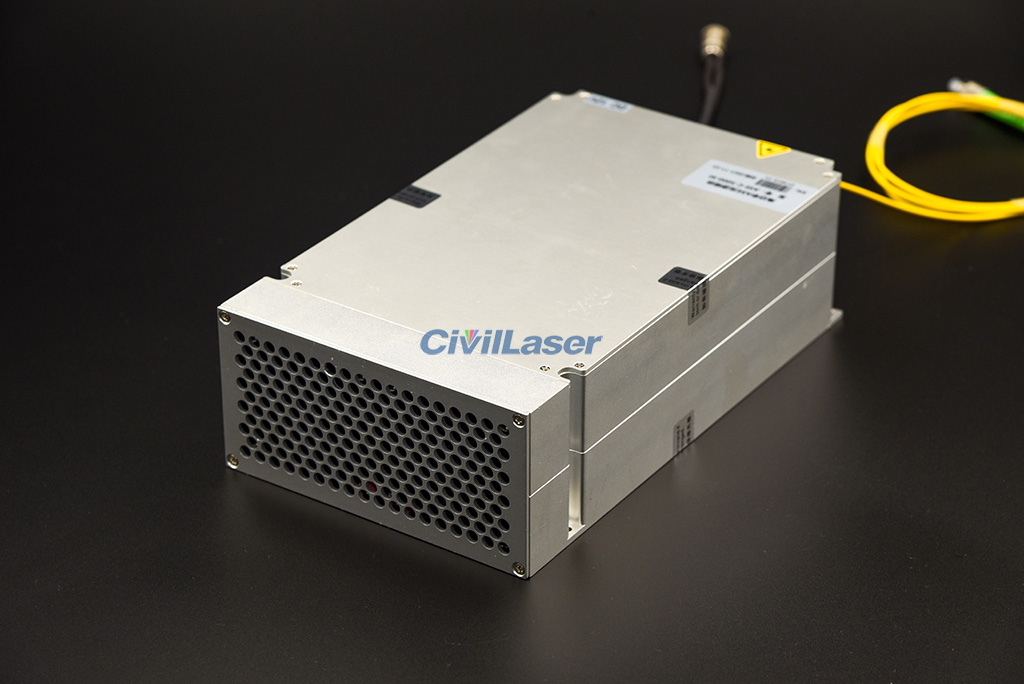

Module Type
(Current product)
|
|
Control Method
|
Button
|
RS232 Serial communication
(Only for power Tunable ASE)
|
|
Communication Interface
|
DB9 Female(Default not include,
only for power Tunable ASE )
|
DB9 Female
(Only for power Tunable ASE)
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 3A
|
|

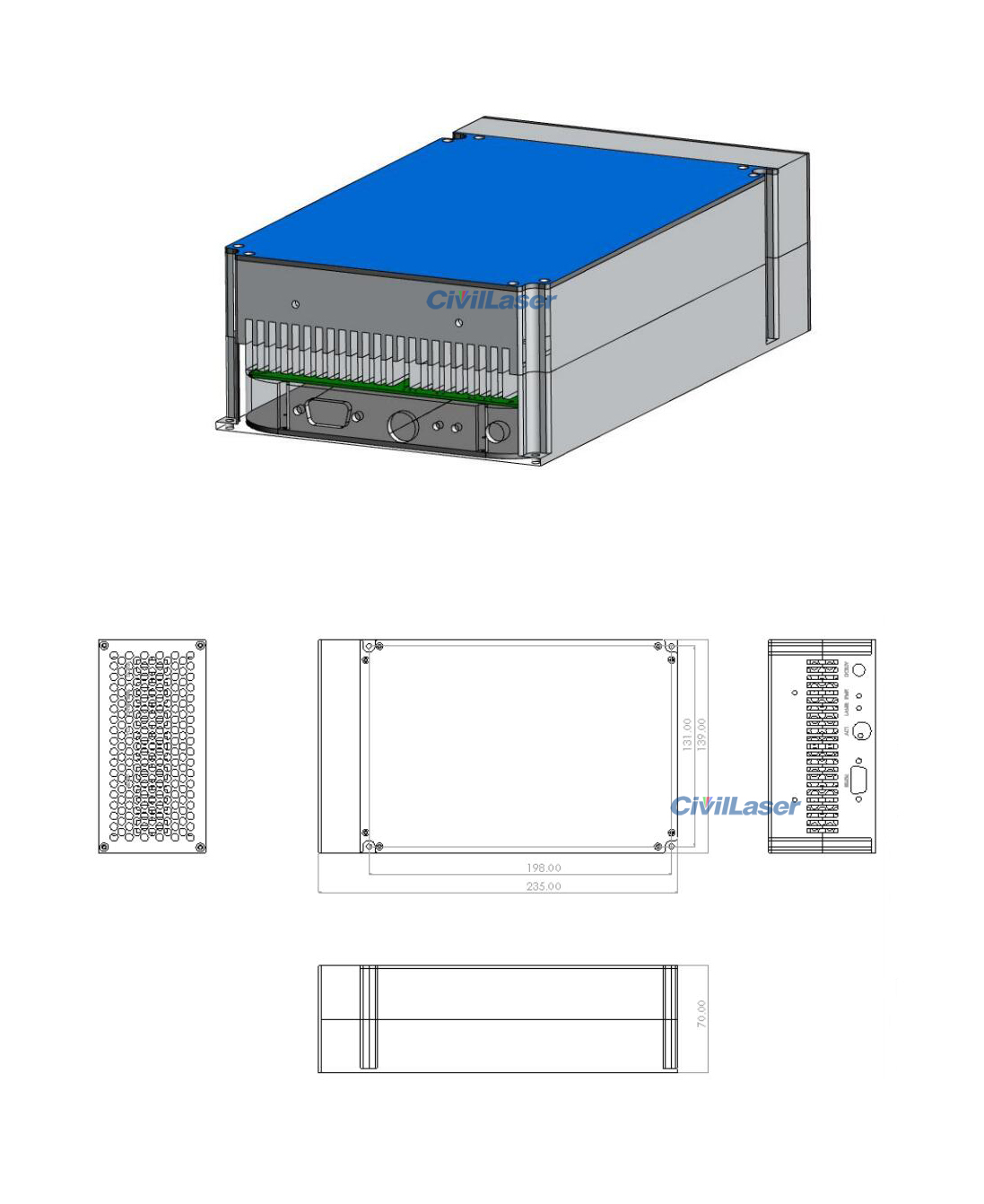

Size
|
260(W)×320(D)×120(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
