C++ Band 200mW ASE Broadband Light Source SM Fiber Laser Source Module Type ASE-C++-200-T-SM-M
The C++ band ASE broadband light source expands the wavelength range on the basis of the C-band ASE broadband light source, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), the spectral flatness is better than 2.5dB, and the output is through single-mode fiber or polarization-maintaining fiber , suitable for applications such as fiber optic sensing.
[Features]
Spectrum flat
Power adjustable
Broader spectral range
[Applications]
Fiber optic sensing
Medical imaging
Production test
[Specification]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
|
ASE-C++-200-SM-M /
ASE-C++-200-T-SM-M |
T: Tunable power |
|

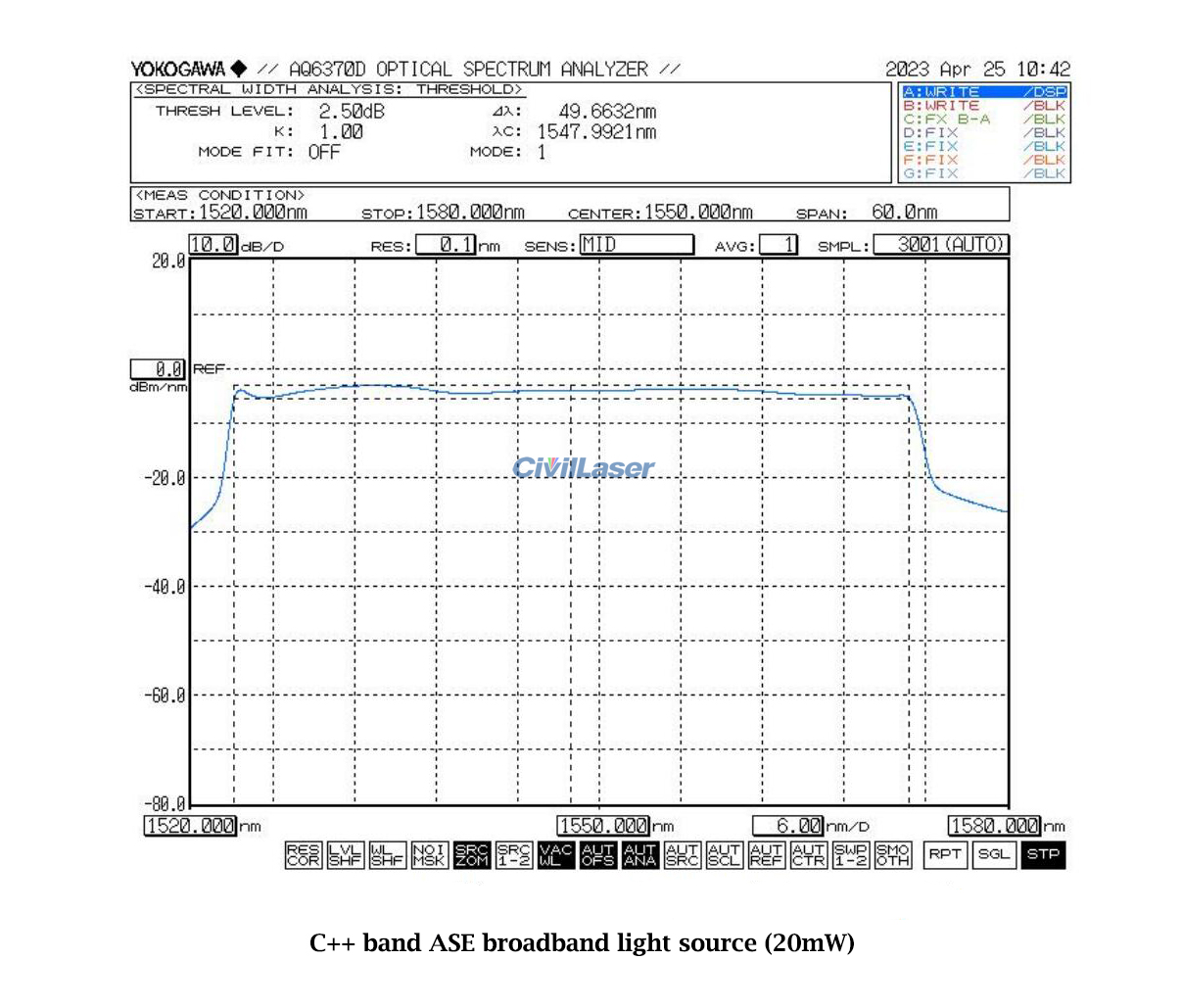

Spectral Range
|
nm |
1524~1572 |
2.5dB spectral range |
|
Ouput Power
|
mW |
200 |
|
|
Spectral Power Density
|
dBm/nm
|
≥6
|
|
|
Power Adjustable Range
|
-- |
10%~100% |
Optional function, spectral flatness maintenance |
|
Spectral Flatness
|
dB |
≤2.5 |
|
|
Output Isolation
|
dB |
>35 |
|
|
Short-term Stability (15 minutes)
|
dB |
≤ ±0.02 |
Equivalent≤±0.5% |
|
Long-term Stability (8 hours)
|
dB |
≤ ±0.05 |
Equivalent≤±1.2% |
|
Polarization State
|
dB |
≤ 0.2 |
PM fiber PER: ≥23dB |
|
Pigtail Type
|
-- |
SMF-28e single-mode fiber |
Φ=3mm loose tube, L=1m |
|
Pigtail Connector Type
|
-- |
FC/APC |
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
Module Type
(Current Product)
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 5V, 3A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
.jpg)

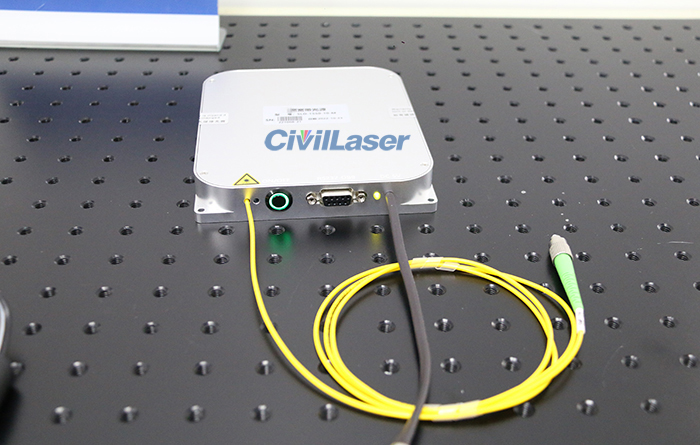

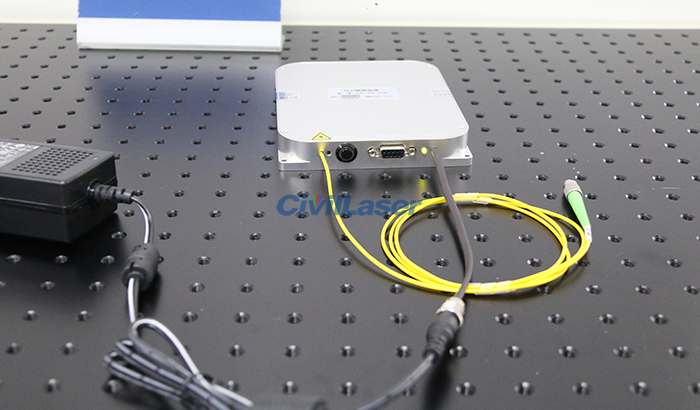

Latest Product Image(Updated on October 22, 2024):
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
