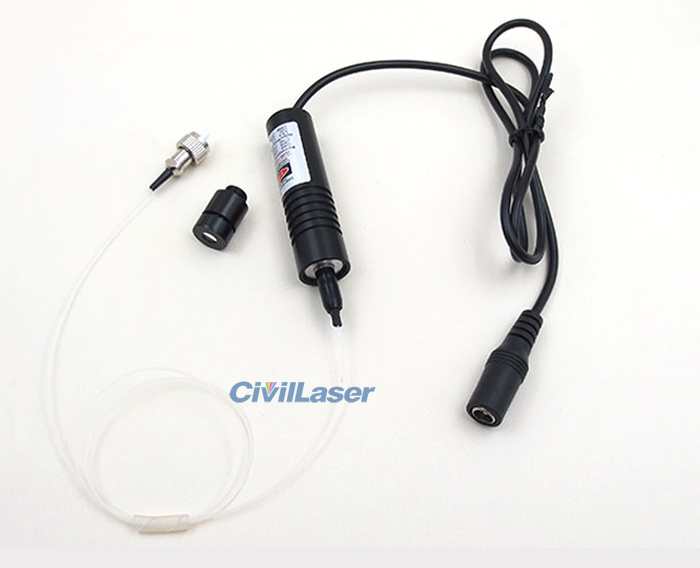

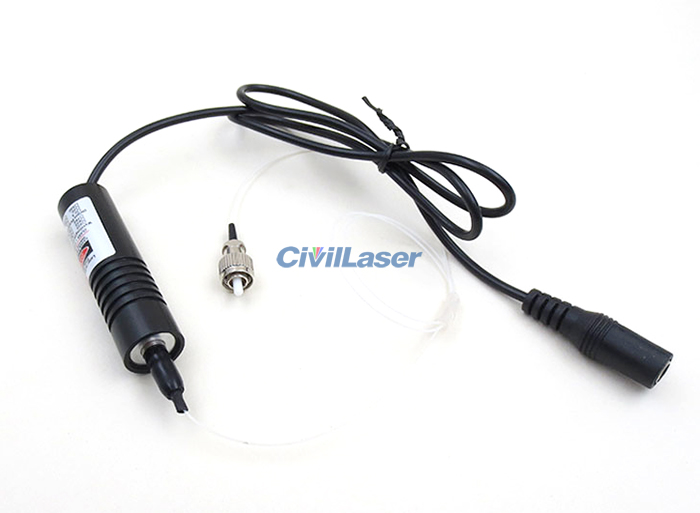

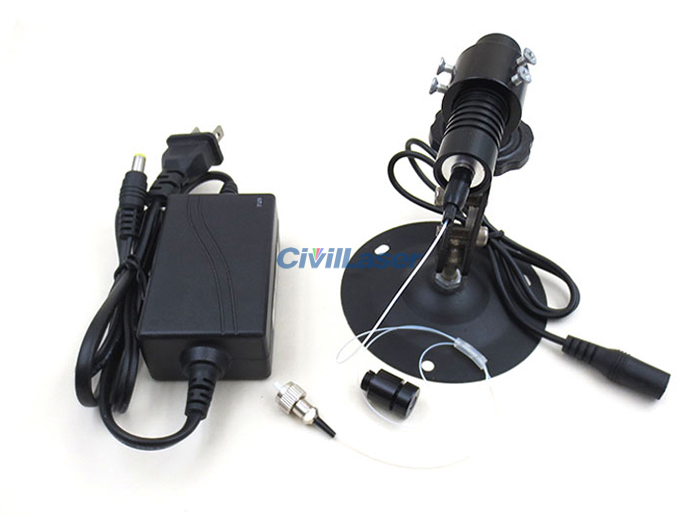

650nm 100mw Single mode fiber coupled Red laser module with FC interface

650nm 100mw Single mode fiber coupled Red laser module with FC interface

Specifications：
Output wavelength: 650nm
Core power: 100MW
Exit pupil power: About 30MW, the power is about 10MW after connect the optical fiber
Operating voltage: DC 2.8V~3.2V
Working current: 200mA
Optical lens: optical coating glass lens (import)
Fiber interface: FC/PC
Fiber length: 0.5m
Fiber type: single mode fiber

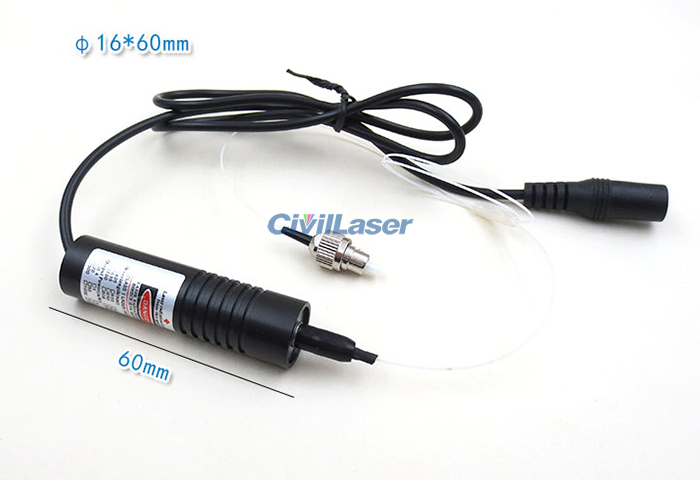

Dimensions: 16*60mm
Operating temperature: -10°C ~ 50°C
Storage temperature: -40°C ~ 85°C

Advantage：
1, The laser almost no temperature after optical fiber jumper, it is similar to cold light source, more safe and more stable performance;
2, The fiber because of its flexibility can make the laser emitting end of flexible, mobile use and more convenient;
3, We can make better mode of laser beam shaping, beam is Gauss distribution;
4, It can be used in laser beam integration to improve output power;
5, The 1-3V with adjustable power supply can control the laser intensity.
