24V 1mW 650nm Red Dot laser module positioning laser transmitting tube industry

Starting at: $28.00

Please Choose:





Add to Cart:
Min:  3

24V 1mW 650nm Red Dot laser module positioning laser transmitting tube industry

SPECIFICATIONS:
Name:  24V 1mW 650nm Red Dot laser module
Output Wavelength: 650nm ±5nm
Output Power: <1mw(can be customized)
Class level: Class IIIA
Laser Shape: Dot
Range: <100 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Red laser
Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC

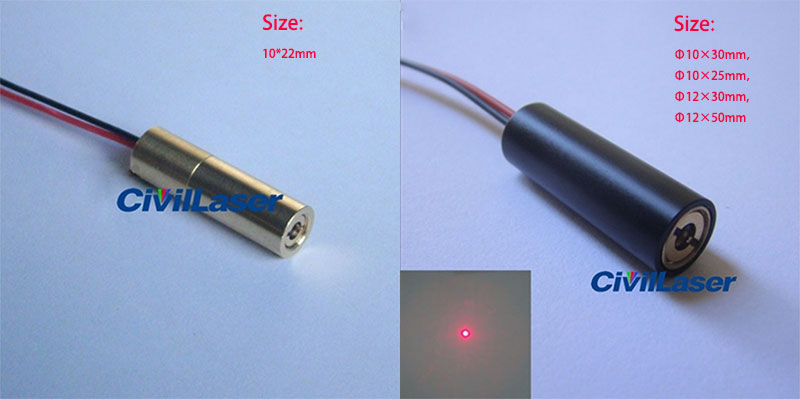

Size: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
Operating Voltage:  DC=24V
Operating current: I<25mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >5000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty



24V 1mW 650nm Red Dot laser module positioning lase

24V 1mW 650nm Red Dot laser module positioning lase

24V 1mW 650nm Red Dot laser module positioning lase

24V 1mW 650nm Red Dot laser module positioning lase
24V 1mW 650nm Red Dot laser module positioning lase
