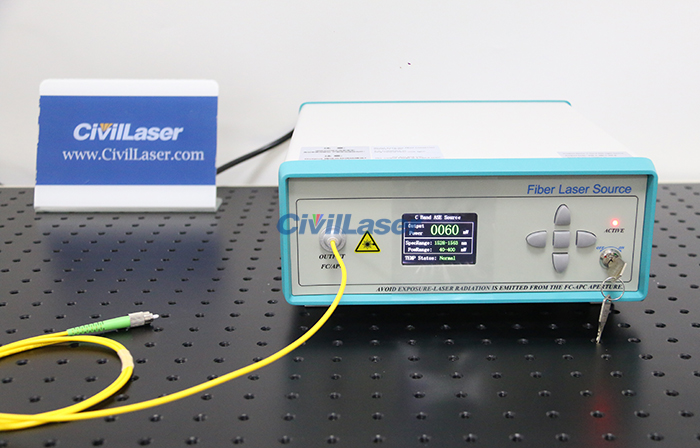

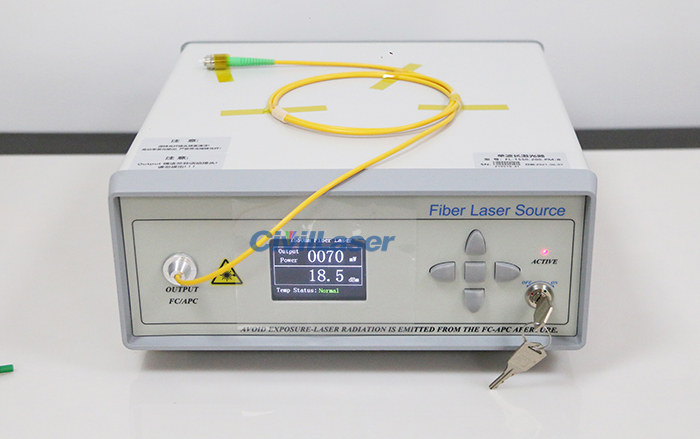

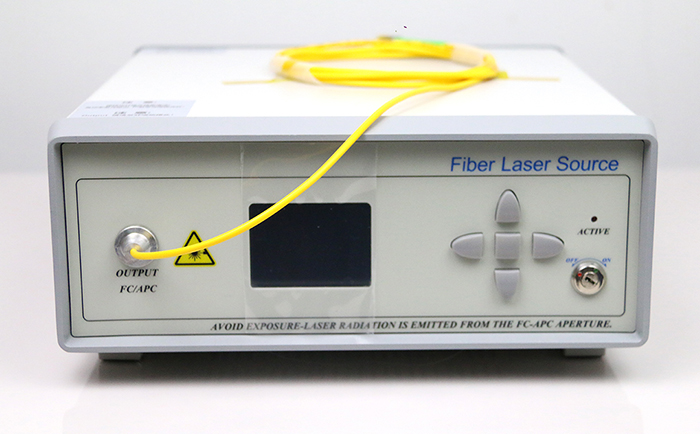

10mW C++ Band ASE Broadband Light Source SM Fiber Laser Source Benchtop ASE-C++-10-T-SM-B
The C++ band ASE broadband light source expands the wavelength range on the basis of the C-band ASE broadband light source, covering the wavelength range of 1524-1572nm (frequency 190.65~196.675THz), the spectral flatness is better than 2.5dB, and the output is through single-mode fiber or polarization-maintaining fiber , suitable for applications such as fiber optic sensing.
[Features]
Spectrum flat
Power adjustable
Broader spectral range
[Applications]
Fiber optic sensing
Medical imaging
Production test
[Specification]
| Parameter |
Unit |
Typical Value |
Remarks |
| Model |
|
ASE-C++-10-SM-B /
ASE-C++-10-T-SM-B |
T: Tunable power |
| Spectral Range |
nm |
1524~1572 |
2.5dB spectral range |
| Output Optical Power |
mW |
10 |
|
| Power Adjustment Range |
|
10%~100% |
Optional function, spectral flatness maintenance |
| Spectral Flatness |
dB |
≤2.5 |
|
| Output Isolation |
dB |
>35 |
|
| Short-term Stability (15 minutes) |
dB |
≤ ±0.02 |
Equivalent≤±0.5% |
| Long-term Stability (8 hours) |
dB |
≤ ±0.05 |
Equivalent≤±1.2% |
| Polarization Extinction Ratio |
dB |
≤ 0.2 |
PM fiber PER: ≥23dB |
| Pigtail Type |
|
SMF-28e single-mode fiber |
Φ=3mm loose tube, L=1m |
| Pigtail Connector Type |
|
FC/APC |
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current Product)
|
Module Type
|
|
Control Method
|
Button
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 5V, 3A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
