355nm 3W 3000mW 18ns-20ns UV DPSS laser for marking

Product 5/6

 Previous
 Return to the Product List
 Next

$18,469.00

 Sold Out

The 3W 355nm DPSS laser are used for marking. It's a Nd:YVO4 laser.



Details:
Wavelength (nm):355
Pulse Repetition Rate:10Hz ~ 150kHz

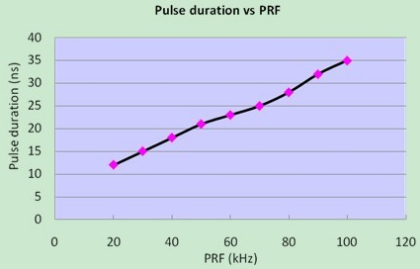

Pulse Width (ns) @30kHz:18

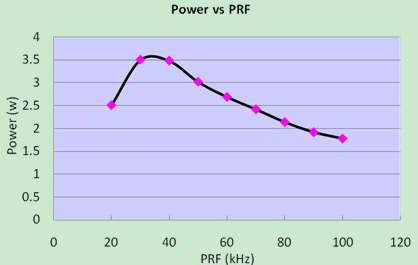

Average Power (W) @30kHz:1.0 2.0 3.0 4.0
Average Power Stability:< ±2% over 12 hours
Pulse Energy(μJ) @30kHz:33 66 100 133
Pulse-to-Pulse Stability:< 3% RMS
Spatial Mode:TEM00 (M2 < 1.2)
Beam Divergence, Full Angle:< 2mrad
1/e2 Beam Diameter:0.5mm
Beam Circularity:> 90%
Beam-Pointing Stability:< 50μrad
Polarization Direction:Horizontal
Polarization Ratio:100 : 1
Electric Supply:90 ~ 260 VAC
Cooling:Water-cooling
Ambient Temperature (℃):15 ~ 30
Storage Temperature (℃):-10 ~ 50
* We also offer customized lasers with higher power, different optimum frequency, or Nd:YAG medium.


Applications:
LED Wafer Scribing
Thin Film Etching
Glass Cutting/Marking
Ceramics Cutting/Scribing/Marking
Rapid Prototyping
FPCB Cutting
Scientific Research



355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking

355nm 3W UV DPSS laser for marking
