450nm 100mw Uniform line blue laser module with Powell lens

450nm 100mw Uniform line blue laser module with Powell lens

Advantage：
1, the use of imported Powell prism played a completely uniform blue line;
2, 1-3V adjustable power supply you can adjust the brightness of the blue line;
3, The minimum line width >0.8 mm, the laser width can be adjutable;
4, Powell lens angle from 10°~90° degrees.

Specifications:
Wavelength: 450nm
Output power: 100mw
Working voltage: DC 2.8~5.2V;
Woking Current: ≤200mA

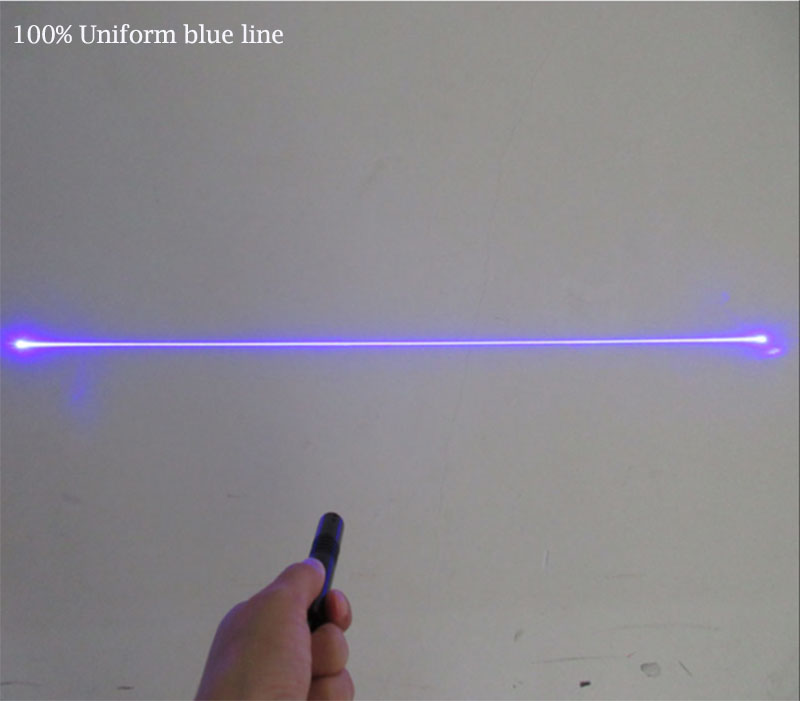

Laser Shape: 100% uniform linewidth and collimation line;
Line width: Can be adjustable

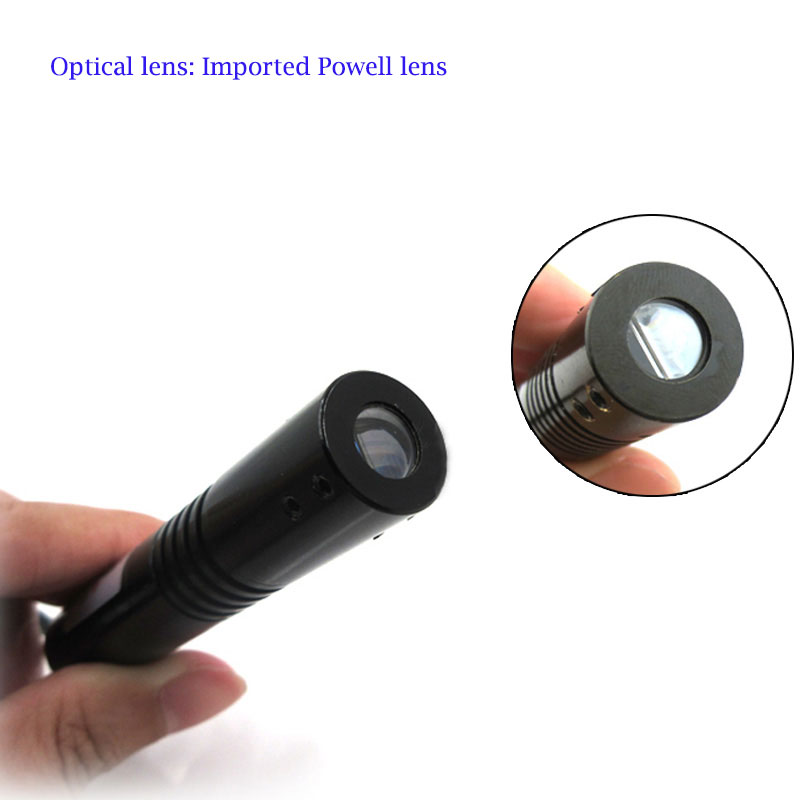

Optical lens: imported Powell prism
Lens angle: 10-90 degrees optional

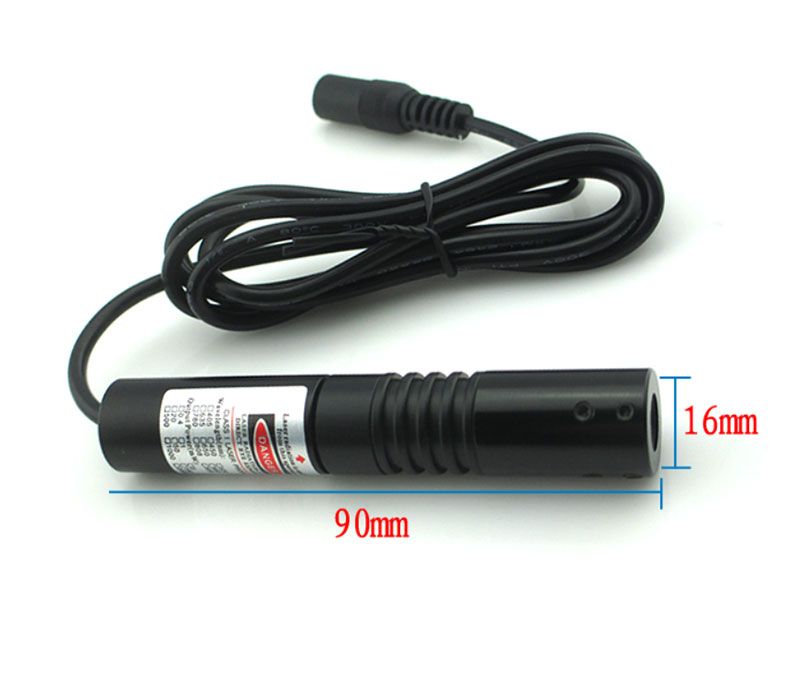

Size: φ16*90mm (can be customized)

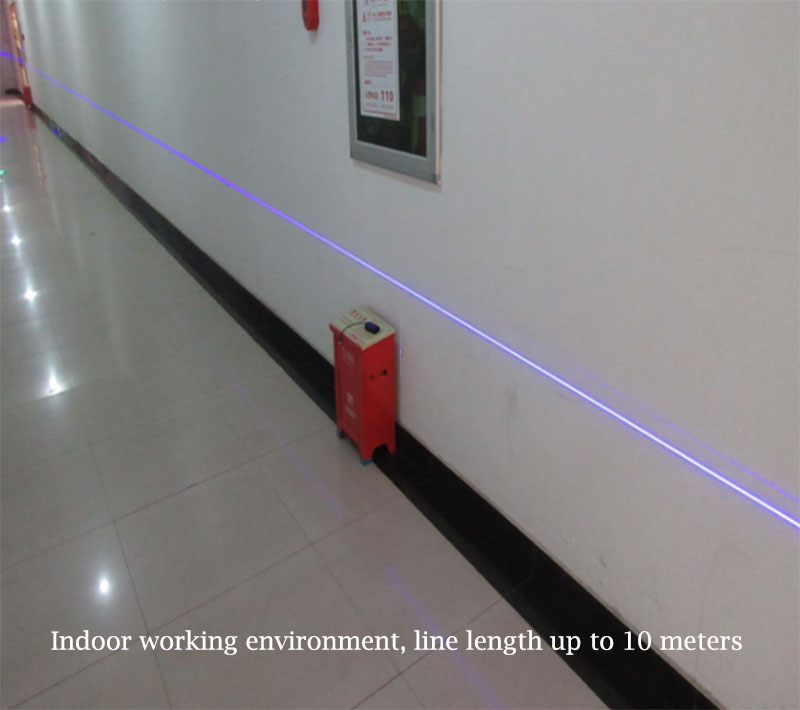

In the indoor environment, the line length can reach up to 10 meters;
In semi outdoor (non direct sun) working environment can reach up to 5 meters
Installation height of 0 meters - 5 meters can be used (external structure, adjustable width, easy to use)

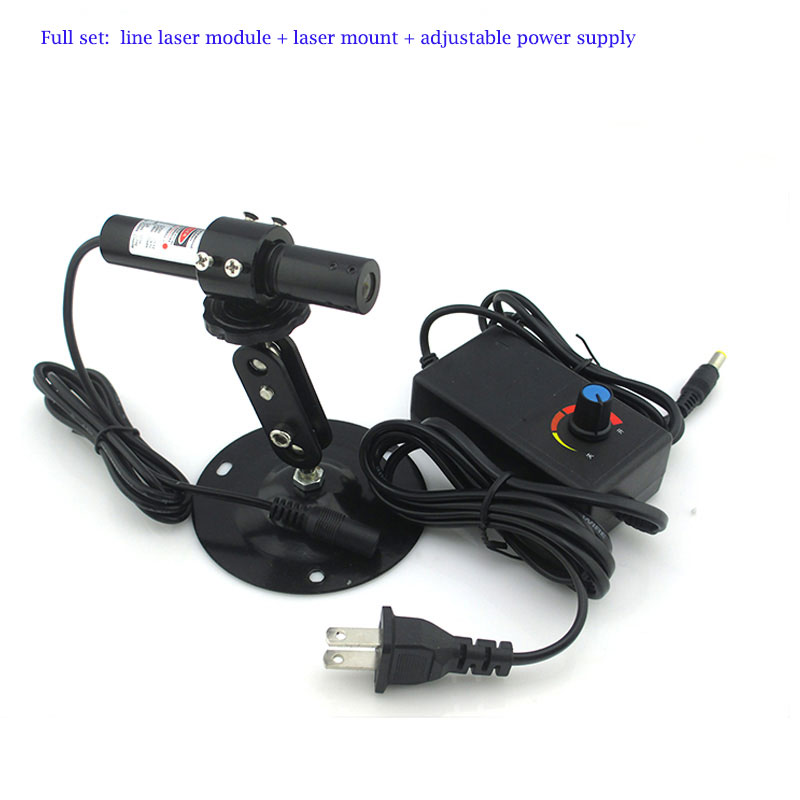

Package includes:
1* laser module;
1* laser bracket;
1* 1-3V adjustable power supply.
