650nm 100mw Red Large Circle laser positioning lamp

650nm 100mw Red Large Circle laser positioning lamp

Using imported large circle glass lens and laser diode,the diameter of the big circle diameter and irradiation distance ratio is 1:1.

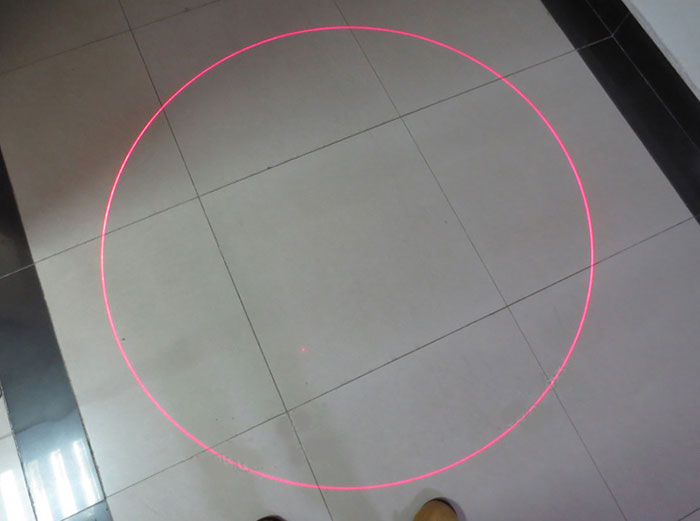

Such as: installation height of 1 meters, hit the circle diameter of 1 meters, the installation height of 5 meters, a circle diameter of 5 meters of the red circle, fine and uniform, the stability is very high.

Specifications:
Wavelength: 650nm
Output power: 100mw(can be customized)
Operating Voltage: DC 2.8-5.2V
Operating Current: ≤200mA
Spot pattern: Large Circle
Line width:  adjustable
Laser size: 16*100mm
Optical lens: Imported large circle glass lens
Operation mode: Continuous laser
Incentive:Electrically excited laser
Working medium: semiconductor laser
Structure characteristics: High quality laser diode + metal shell + high quality lens + constant power circuit board + wire

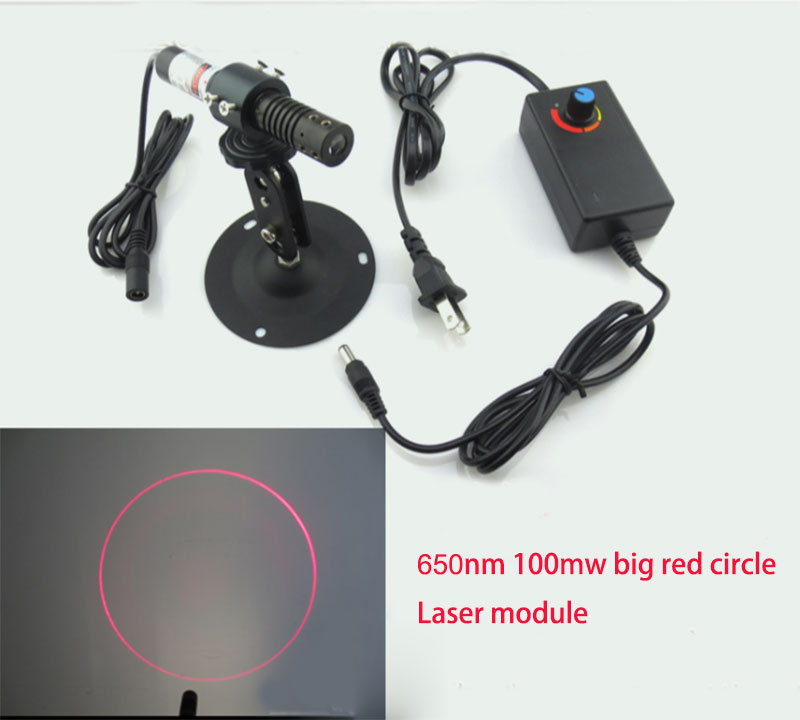

 Package list:
1* Red circle laser module;
1* Module bracket ;
1* Adjustable power supply;

Product description:
1, Dedicated 1-3V adjustable power supply;
2, Red line width from 0.4 mm - a few centimeters adjustable to meet your different requirements;
3, the diameter of the big circle diameter and irradiation distance ratio is 1:1;
4, 650nm wavelength laser pure red laser, light clear and bright and soft without glare;
5, Shell for aviation aluminum insulation paint can be fully heat and can be shockproof anti fall and anti-static;
6, German imported laser diode, direct light-emitting, stability, can continously work for more than 24 hours;
