650nm 100mw~200mw Red laser module Line Level marking instrument Glass lenses

650nm 100mw~200mw Red laser module Line Level marking instrument Glass lenses

SPECIFICATIONS:
Name:  650nm 100mw~200mw Red laser module Line
Output Wavelength: 650nm ±5nm
Output Power: 100mw，200mw(can be customized)
Class level: Class IIIB

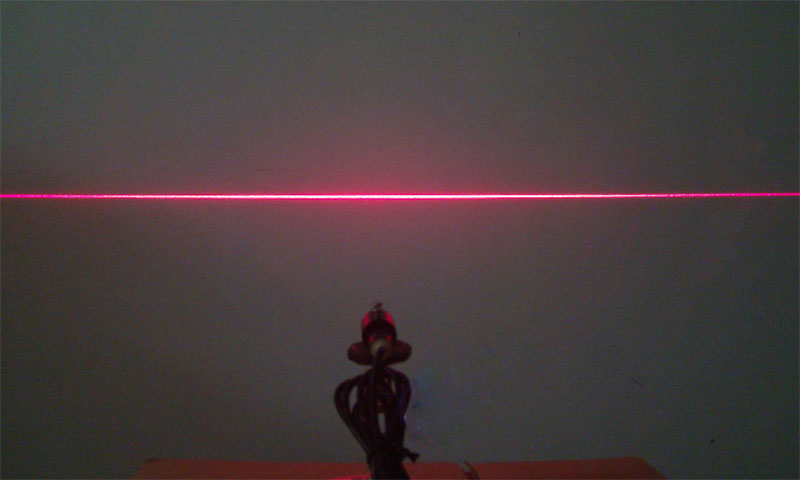

Laser Shape: Line
Range: <50 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: IR laser
Shape/dimension：Line/Minimum line width≤1.0mm, <Φ2mm at 1m distance
Circuit control: ACC
Size: Φ20×60mm
Fan angle: 90°, 120°
Operating Voltage: DC=3V(Power supply can be choosed)
Operating current: I<165mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Warranty: 12 Months Factory warranty
