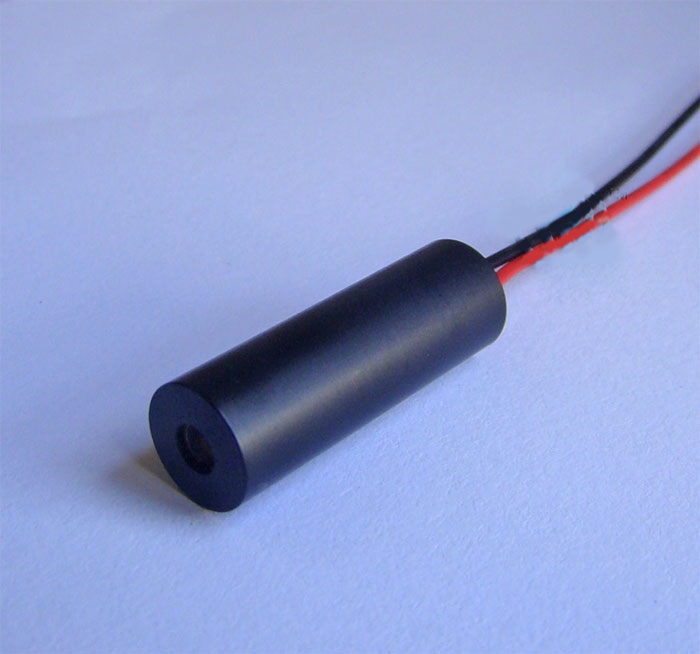

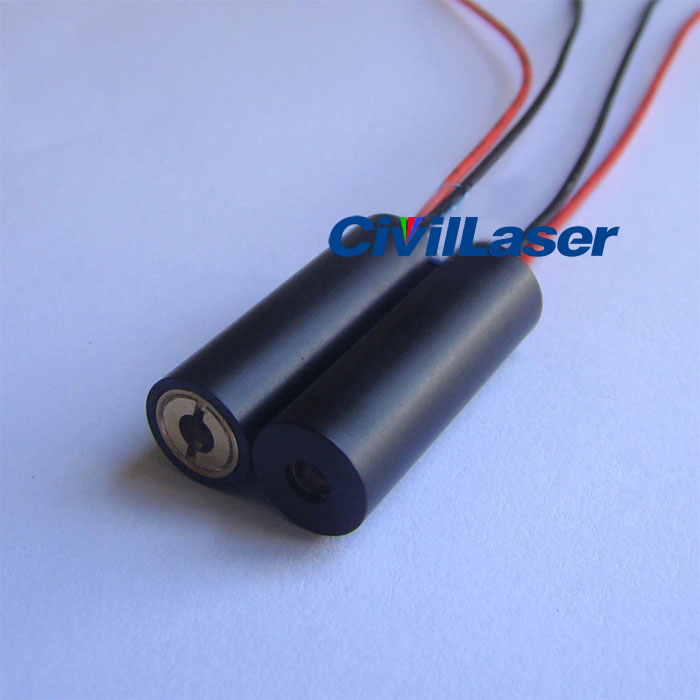

635nm 10mw 20mW Red laser module Dot positioning module laser illuminator

635nm 10mw 20mW Red laser module Dot positioning module laser illuminator



SPECIFICATIONS:
Name:  635nm 10mw 20mW Red laser module Dot
Output Wavelength: 635nm ±5nm
Output Power: 10mw/20mw(can be choose)
Class level: Class IIIB
Laser Shape: Dot
Range: <500 meters
Material: Copper or aluminum optional

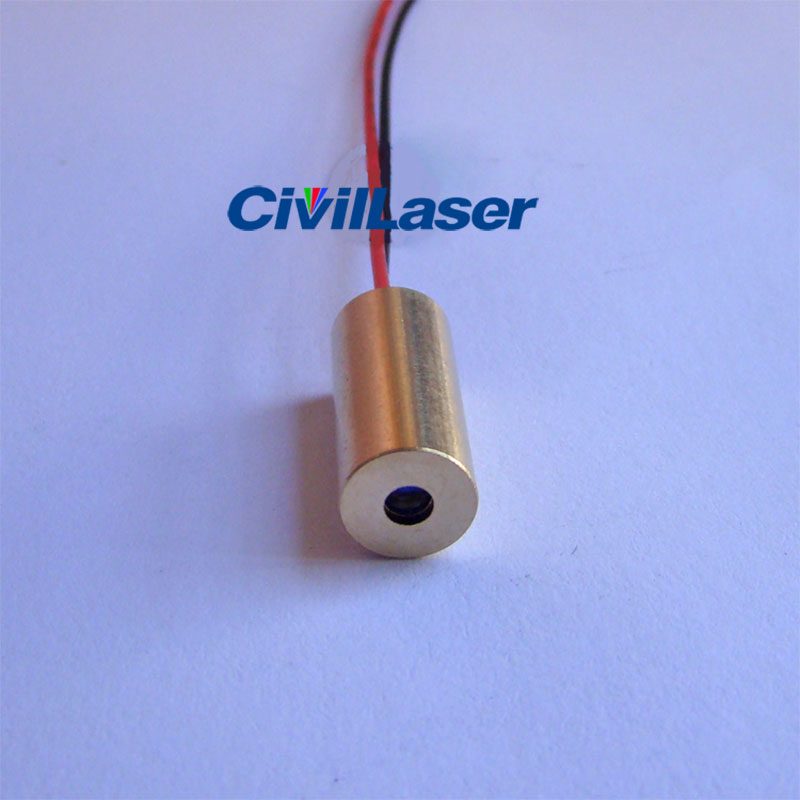

Surface treatment / color: Brass color, black (black oxide)
Laser type: Red laser

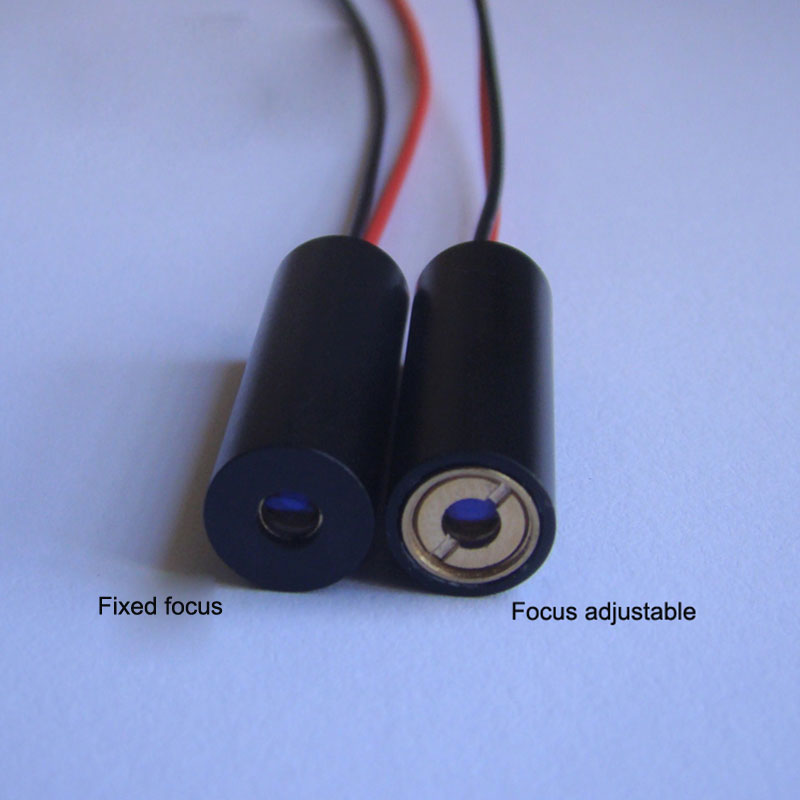

Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC
Size: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
Operating Voltage:  DC=2.8~5.3V
Operating current: I<110mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty
