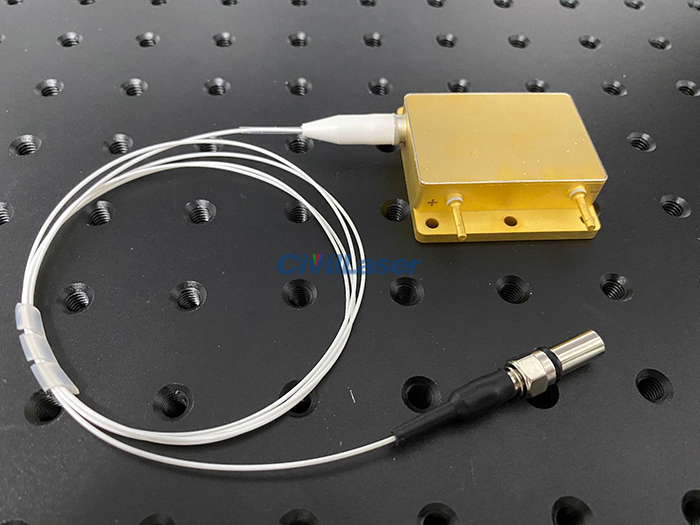

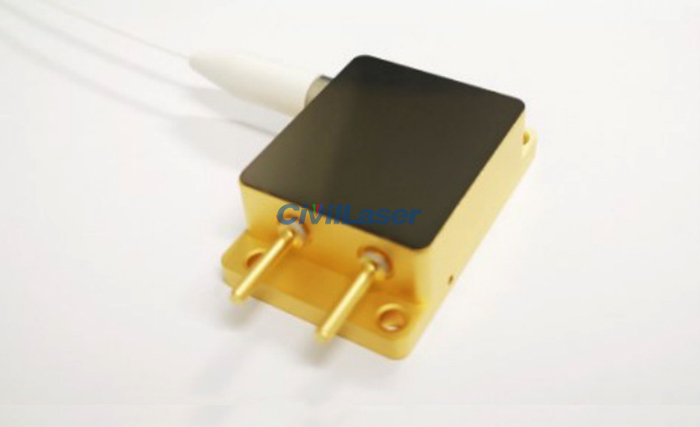

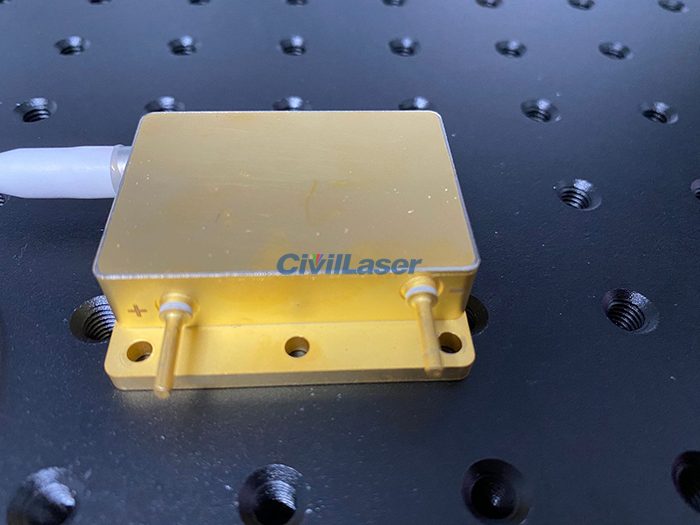

High Power 980nm 30W Semiconductor Fiber Coupled Laser Infrared Laser 105μm Fiber Output



Instructions for use:
1. When the laser is working, avoid the laser from shining on the eyes and skin.
2. Anti-static measures must be taken during transportation, storage, and use, and short-circuit protection must be connected between pins during transportation and storage.
3. Connect the lead wires by welding, the solder joint should be as close to the root of the lead as possible, the temperature should be lower than 260°C, and the welding time should be less than 10 seconds.
4. It should be used under rated working current and rated working voltage.
5. Use a constant current power supply and avoid surges when working.
6. When the laser is working, it is necessary to ensure good heat dissipation, and the temperature of the tube and shell is 15-40°C during operation.
7. The optical fiber cannot be bent at a large angle, and the bending diameter is 400 times larger than the cladding diameter.
