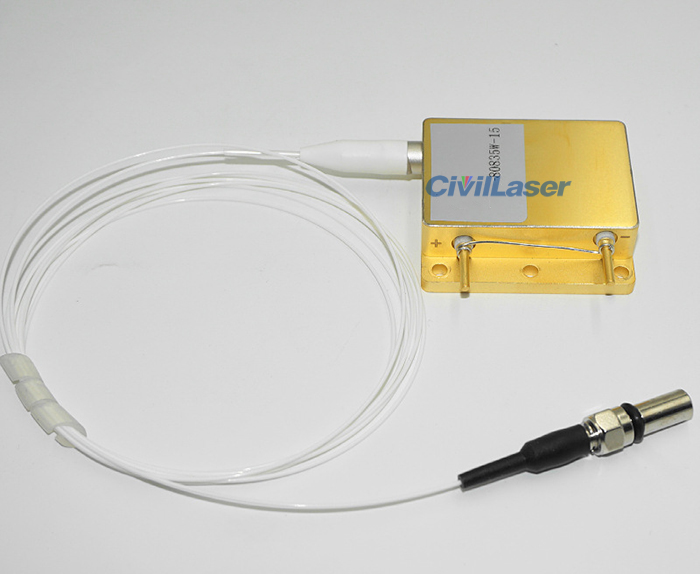

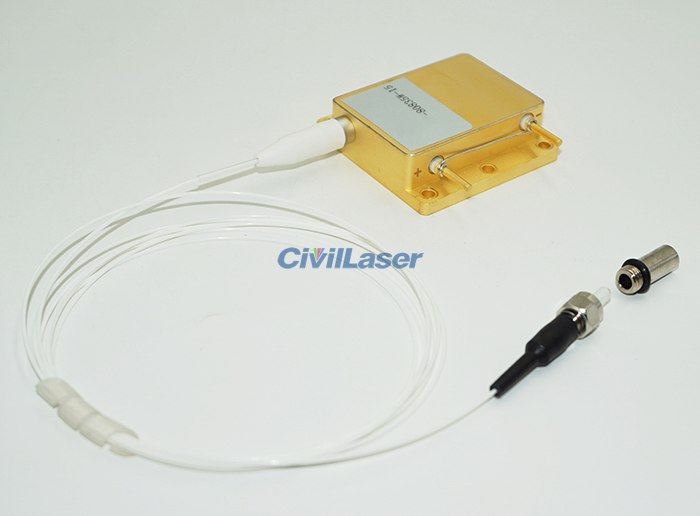

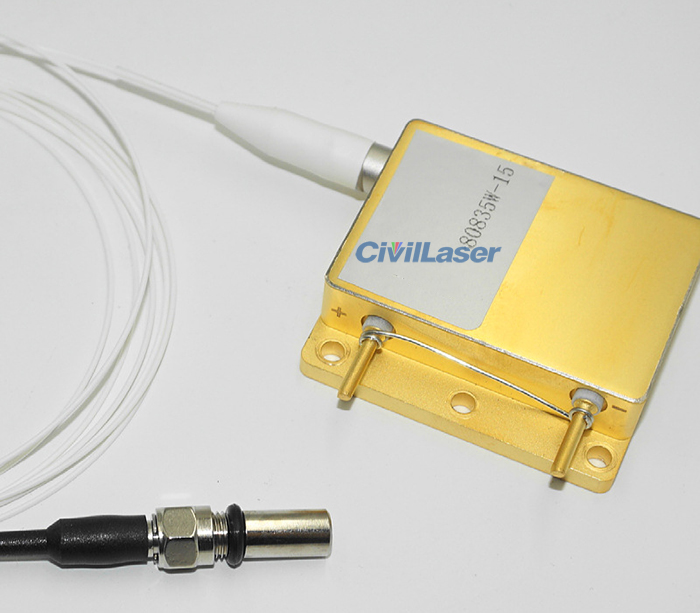

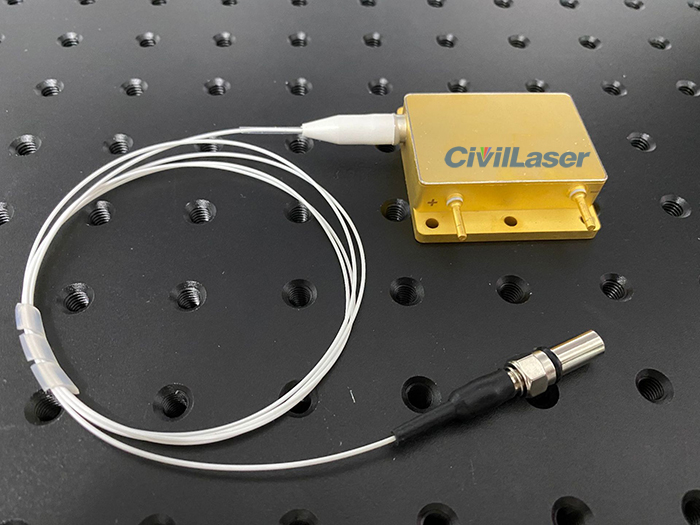

808nm 35W Infrared High Power Fiber Coupled Laser 105μm Fiber Output Laser Module
[Features]
Wavelength: 808nm
Fiber output power: 35W
Fiber Core Diameter: 105μm
Numerical Aperture: 0.22NA
1030nm-1200nm anti-reflection
[Applications]
Solid-state laser pumping
It is widely used in green light pumping, security monitoring, industrial processing, laser display, medical treatment, beauty, scientific research and many other fields. In addition, special wavelength or multi-wavelength products can be customized for customers, and various optional packaging forms and additional functions can be provided. If you have custom needs, please contact us.
[Specification]
| Typical Product Specifications(25℃) |
Symbol |
Unit |
Min. |
Typ. |
Max. |
| Optical Parameters |
Output Power (CW) |
Po |
W |
|
35 |
|
| Central Wavelength |
λc |
nm |
805 |
808 |
811 |
| Spectral Width (FWHM) |
△λ |
nm |
|
3 |
4 |
| Fiber Diameter/Cladding Diameter |
Dcore |
μm |
|
105/125 |
|
| Numerical Aperture |
NA |
nm |
|
0.22 |
|
| Wavelength Temperature Coefficient |
|
nm/℃ |
|
0.28 |
|
| Electrical Parameters |
Electro-optical Conversion Efficiency |
WPE |
% |
|
45 |
|
| Threshold Current |
Ith |
A |
|
1.3 |
|
| Operating Current |
Iop |
A |
|
9.5 |
10.5 |
| Operating Voltage |
Vop |
V |
|
7.5 |
8 |
| Mechanical Parameters |
Fiber Length |
L |
m |
0.9 |
1 |
1.1 |
| Bending Radius |
|
mm |
40 |
|
|
| Protective Tube Type |
|
|
0.9mm protective tube |

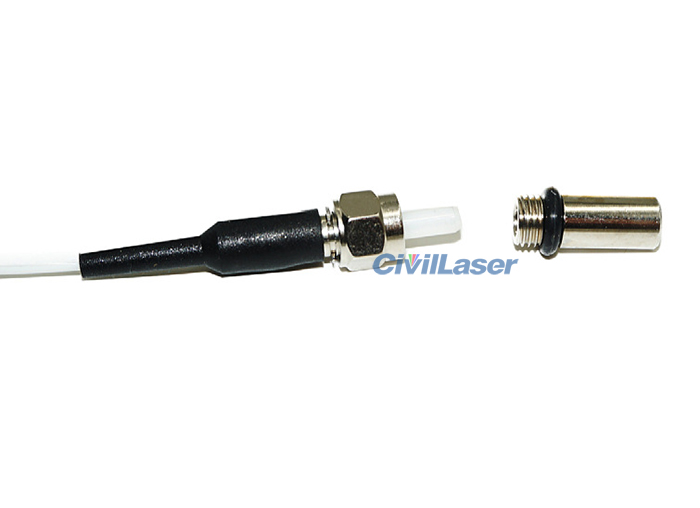

| Fiber Connector |
|
|
SMA905 |
| Anti-reflection Parameters |
Anti-reflection Band |
λ |
nm |
1030-1200 |
| Anti-reflection Isolation |
|
dB |
|
30 |
|
| Other Parameter |
ESD |
Vesd |
V |
|
|
500 |
| Operating Temperature |
Top |
℃ |
|
25 |
|
| Storage Temperature |
Tst |
℃ |
-20 |
|
70 |
| Relative Humidity |
RH |
% |
15 |
|
85 |

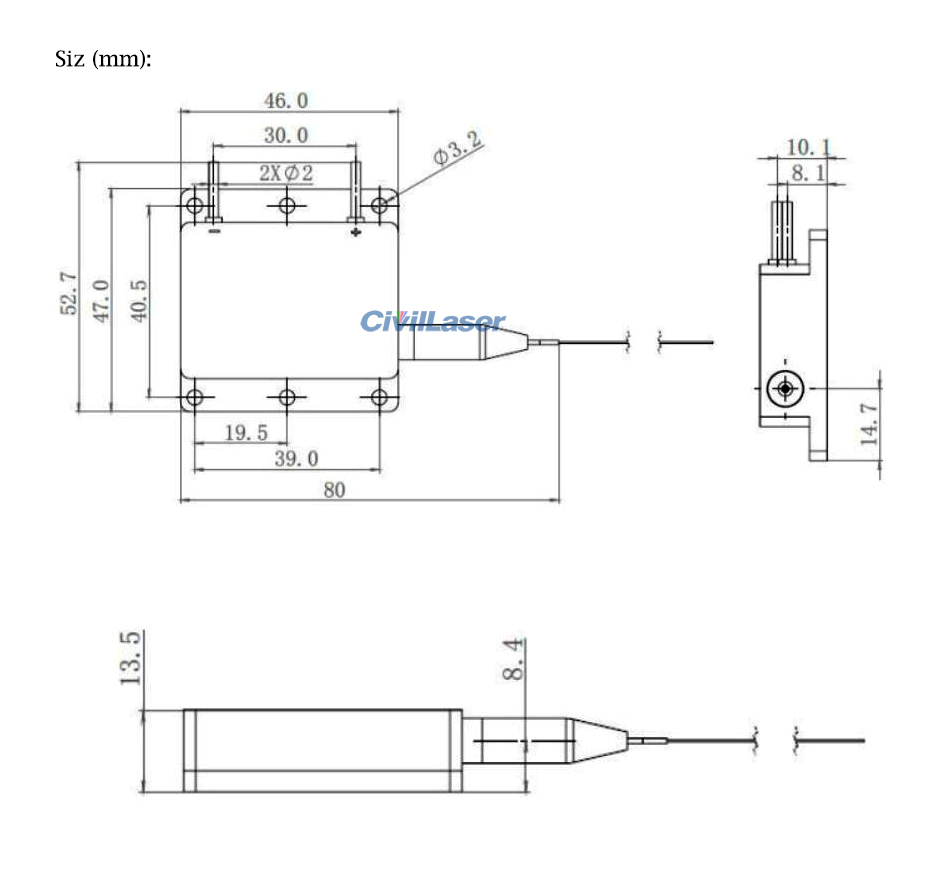

| Package Type |
|
|
|
W2 |
|
| Soldering Temperature |
Tls |
℃ |
|
|
260 |
| Soldering Time |
t |
sec |
|
|
10 |
