445nm 450nm 100mW Line Pure blue laser High powerMarking cutting line drawing instrument

Product 8/30

 Previous
 Return to the Product List
 Next

Starting at: $109.00

Please Choose:





Add to Cart:


445nm 450nm 100mW  Line Pure blue laser High powerMarking cutting line drawing instrument

SPECIFICATIONS:
Name:  445nm 450nm 100mW blue laser module Line
Output Wavelength: 450nm/±10nm
Output Power: <100mw
Class level: LASS IIIB
Laser Shape: Line
Range: <10 meters
Material: Copper + aluminum
Surface treatment / color: Black(Oxide black)
Laser type: Blue laser
Shape/dimension: The minimum Line width≤1.0mm, line width <2mm at 1m distance
Fan angle: 5°,36°,60°,90°(default),110°(can be customized)
Circuit control: APC
Size: Φ12x50mm(can be customized)
Operating Voltage:  DC=5.5~7.0V
Operating current: I<150mA
Operating Temperature: 0°C~+60°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty

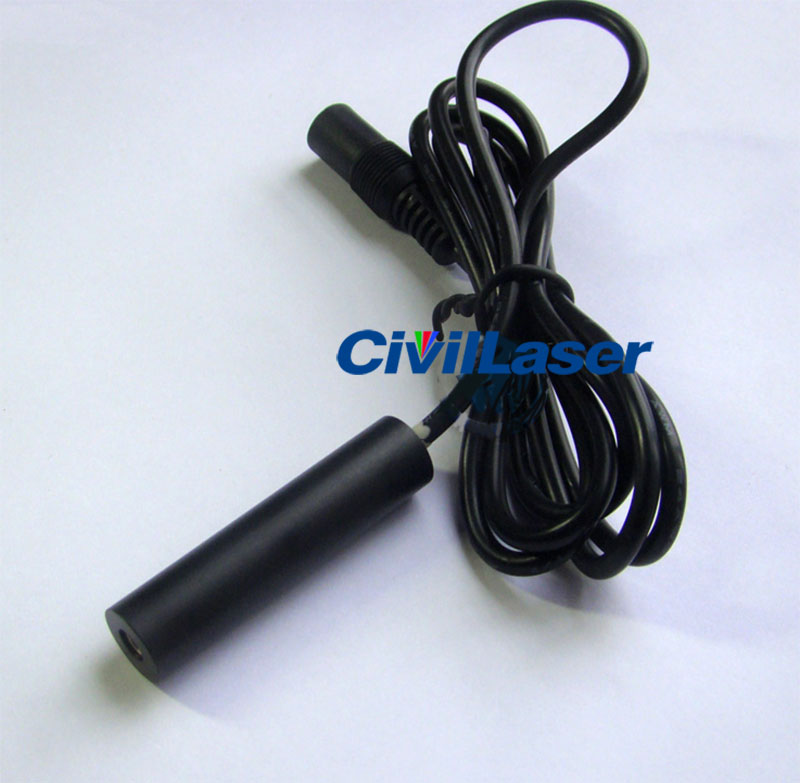

445nm 450nm 100mW blue laser module Line

445nm 450nm 100mW blue laser module Line
