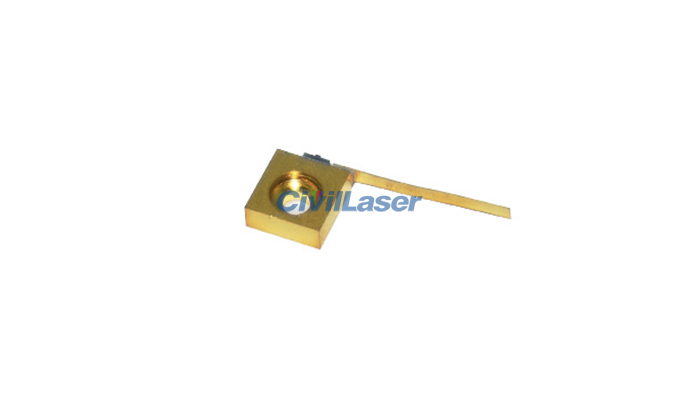

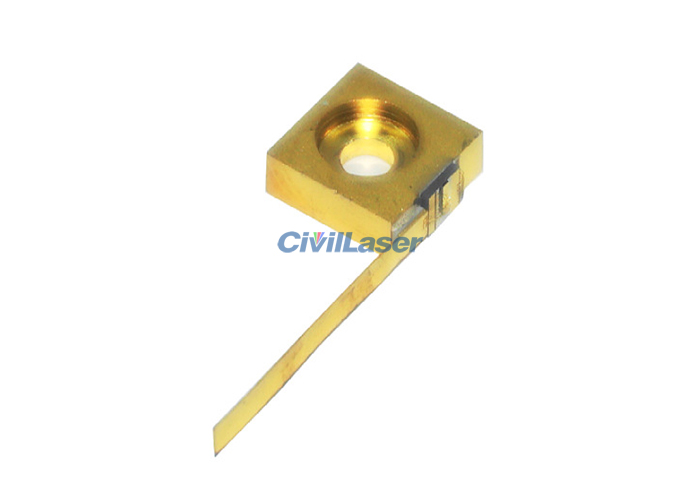

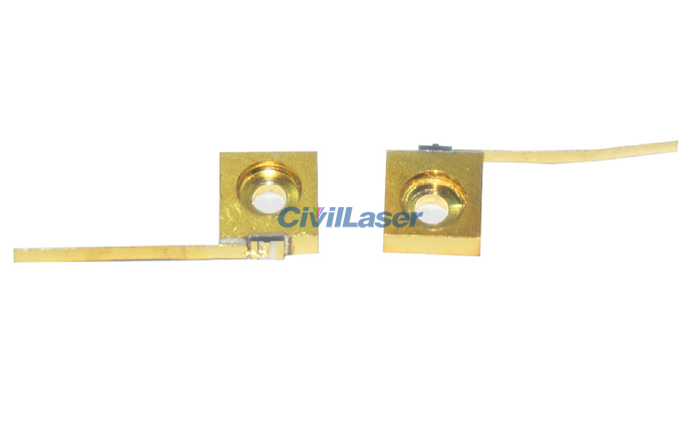

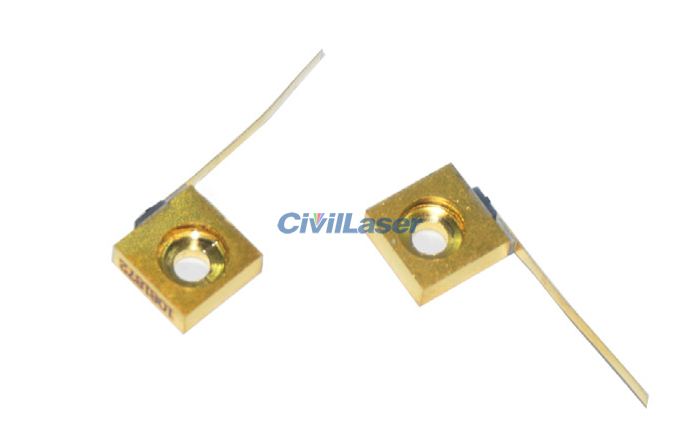

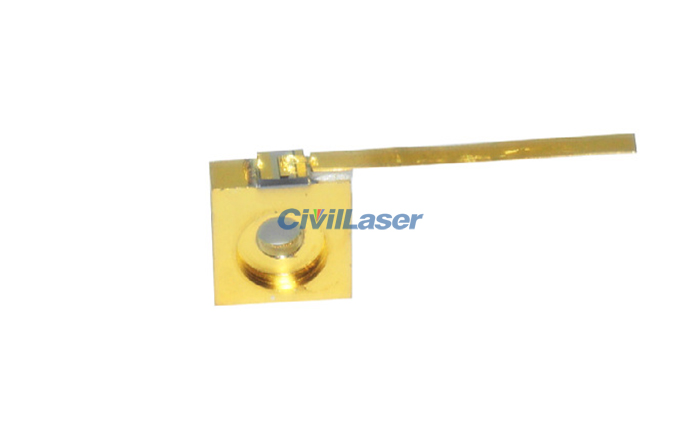

660nm 1000mW Red Laser Diode High Power LD For Laser Medical C-mount

660nm 1000mW Red Laser Diode High Power LD For Laser Medical C-mount Package

[Features]
Wavelength: 660nm

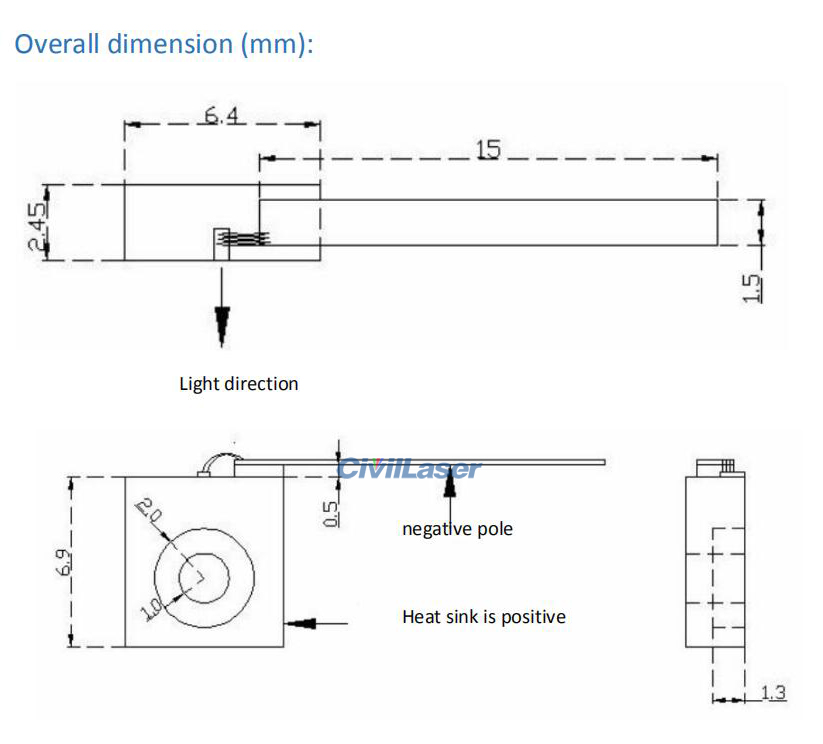

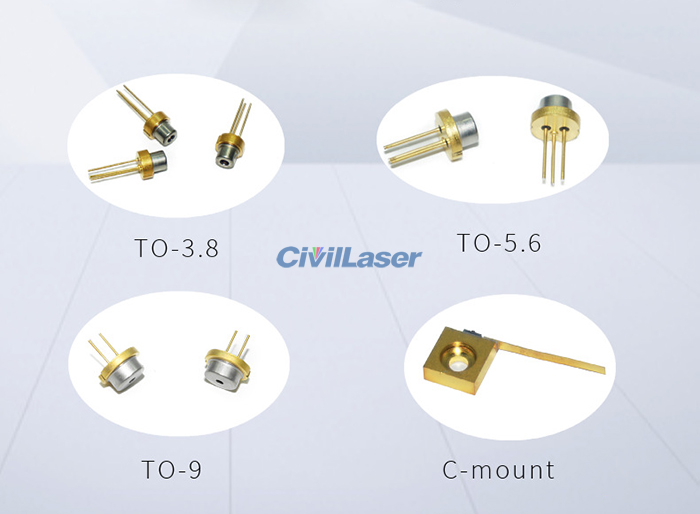

C-mount
Strong stability

[Application]
Solid state laser pump source
Medical printing infrared lighting
Material processing marking

[Specification]
Product Name: Laser Diode
Central Wavelength: 660nm
Output Power: CW 1000mW
Center Wavelength Shift: ±5nm
Half Peak Width (FWHM): 2.5nm
Wavelength Temperature Coefficient: ~0.3 nm/℃
Polarization Characteristics: TE
working Voltage: 2.0V
Working Current: 2.0A
Threshold Current: 0.6A
Conversion Efficiency: 50%
Oblique Efficiency: 1.1 W/A

Note:
1. It should be used under rated working current and rated working voltage.
2. Use constant current power supply to avoid surge during operation.
3. When the laser works, it is necessary to ensure good heat dissipation, and the working temperature is 10℃~30℃.
4. When the laser works, avoid the laser irradiating eyes and skin.
