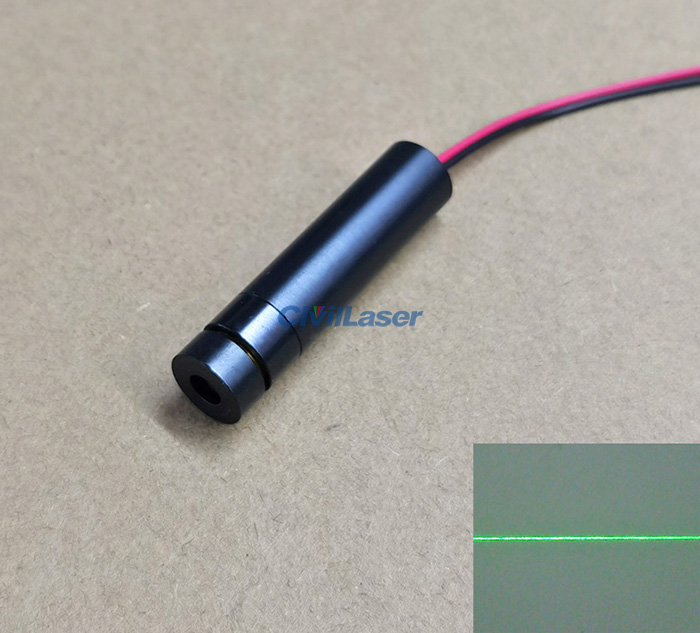

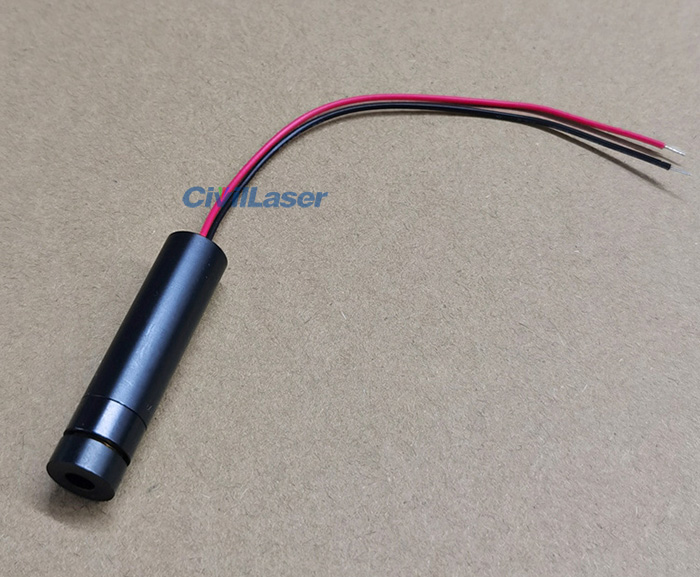

520nm 10mW Wide Voltage Green Laser Module Line For Cutting/Sweeping/Positioning Φ12*50mm

520nm 10mW Wide Voltage Green Laser Module Line For Cutting/Sweeping/Positioning Φ12*50mm

CivilLaser can develop, design and process laser modules and optical systems according to customers' special requirements. We can also provide OEM and ODM for laser system applications and special purposes, accept bulk orders, welcome to contact us!

[Applications]
Industrial line drawing and positioning, clothing cutting, machine shearing board cutting and tracing, level, medical equipment, teaching instruments, etc.

[Specification]
Product Name: Laser module
Wavelength: 520±10nm
LD Power: 10mW
Output Power: 5.0~7.5mW
Spot Shape: Line
Line Width: Minimum linewidth <0.5mm (Focusing at close range); Line width at 1m <2mm
Focus: Adjustable
Irradiation Range: <10 meters (Indoor environment)
Surface Treatment: Oxide fog black
Size: Φ12*50mm (Customizable)
Circuit Control: APC circuit
Working Voltage: DC 5~25V
Working Current: I<200mA
Working Temperature: -10℃~+50℃
Storage Temperature: -20℃~+80℃
Service Life: >10,000 hours
Tail Wire: 26# red and black electronic cable is about 150mm long, (if you need a 1 meter long DC female plug cable, please contact us.)
