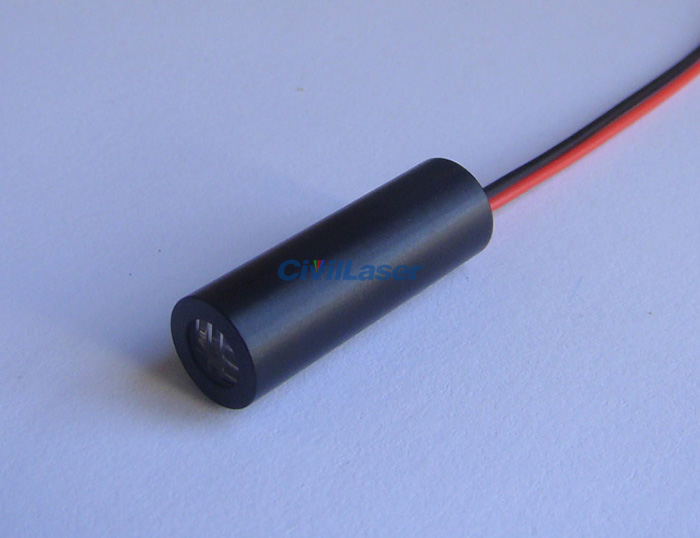

635nm 10mW Red Laser Diode Module Crosshair Laser Positioner Marking Instrument Φ10*30mm

635nm 10mW Red Laser Diode Module Crosshair Laser Positioner Marking Instrument Φ10*30mm

CivilLaser can develop, design and process laser modules and optical systems according to customers' special requirements. We can also provide OEM and ODM for laser system applications and special purposes, accept bulk orders, welcome to contact us!

[Applications]
Aimer for positioning
Laser testing tools
Concentric positioning
Positioning of medical equipment
Make signaling equipment

[Specification]
Product Name: Laser module
Wavelength: 635±5nm
Output Power: <10mW
Spot Shape: Corsshair
Linewidth: Minimum line width ≤ 1.0mm (short-range fixed-point focusing); light spot < 2mm at 1m
Irradiation Range: < 8 meters
Light Diffusion Angle: 50° (15° can be customized. )
Size: Φ10*30mm (Φ9*26mm, Φ12*50mm can be customized.)
Circuit Control: APC circuit
Working Voltage: DC=2.8~5.3V
Working Current: I<70mA
Working Temperature: -10℃~+40℃
Storage Temperature: -40℃~+80℃
Service Life: 10000 hours

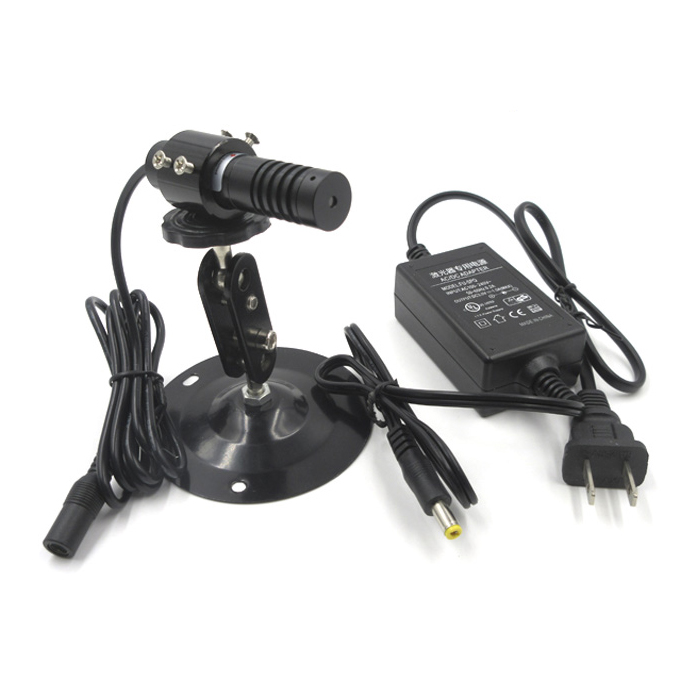

Tail Wire: 26# red and black electronic wire about 150mm long; (taken together with the power adapter, equipped with a 1 meter long DC female plug wire)
