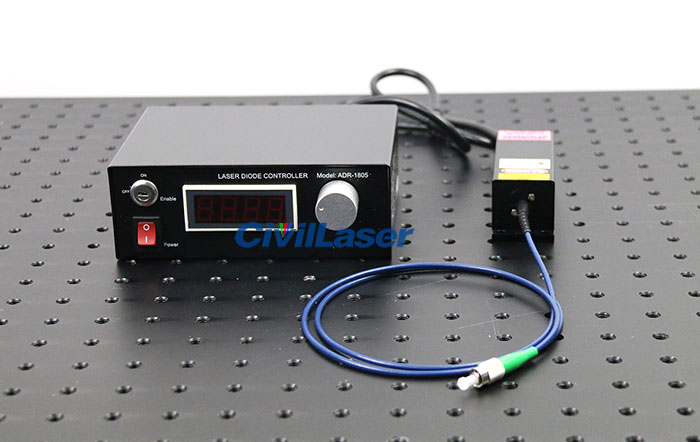

450nm 1~40mW Polarization Maintaining Fiber Laser Source M²<1.2 Lab Laser Customizable

$1,186.00

Please Choose:



Add to Cart:


450nm 1~40mW Polarization Maintaining Fiber Laser Source M²<1.2 Lab Laser Customizable


[Features]
Fiber is pluggable
M²≤1.2
Polarization ratio>70:1
TEC temperature control

[Applications]
Fluorescence spectroscopy, photodetection, optical measurement, etc.

Note:
Lead Time: About 2~4 weeks.

[Specification]

Parameter*1 Working Conditions Symbol Min. Value Typical Value Max. Value Unit
Optical Parameters
Output Power(CW) @PO PO   40   mW
Power Stability (RMS) 2hrs Ps     3 %
Central Wavelength @PO λc 445 450 455 nm
Spectral Linewidth (FWHM) @PO Δλ   1 2 nm
Preheat Time @PO Tw     5 min
Noise RMS(10Hz-100MHz) N     1 %
Polarization Ratio @PO     70:1
Optical Fiber Parameter Index*²
Fiber Specifications     PM Fiber
Fiber Length   L   1.0   m
Fiber Numerical Aperture   NA   0.12
Fiber Interface     FC-PC/FC-APC
Electrical Parameter Index
Operating Voltage @PO Vin 90 220 245 V
TTL Modulating Frequency       10   KHz
Electrical Parameter Index
Service Life*³ @PO/room temperature MTTF 10,000     Hrs
Operating Temperature   Tstg 0   40 ℃
Storage Temperature   Topr -20   65 ℃
Note *1: Test data at 25°C operating temperature;
*²: Fiber length and fiber interface can be customized;
*³: The service life refers to the service life of the laser diode.
