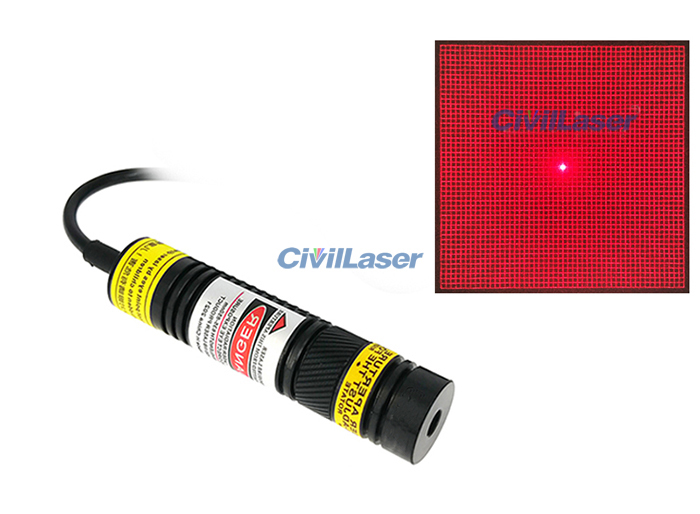

650nm 50~100mW Laser Grating Module 50*50 Grid Red Diode Laser Scanning Laser Source

650nm 50~100mW Laser Grating Module 50*50 Grid Red Diode Laser Scanning Laser Source

[Specifications]
Product Name: Laser module
Wavelength: 650nm
Output Power: 50mW / 100mW (Choose)
Laser Shape: 50*50 grid
Input Voltage: 5V
Operating Current: <130mA
Size: φ16*68mm
Storage Temperature: -10℃~+40℃
Operating Temperature: -15℃~+35℃
Working Distance: 50mW for use indoors within 2 meters, 100mW indoor use within 3 meters.

The length of the projected grid:
At a distance of 1 meter, the projection length is about 40cm;

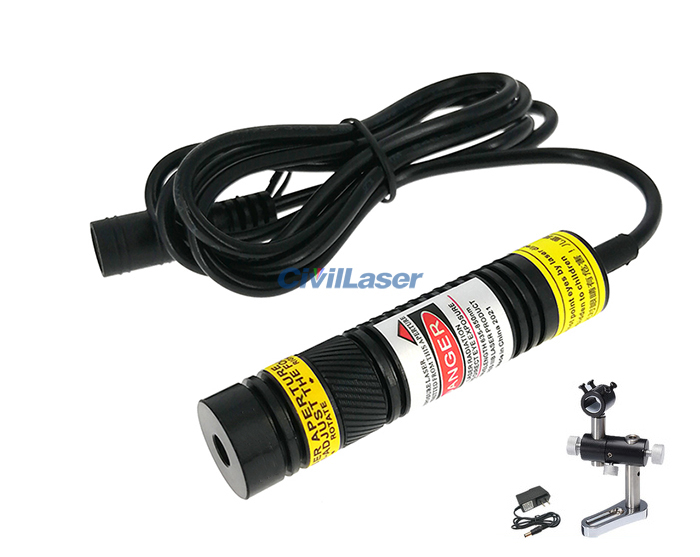

[Package Include]
1 x Laser module
1 x Power adapter
1 x Module holder

Note:
The module can adjust the focus, and the effect is best when the focal length is not greater than 3m. Strong ambient light will affect the visibility of the laser, so it is not recommended to use it under strong light.
The picture below is a real shot at a distance of one meter (taken in a normal indoor darker light and in a completely dark environment), and the divergence angle of the grating is about 14°.
