532nm 1500mW Solid State Laser System Spectral Linewidth <0.003nm Coherence Length 1-2m

532nm 1500mW Solid State Laser System Spectral Linewidth <0.003nm Coherence Length 1-2m

Low noise DPSS laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

[Specifications]
Product Name: 532nm DPSS laser
Lead Time: 4~5 weeks.
Wavelength: 532±1nm
Output Power: 1500mW
Operating Mode: CW
Transverse Mode: Near TEM00
Spectral Linewidth: <0.003 nm
Coherent Length: 1~2 m
Power Stability (rms, over 4 hours): <3%
Noise of Amplitude (rms, 1~20MHz): <1%
M² Factor: <1.2
Beam Diameter at the Aperture (1/e²): <2.0 mm
Beam Divergence(Full Angle): <1.5 mrad
Polarization Ratio: >100:1 Vertical (Horizontal Optional)
Warm-up Time: <5 minutes
Pointing Stability After Warm-up: <0.05 mrad
Beam Height from Base Plate: ~27.4 mm
Max. Laser Head Base plate Temp: 50°C
Operating Temperature: 10~35℃

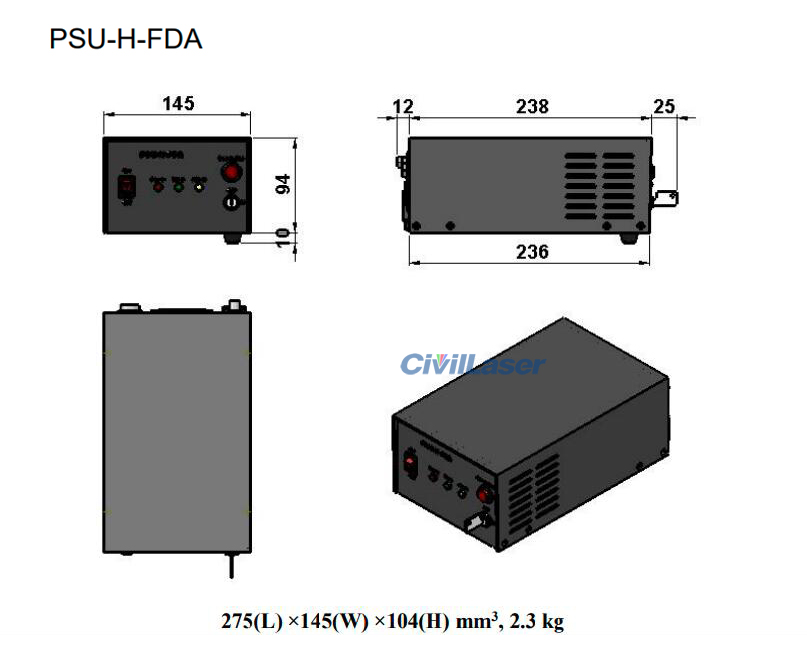

Power Supply (90-264VAC): PSU-H-FDA
Expected Lifetime: 10000 hours
Warranty Period: 1 year

[Package Include]
1  x Laser head
1 x Power supply
