Low Noise 532nm 10W DPSS Laser RMS Noise 1.0% Linewidth 0.1nm
DPSS laser 532nm low noise laser is made features of ultra compact, long lifetime and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, laser printing, chip inspection, physics experiment, etc.
[Specifications]
Product Name: 532nm Low noise laser
Lead Time: 4~5 weeks.
Wavelength: 532±1nm
Output Power: 10W (10~20W can be customized)
Operating Mode: CW
Transverse Mode: Near TEM00
Spectral Linewidth: <0.1 nm
Power Stability (rms, over 4 hours): <3%
Noise of Amplitude (rms, 1~20MHz): <1%
M² Factor: 3.0~6.0 (<3.0 on request)
Beam Divergence(Full Angle): <2.0 mrad
Beam Diameter at the Aperture (1/e²): ~4.0 mm
Warm-up Time: <10 minutes
Polarization Ratio: >50:1

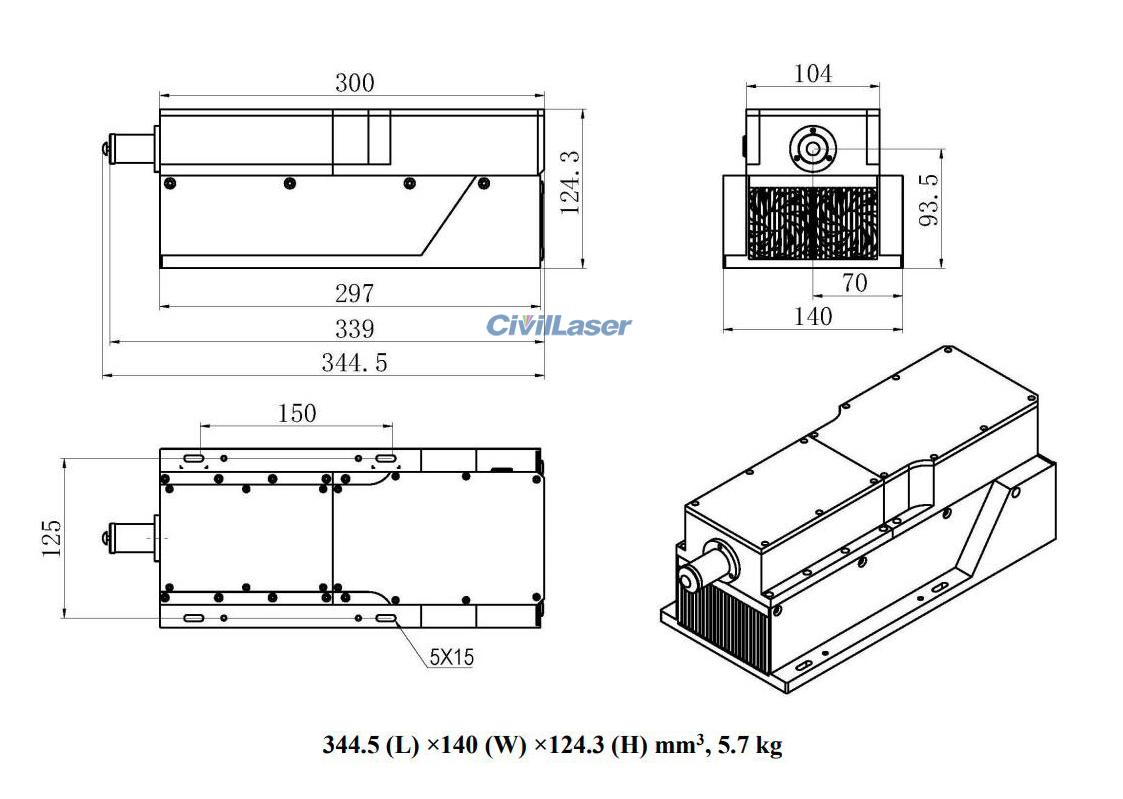

Beam Height from Base Plate: ~93.5 mm
Operating Temperature: 10~35℃

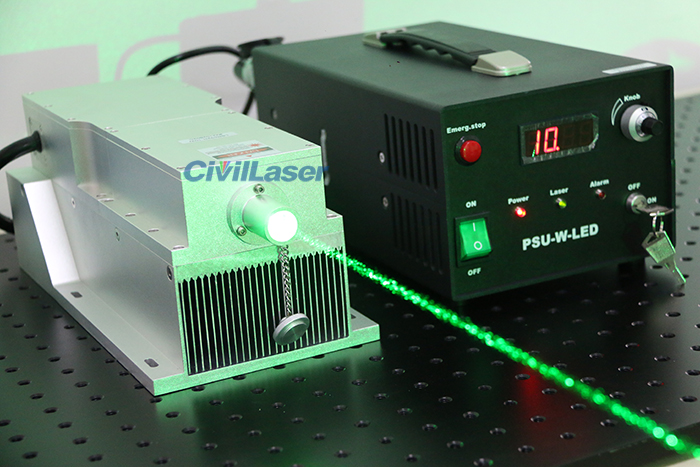

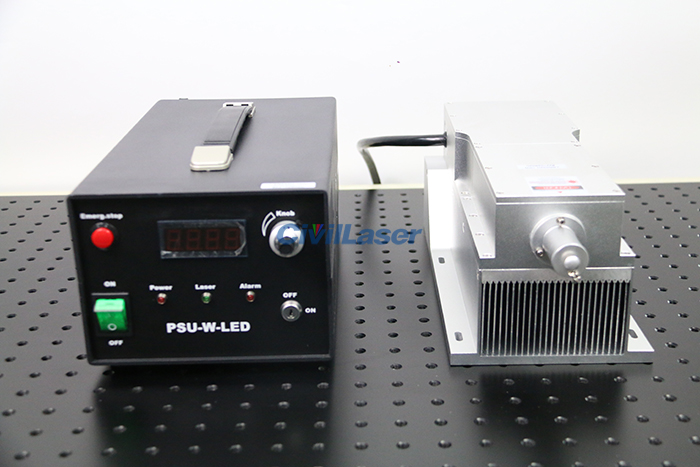

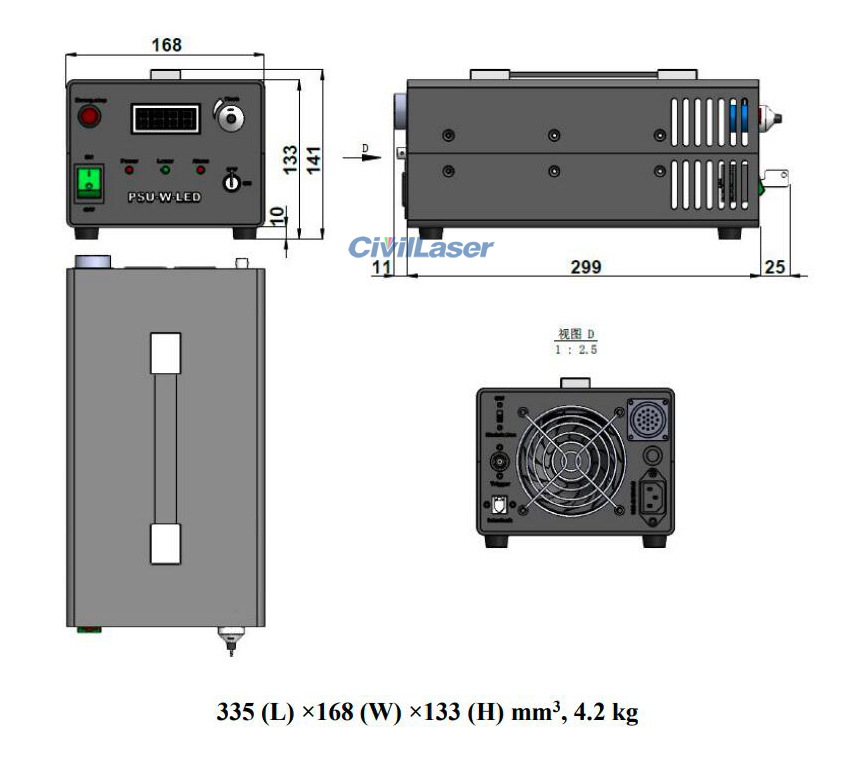

Power Supply (90-264VAC): PSU-W-LED
TTL / Analog Modulation: Default TTL/1Hz-1kHz (TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional)
Expected Lifetime: 10000 hours
Warranty Period: 1 year
[Package Include]

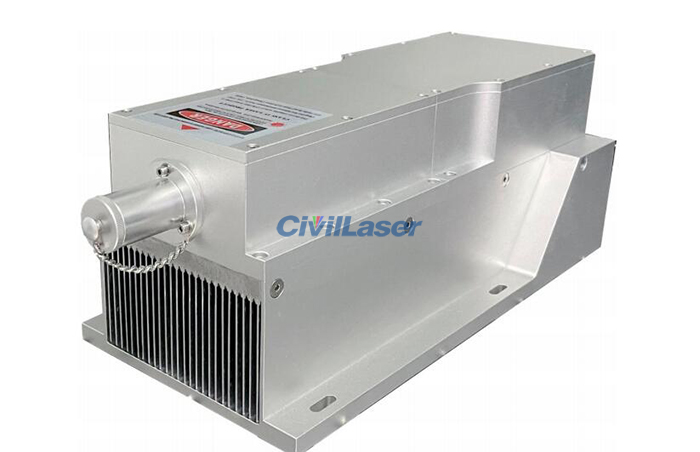

1 x 532nm laser head
1 x Power supply
