532nm Single Longitudinal Mode Laser Coherent Length 50m Spectral Linewidth 0.00001nm

532nm Single Longitudinal Mode Laser Coherent Length 50m Spectral Linewidth 0.00001nm

DPSS single longitudinal mode laser is made features of ultra compact, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics.

[Specifications]
Product Name: 532nm Single Longitudinal Mode Laser
Lead Time: 6~8 weeks.
Wavelength: 532±1nm
Output Power: 10W
Operating Mode: CW
Transverse Mode: TEM00
Longitudinal Mode: Single
Power Stability (rms, over 4 hours): <3%
Noise of Amplitude (rms, 20Hz~20MHz): <1%
Polarization Ratio: >100:1
M² Factor: <1.2
Beam Diameter at the Aperture (1/e²): <1.5 mm
Beam Divergence(Full Angle): <1.5 mrad
Spectral line width: <0.00001
Pointing Stability after Warm-up: <0.05 mrad

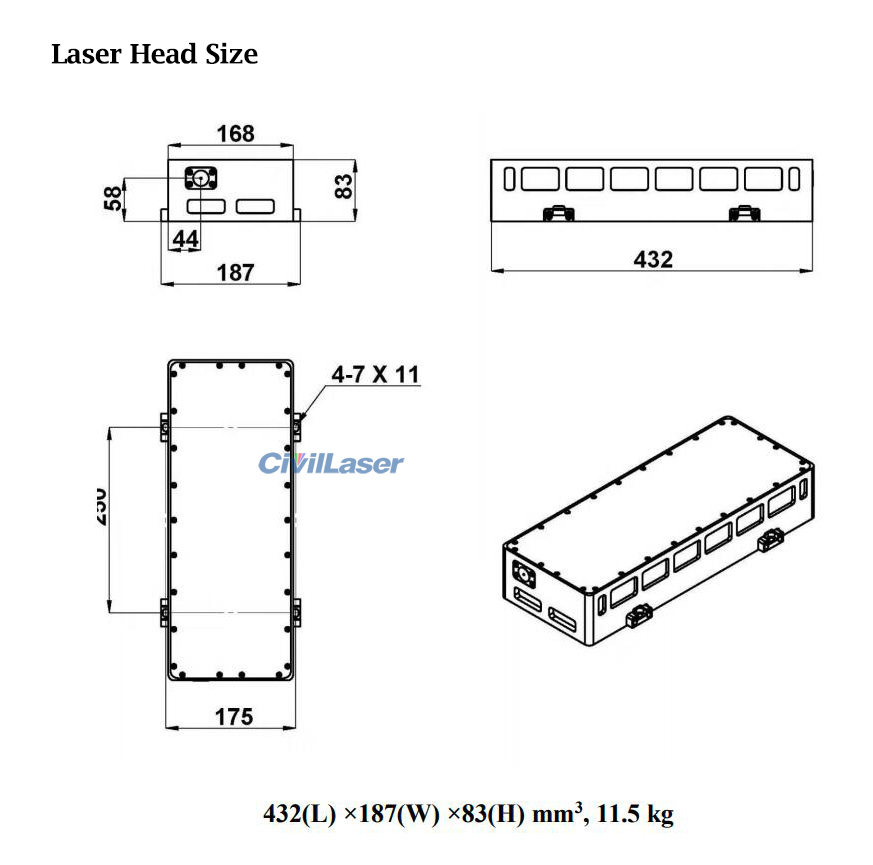

Beam Height from Base Plate: ~58 mm
Coherent Length: >50 m
Warm-up Time: <15 minutes

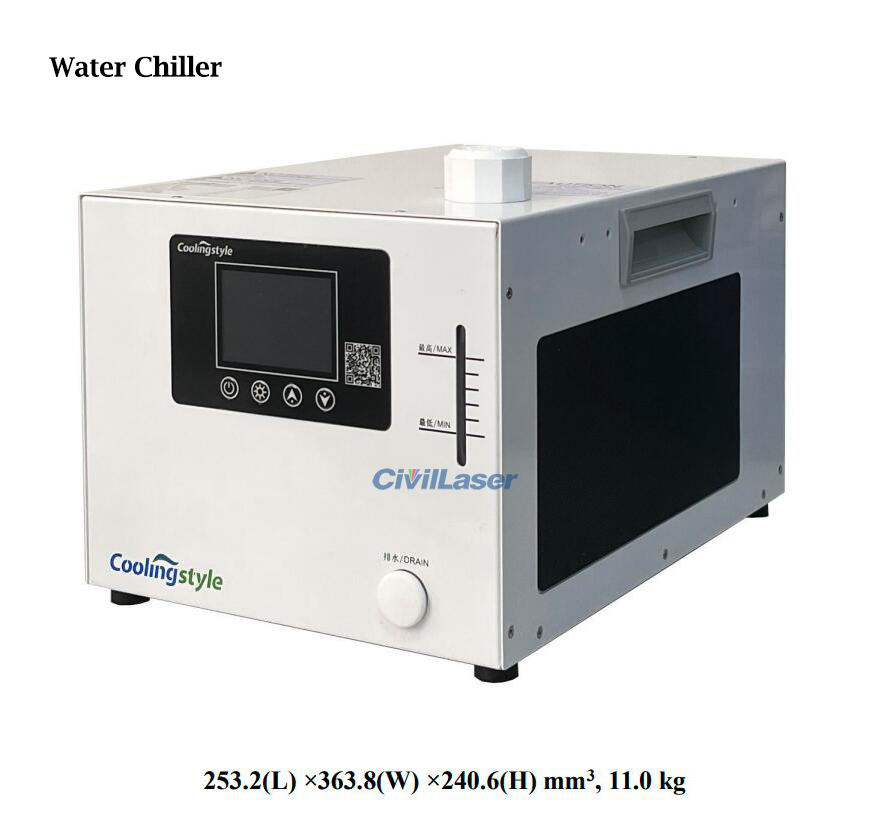

Cooled Method: Water cooled
Operating Temperature: 20~25℃
Expected Lifetime: 10000 hours
Warranty Period: 1 year
