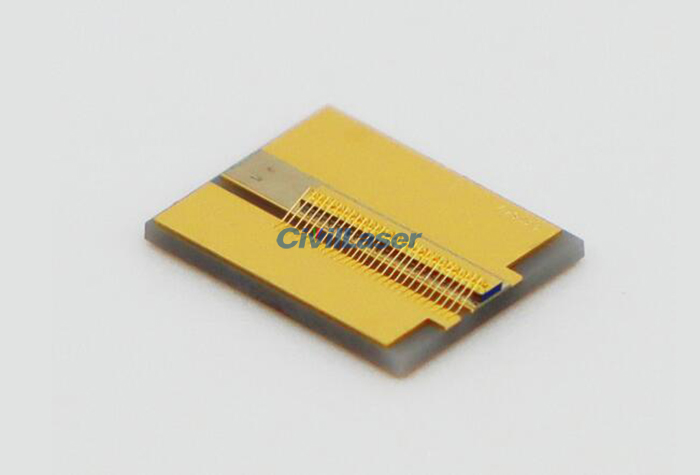

1550nm 3W Single Emitter COS(Chip on Submount) Laser Chip CW Laser 90μm Emitter Width 1550A-90-3-2-COS
[Features]
High laser power.
High efficiency.
Long lifetime, high reliability.
Excellent beam characteristics.
[Applications]
Medical & Cosmetics
BHP treatment
EVLT
Scientific Research
Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China
[Specifications]
|
Parameters
|
Symbol
|
Min.
|
Typ.①
|
Max.
|
Unit
|
|
Operation
|
|
Center wavelength
|
λ
|
|
1550
|
|
nm
|
|
Output power
|
Po
|
|
3
|
|
W
|
|
Operation mode
|
|
|
CW
|
|
|
|

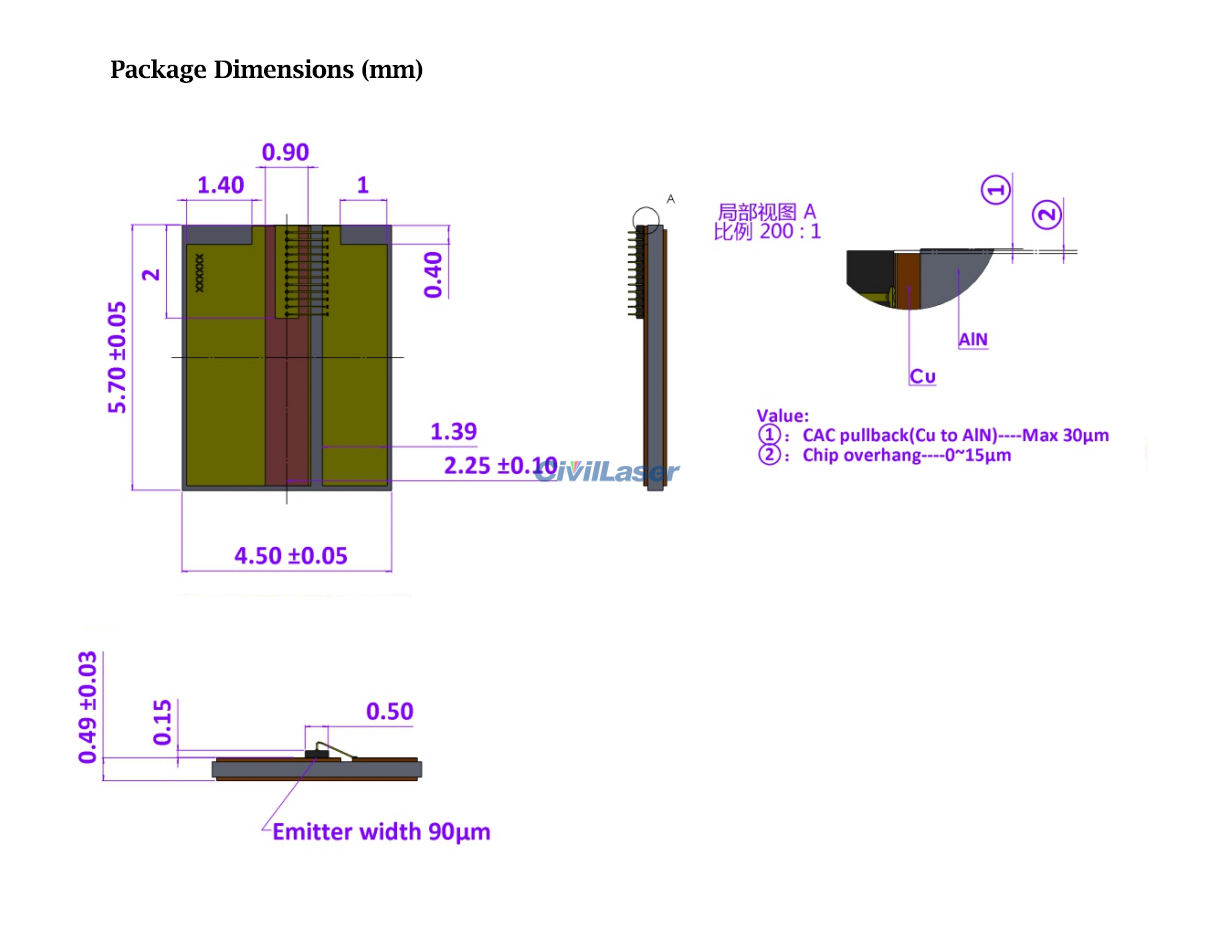

Geometrical
|
|
Emitter width
|
w
|
|
90
|
|
μm
|
|
Cavity length
|
L
|
|
2000
|
|
μm
|
|
Chip width
|
W
|
|
500
|
|
μm
|
|
Chip height
|
H
|
|
150
|
|
μm
|
|
Electro Optical Data
|
|
Threshold current
|
Ith
|
|
0.5
|
|
A
|
|
Operating current
|
Iop
|
|
7
|
|
A
|
|
Operating voltage
|
Vop
|
|
1.5
|
|
V
|
|
Slope efficiency
|
ηd=Po/(Iop - Ith）
|
|
0.4
|
|
W/A
|
|
Total conversion efficiency
|
η=Po/(Iop x Vop)
|
|
28
|
|
%
|
|
Slow axis divergence②
|
θ∥
|
|
10
|
|
degrees
|
|
Fast axis divergence③
|
θ⊥
|
|
36
|
|
degrees
|
|
Spectral width③
|
△λ
|
|
10
|
|
nm
|
|
Polarization
|
|
|
TE
|
|
|
|
①. According to the single-tube chip test data. When testing a single-tube chip, it is packaged in COS (Chip On Submount), and the COS test temperature is 25°C.
②. Full width at 95 % power content.
③. FWHM(Full width half maximum).
|
