447nm 100mW Blue Laser Diode Module Fiber Output with Collimator

447nm 100mW Blue Laser Diode Module Fiber Output with Collimator

[Features]
◆ The output wavelength range of fiber coupled laser is 400-1100nm, with small volume, light weight, high detection resolution, high sensitivity, good confidentiality, strong electromagnetic interference resistance and corrosion resistance;
◆ Due to its flexible characteristics, the optical fiber can make the laser transmitter move flexibly and freely, making it more convenient to use;
◆ The optical fiber can shape the laser beam to make the beam mode better, and can also integrate several laser beams to improve the laser power;

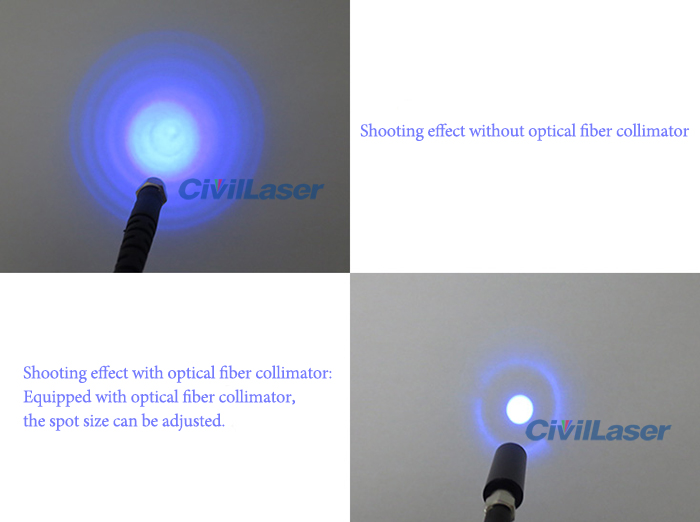

◆ Equipped with optical fiber collimator, the light spot can be smaller to meet your different use requirements;
◆ The shell is aviation aluminum plated insulating paint, which can not only fully dissipate heat, but also be shockproof, fall proof and anti-static;
◆ The laser diode imported from Germany emits light directly, with high stability;
◆ The intelligent drive board with imported IC can supply power in a wide range (other voltages can be customized);
◆ High temperature and corrosion resistant DC plug cable, suitable for all-weather and all-environment use.

[Specification]
Product Name: Fiber coupled laser module
Wavelength: 447nm
LD Power: 100mW
Fiber output Power: About 30mW
Spot Shape: Speckle dot
Optical Lens: Optical coated glass lens
Fiber Type: Multi-mode fiber
Fiber Diameter: 100μm
Fiber Interface: SMA
Fiber Length: 1m
Operating Voltage: DC 5~12V
Operating Current: <500mA
Size: Φ20*60mm
Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃

[Package Include]
1 x Laser module
1 x Optical fiber
1 x Power supply
1 x Module bracket
1 x Collimator (choose)
