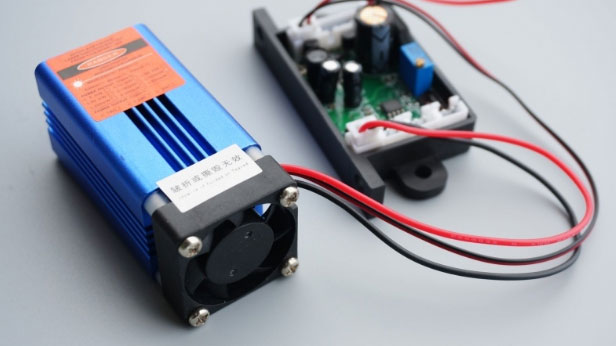

200mW 660nm Red Laser module with TTL modulation 12V dot/line/crosshair

Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.

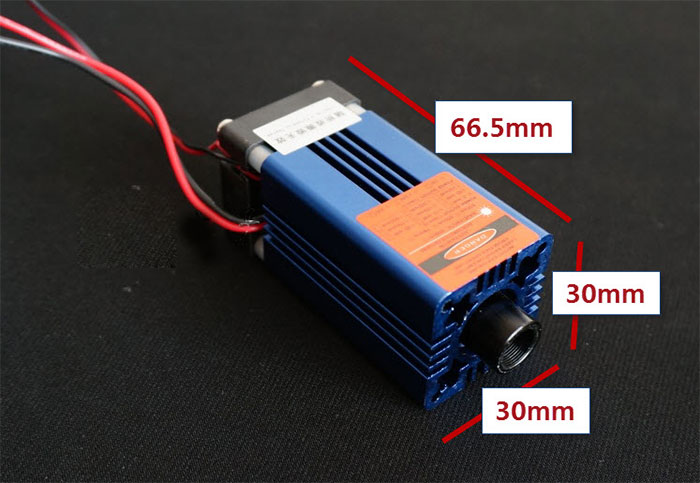

Host size:  L66.5mm* W30mm* H30mm

Circuit size:  L72mm* W35.5mm* H20mm

Output wavelength: 658 NM

Output power: 100mW/200mW (optional)

Cooling mode: aluminum cooling

Modulation frequency: Can modulate

Job characteristics: continuous work

Surface treatment: Blue

Shell material: Aluminum

Circuit control: 12V buck constant current

Reverse protection: with automatic recognition of positive and negative poles

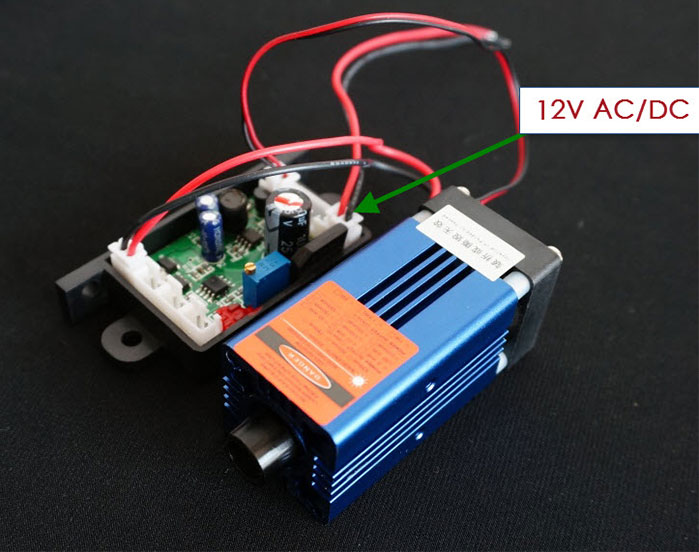

Working voltage: DC=12V

Working current: I<300mA

Preheating time: no

Working temperature: -10°C~ 40°C

Storage temperature: -10°C~ 40°C

Structure features: laser tube + lens + heat sink

Note: power supply out of the housing
