405nm 200mW Blue-violet Pigtailed Laser Diode 4μm SM Fiber

405nm 200mW Blue-violet Pigtailed Laser Diode 4μm SM Fiber

[Features]
◆ The optical fiber can shape the laser beam to make the beam mode better, and can also integrate several laser beams to improve the laser power;
◆ Supporting optical fiber collimator, can adjust the size of the spot at will, to meet your different use requirements;
◆ The shell is aviation aluminum plated insulation paint, which can not only fully dissipate heat, but also be shock-proof, anti-drop and anti-static;
◆ Germany imported laser diode direct light, the stability is particularly high;
◆ Intelligent drive board with imported IC, can provide power supply in a wide range (other voltages can be customized);
◆ High temperature resistance, corrosion resistance DC plug line, suitable for all-weather use in the whole environment.

[Specification]
Product Name: Fiber coupled laser module
Wavelength: 405nm
LD Power: 200mW
Fiber output Power: About 60mW

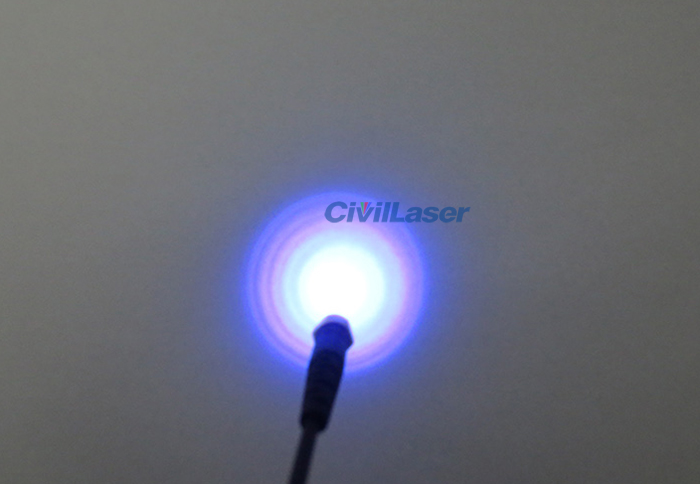

Laser Shape: Dot
Divergence Angle: 0.1mrad~0.5mrad
Optical Lens: Optical coated glass lens
Fiber Type: Single-mode fiber
Fiber Diameter: 4μm
Fiber Interface: FC/PC
Fiber Length: 0.5m
Operating Voltage: DC 4.8~5.2V
Operating Current: <500mA
Size: Φ16*90mm (Customizable)
Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃

[Package Include]
1 x Laser module
1 x Optical fiber
1 x Collimator
1 x Power supply
1 x Module bracket
