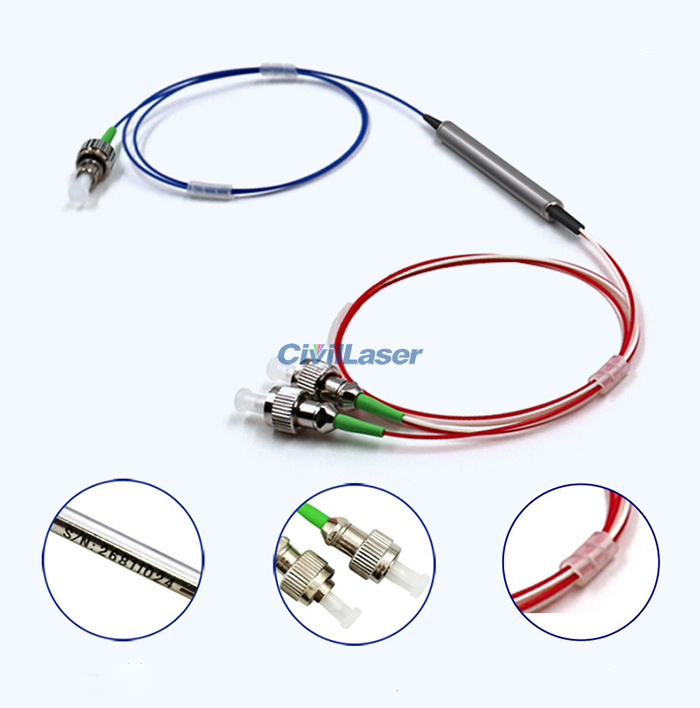

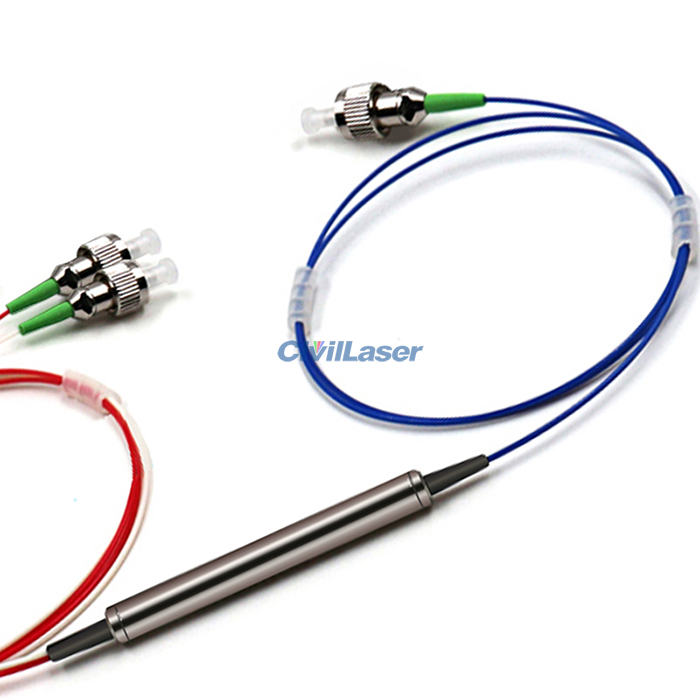

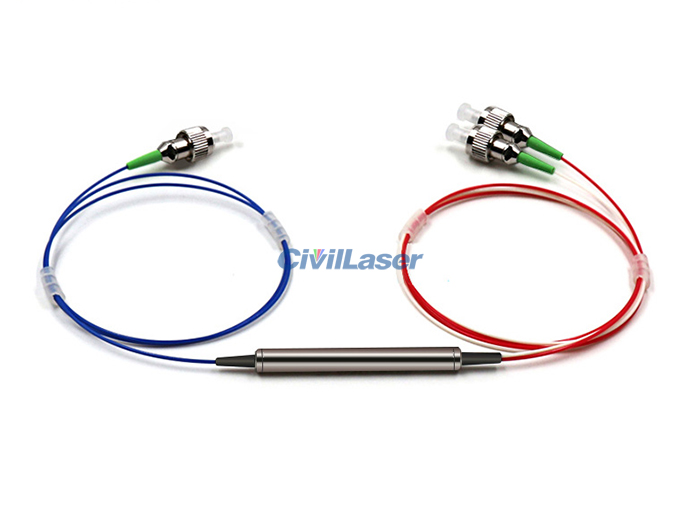

1064nm Three-port Fiber Optic Circulator FC/APC Fiber Steel Tube Package Customizable

1064nm Three-port Fiber Optic Circulator FC/APC Fiber Steel Tube Package Customizable

The 1064nm three-port fiber optic circulator is a multi-port non-reciprocal optical device where light can only travel in one direction. If the signal is input from port 1, it will be output from port 2; and if the signal is input from port 2, it will be output from port 3, and its output loss is very small; when light is input from port 2, the loss from port 1 is very large. Similarly, when light is input from port 3, the loss is also large when output from ports 1 and 2. Mingchuang Optoelectronics can produce three-port, four-port, different power, different wavelength fiber circulators, products are widely used in fiber lasers, add-drop multiplexers, bidirectional pump systems, dispersion compensation devices, fiber sensing, scientific research, etc. field.

3-Port Independent Fiber Circulator
Polarization-insensitive fiber circulator adopts patented design and metal-bonded micro-optical package. It has low insertion loss, broadband high isolation, low PDL, excellent temperature stability and can be used for wavelength addition/subtraction, dispersion compensation and EDFA applications.

[Features]
Low insertion loss
High return loss
Good interchangeability
Good isolation effect
Good repeatability
Excellent temperature stability

[Specifications]
