OSRAM 80mW 520nm Green Grass Green Laser Diodes PLT5 520B TO56 Package

OSRAM 80mW 520nm Green Grass Green Laser Diodes PLT5 520B TO56 Package

Brand introduction:

German lighting expert --- OSRAM (OSRAM), is an important member of the German SIEMENS (SIEMENS) group, one of the world's two largest electric light source manufacturers.

OSRAM with its excellent light source products known to the world. It has 49 production bases in 18 countries in the world, and the products are sold to more than 140 countries.

OSRAM China has a number of foreign experts and Chinese light source elite, the common design of high-quality light products, diligently to open up new areas of light

As many as 5000 varieties of light source and lighting system of OSRAM, with the most advanced lighting technology for modern life, leading fashion lighting.

The company's products include: fluorescent lamp, compact fluorescent lamp, high intensity gas discharge lamp, halogen lamp, automobile lamp, motorcycle lamp, display optical light source, electronic ballast and light emitting diode.

[Features]
1. Typical emission wavelength: 520 nm
2. Efficient radiation source for CW and pulsed operation.
3. Single mode semiconductor laser.
4. High modulation bandwidth.

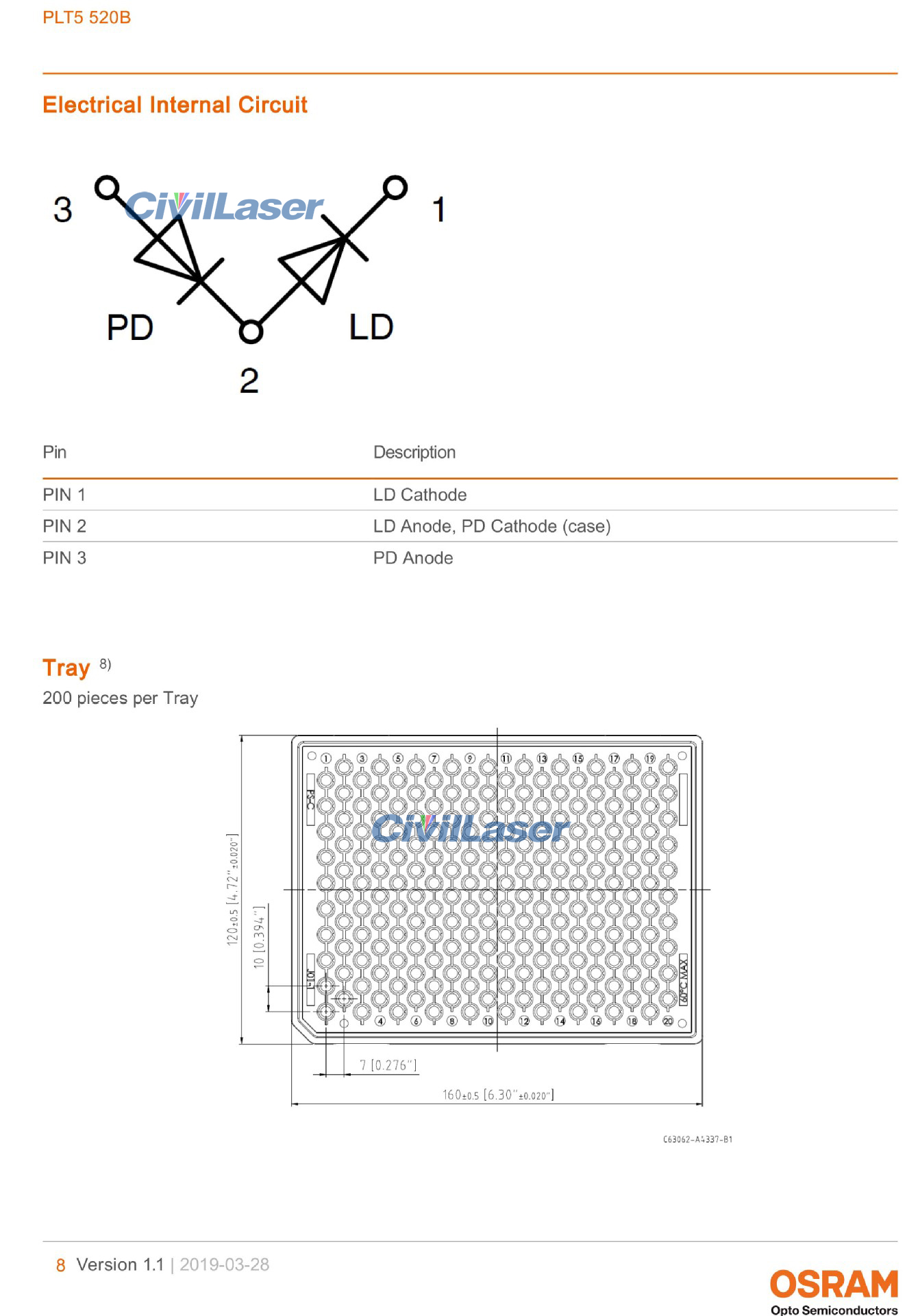

5. TO56 package with photo diode.

[Applications]
1. Health Monitoring (Heart Rate Monitoring, Pulse Oximetry)
2. Measurement Levelling
3. Projection Home LED & Laser
4. Projection Professional LED & Laser

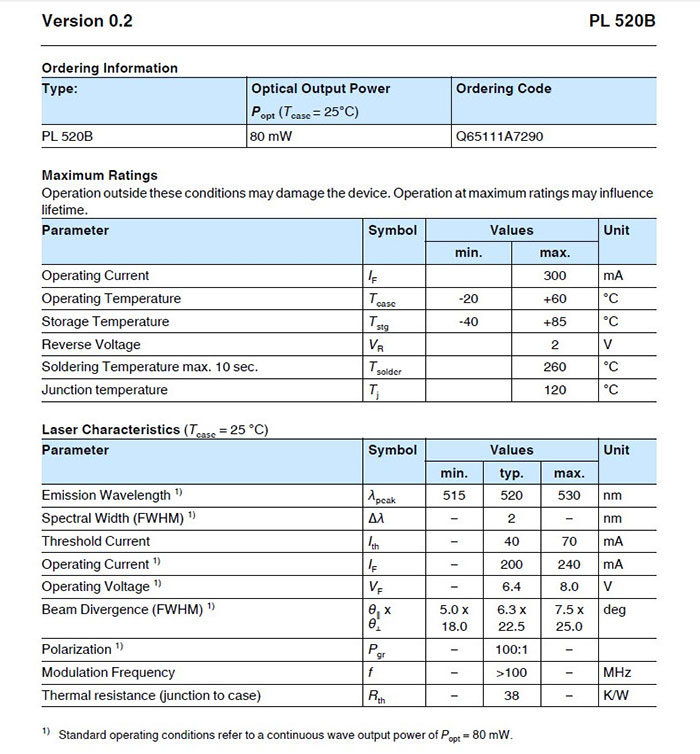

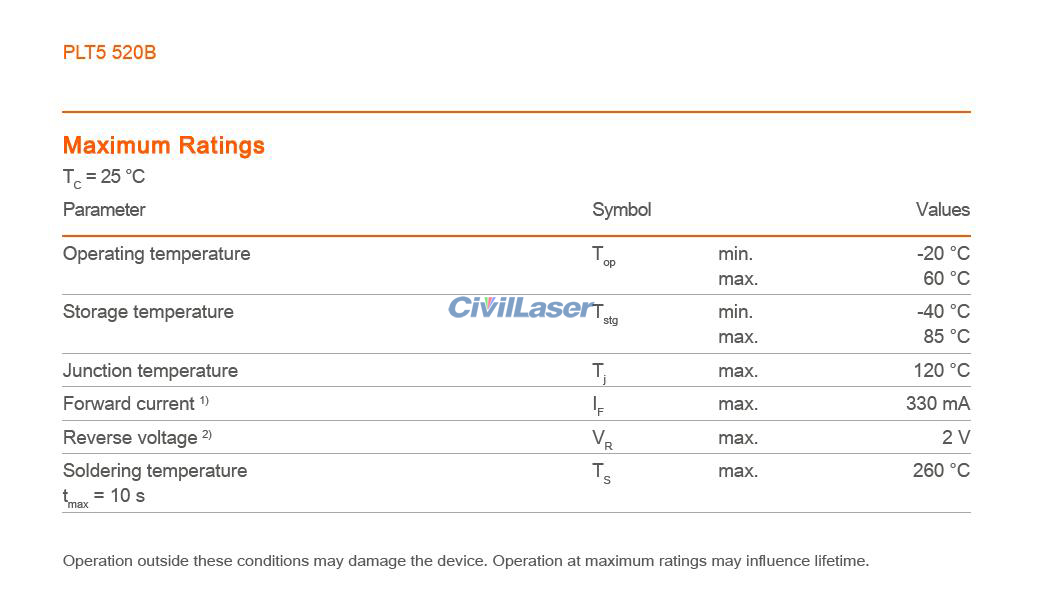

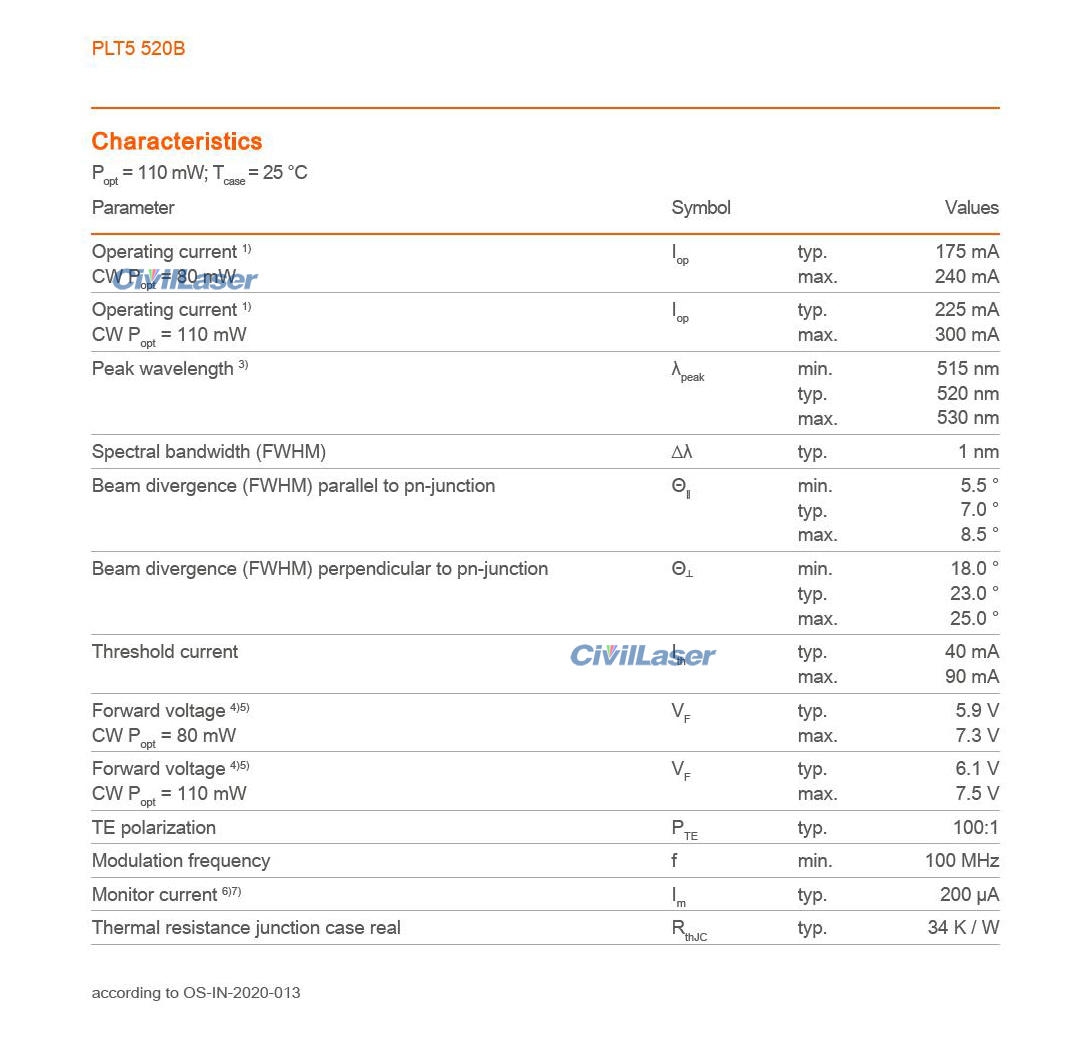

[Specification]
Product Name: Laser diode
Model: PLT5 520B
Wavelength: 520nm
Output Power: 80mW
Reverse Voltage: 2V

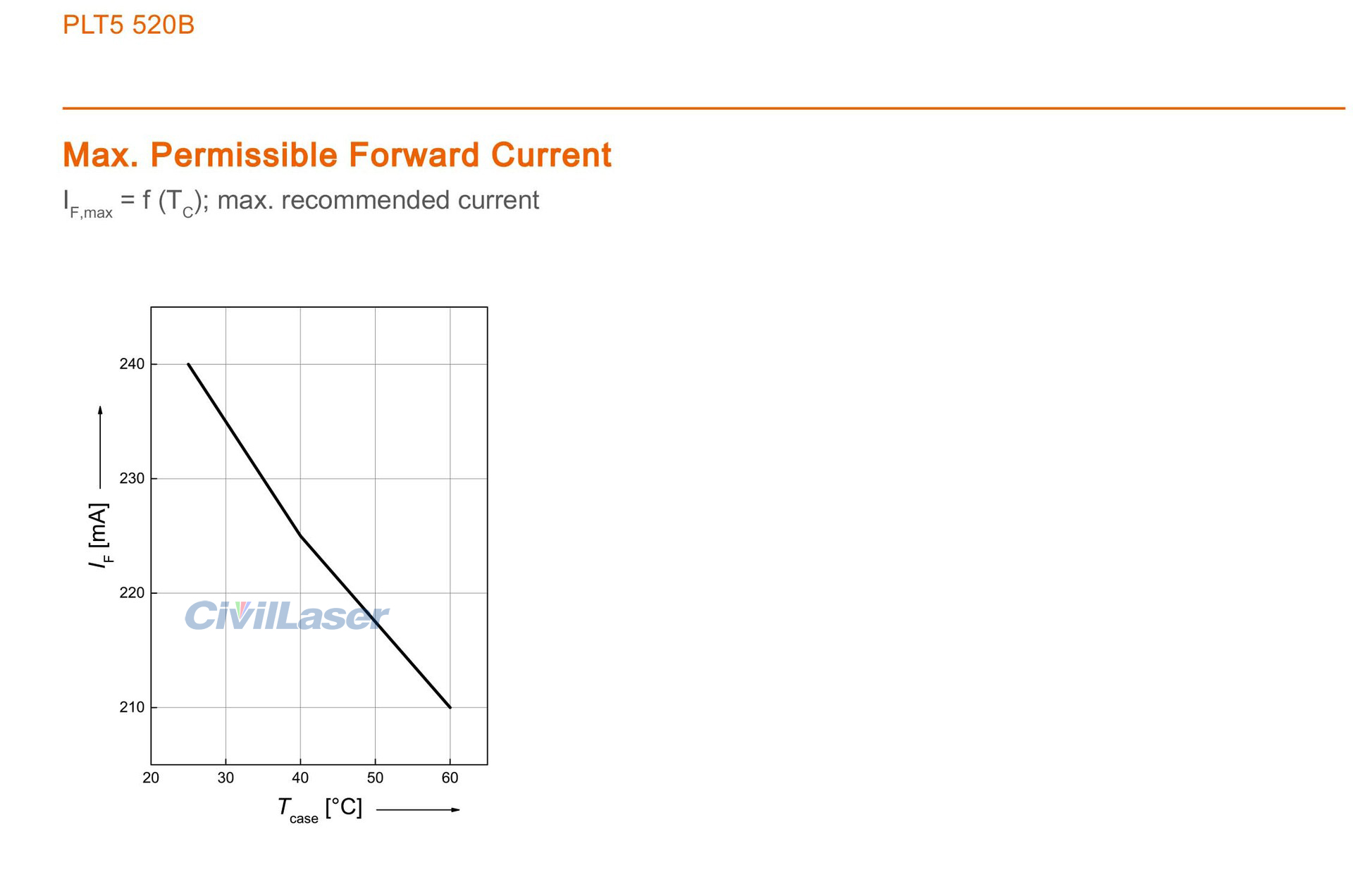

Forward Current: 330mA
Forward Voltage：5.9V

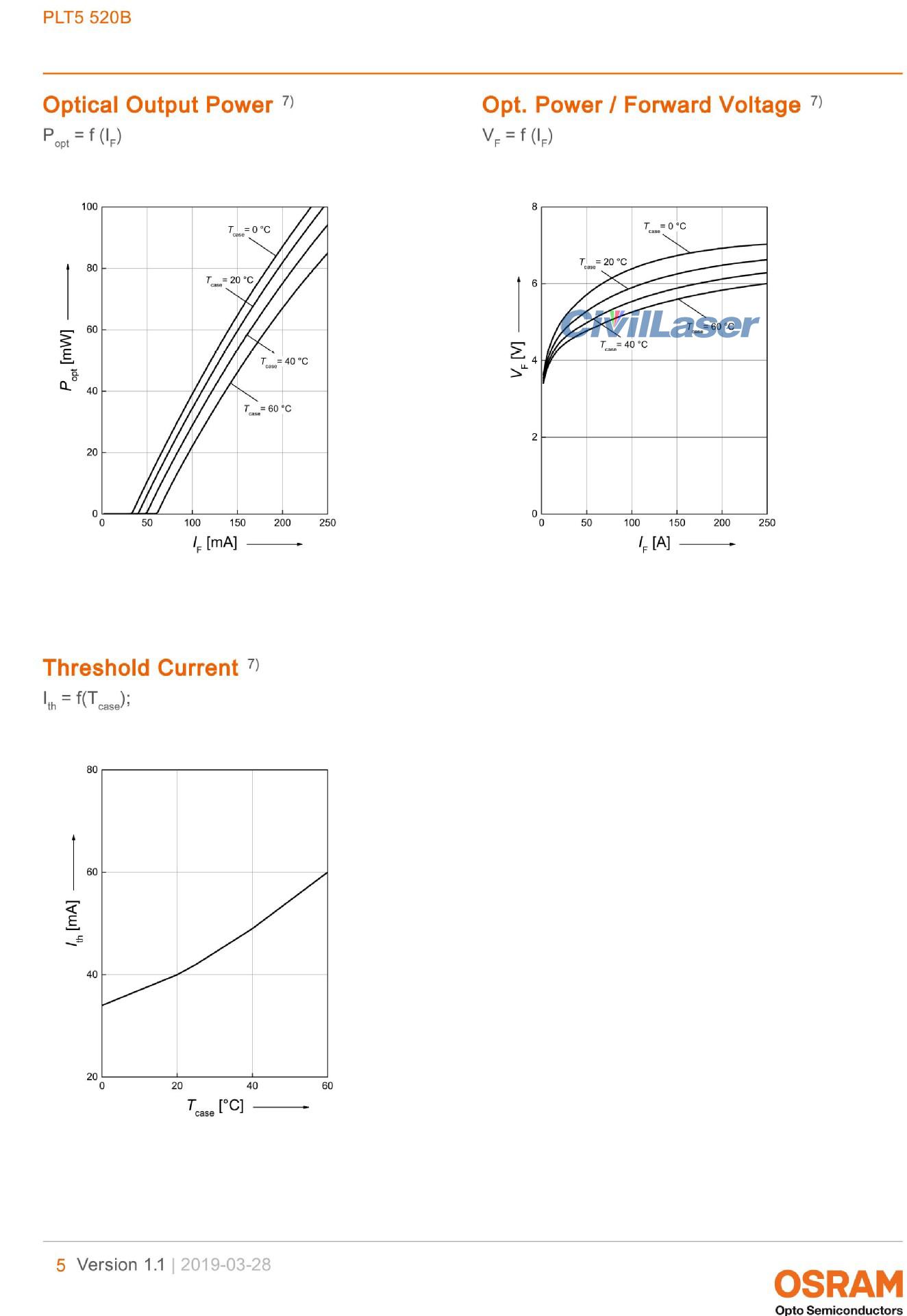

Threshold Current: 40mA
Operating Current: 175mA
Operating Voltage: 5.5V

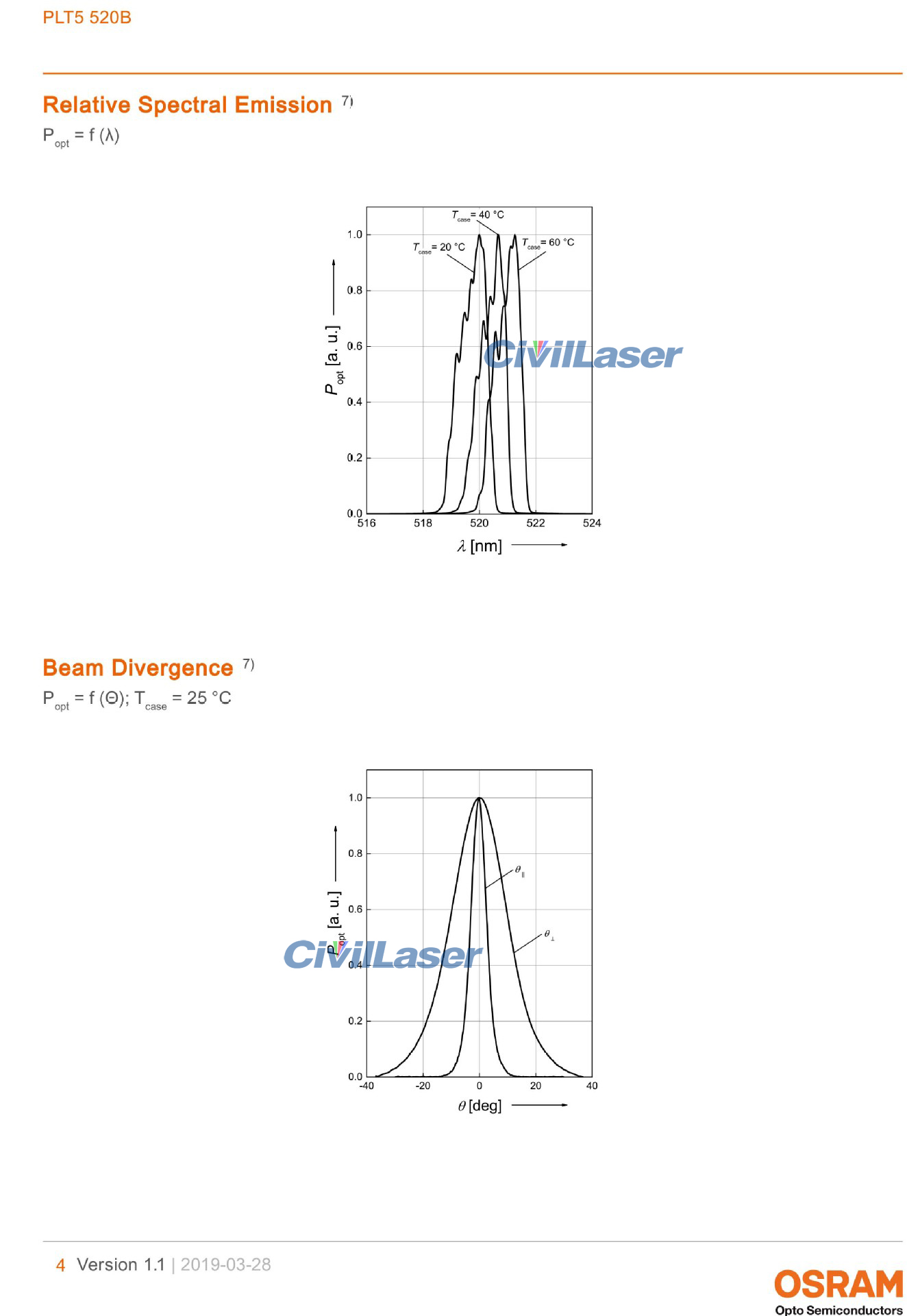

Spectral Bandwidth: 1nm
Modulation Frequency: 100MHz

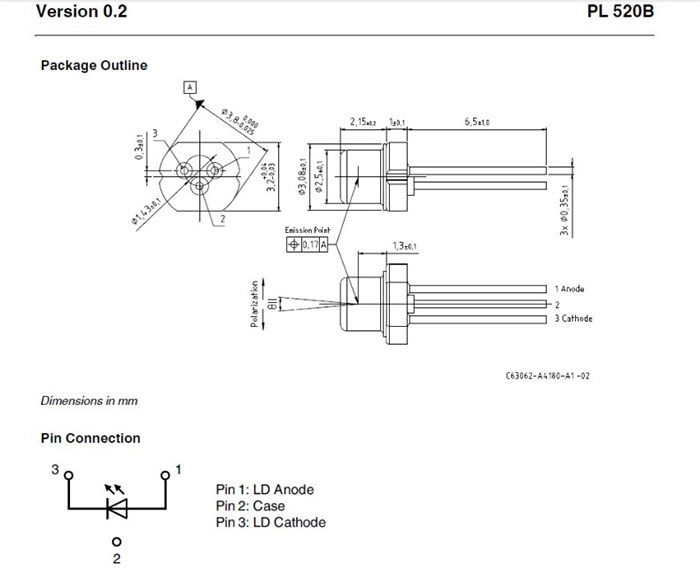

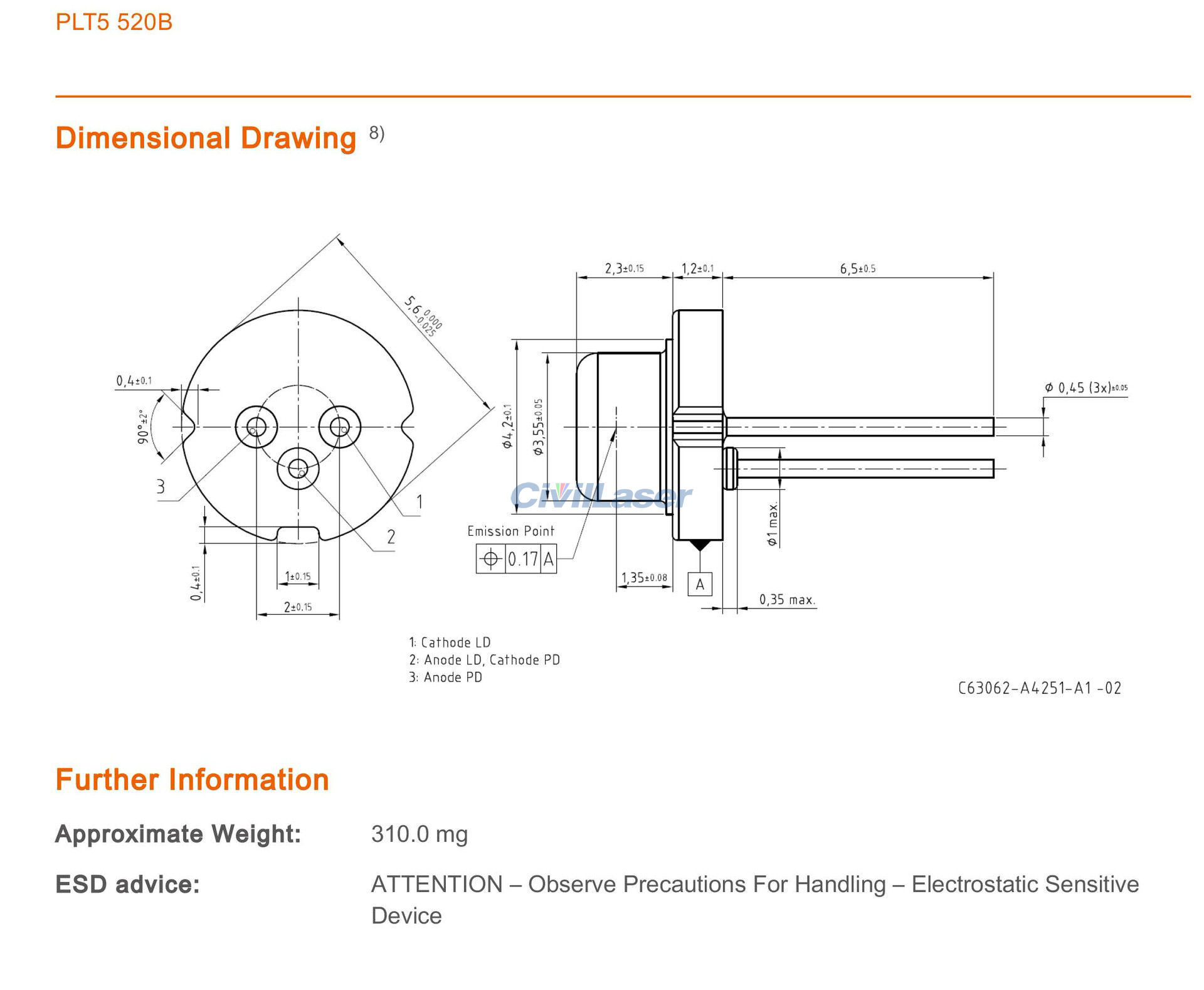

Package: TO56
Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃
