U-LD-80C051Ap 808nm 300mW Infrared Laser Diode Union LD TO-5.6mm Package

U-LD-80C051Ap 808nm 300mW Infrared Laser Diode Union LD TO-5.6mm Package

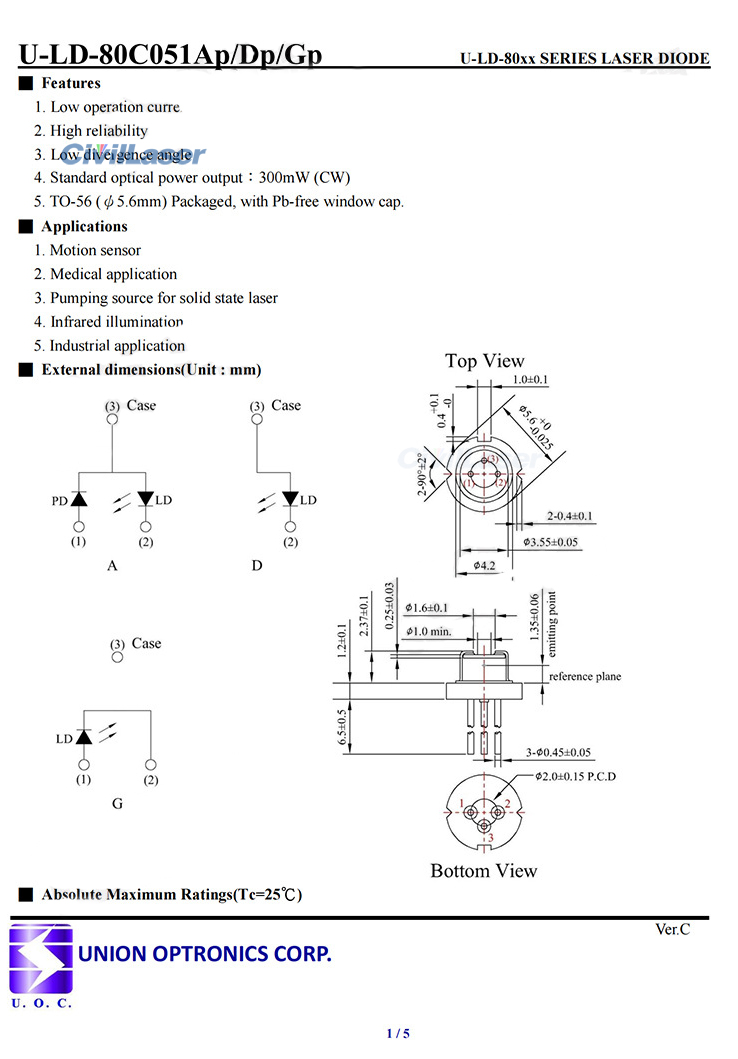

[Features]
1. Low operation current
2. High reliability
3. Low divergence angle
4. Standard optical power output：300mW (CW)
5. TO-56 (ψ5.6mm) Packaged, with Pb-free window cap.

[Applications]
1. Motion sensor
2. Medical application
3. Pumping source for solid state laser
4. Infrared illumination
5. Industrial application

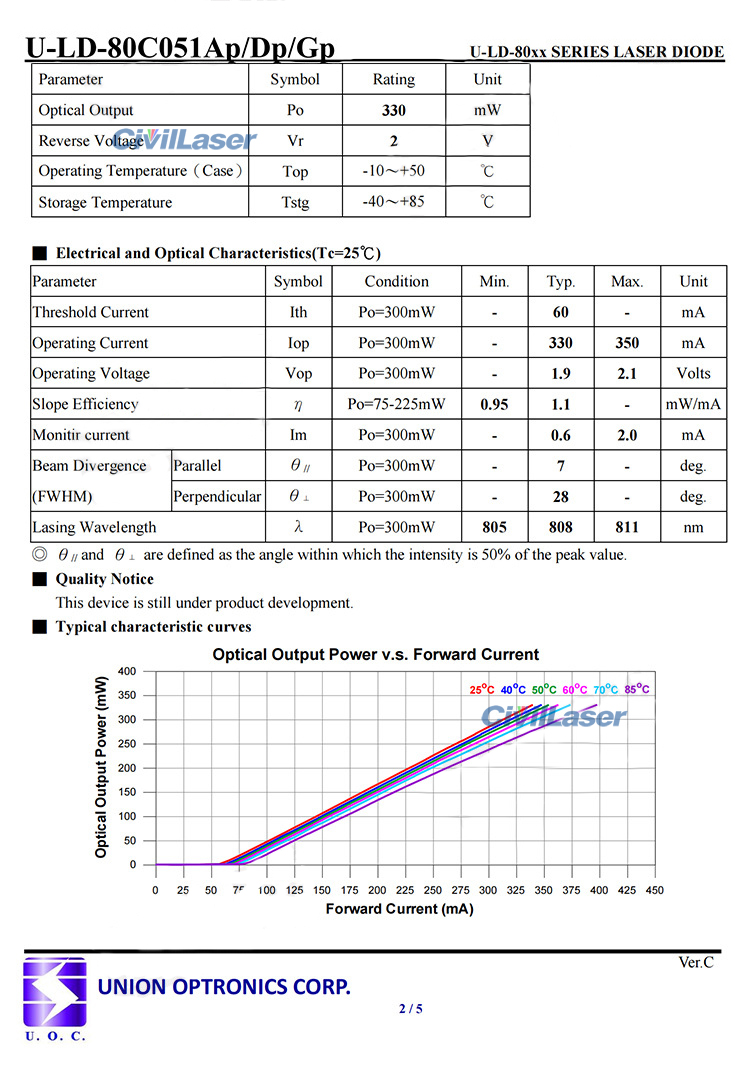

[Specification]
Product Name: Laser diode
Model: U-LD-80C051Ap
Wavelength: 808±3nm
Output Power: 300mW
Package:  TO-56 (ψ5.6mm)
Operating Temperature: -10~+50℃
Storage Temperature: -40~+85℃
